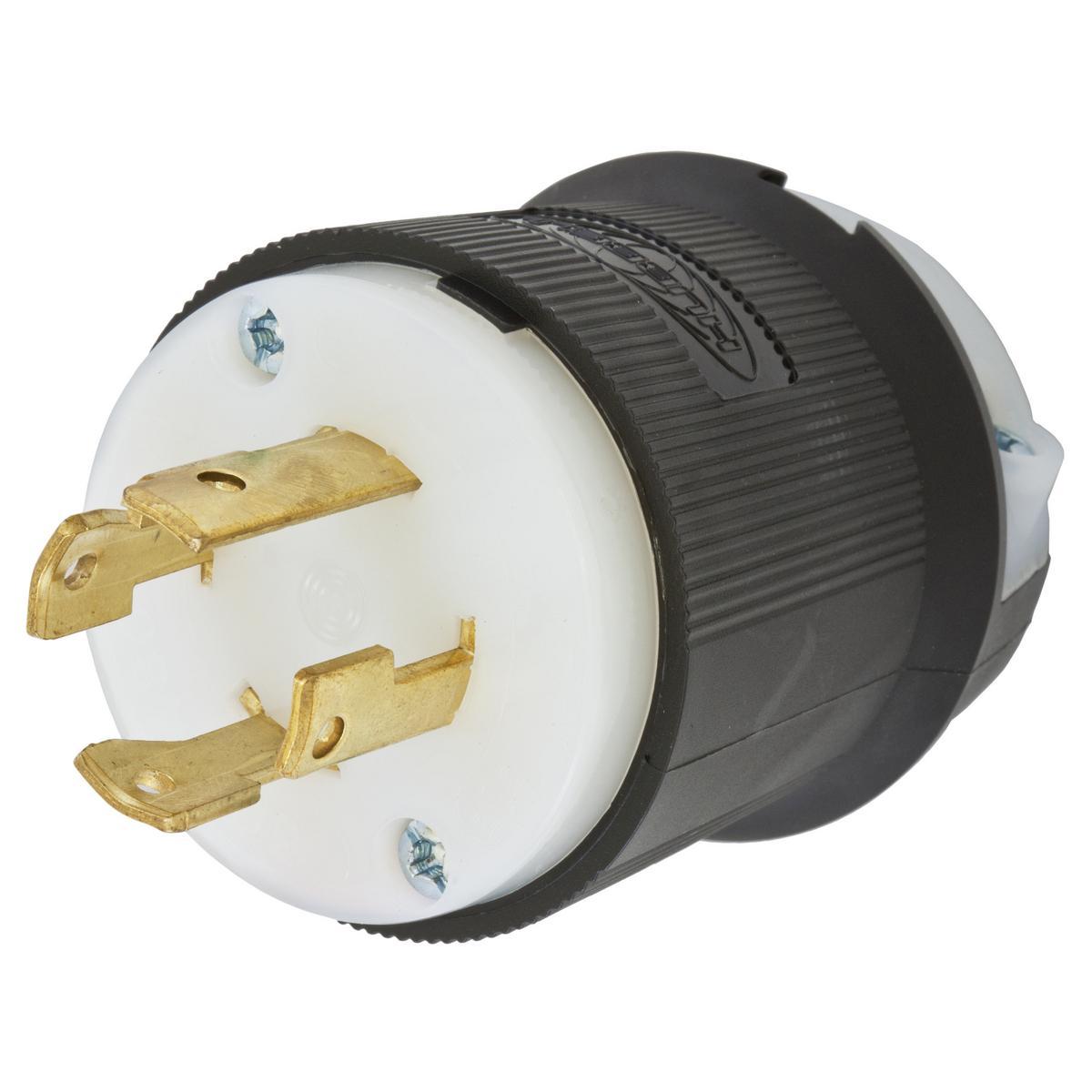

Wiring Device-Kellems HBL2731

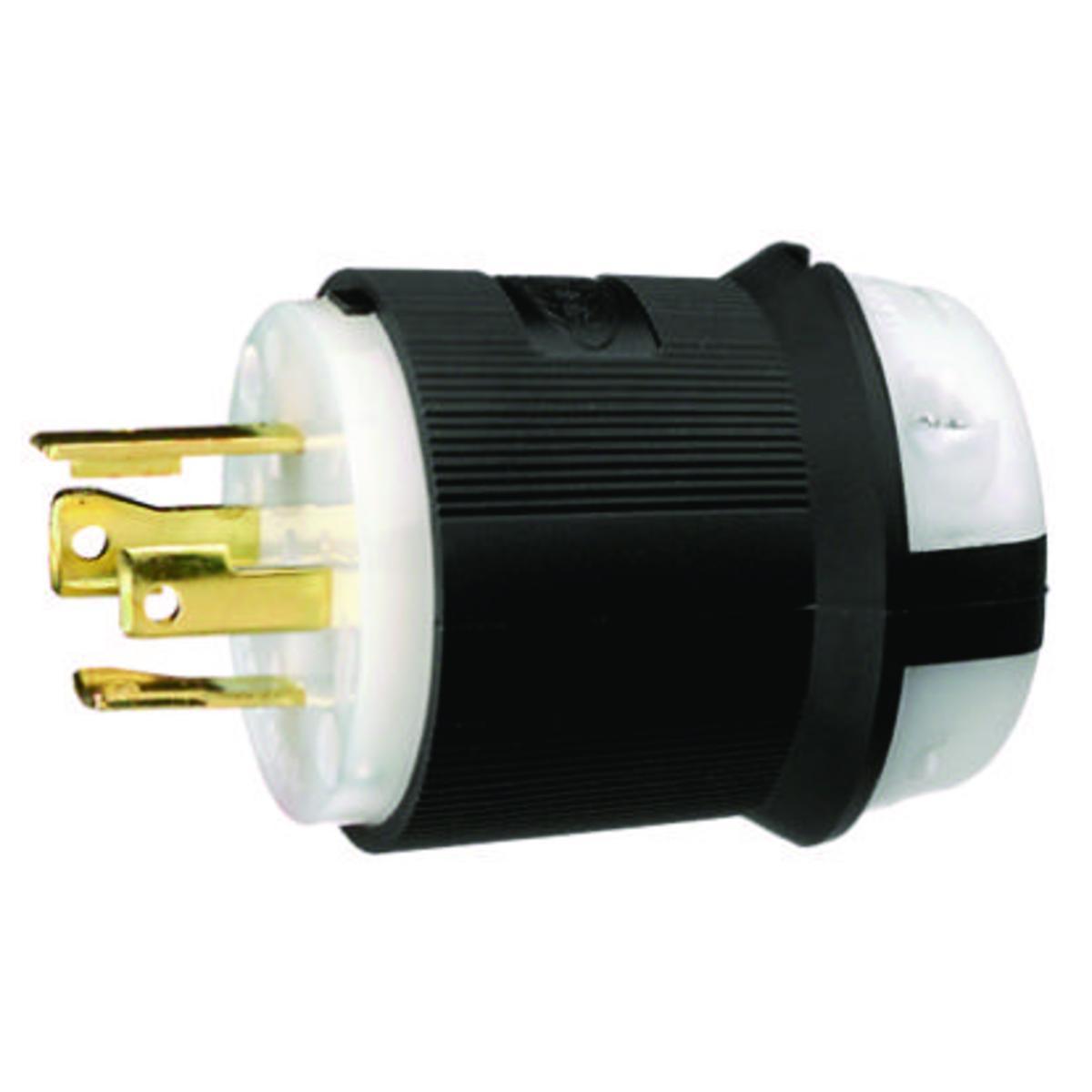

Wiring Device-Kellems HBL2731 HBL® 3-Phase Grounding Cord Mount Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2731
- Brand Name: Wiring Device-Kellems
- UPC: 783585039312
- FEPN: HBL2731 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.
Wiring Device-Kellems, HBL2731, Locking Plug, 3-Phase Grounding Cord Mount, Series: HBL®, 480 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.33 x 2.33 x 2.75 in Dimensions
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.33 x 2.33 x 2.75 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 10 hp |
| Material | : | Nylon |
| NEMA Rating | : | L16-30P |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Grounding Cord Mount |
| Voltage Rating | : | 480 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/White |
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
