Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor. These adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

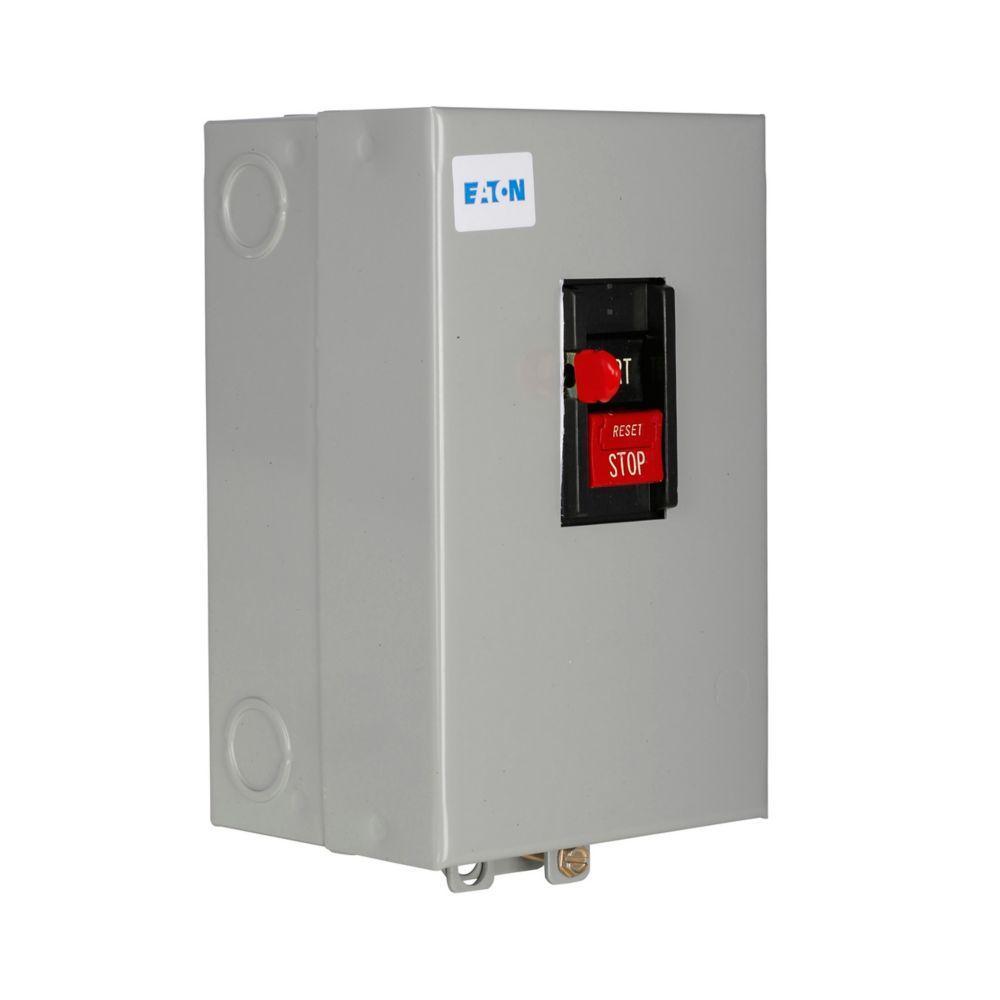

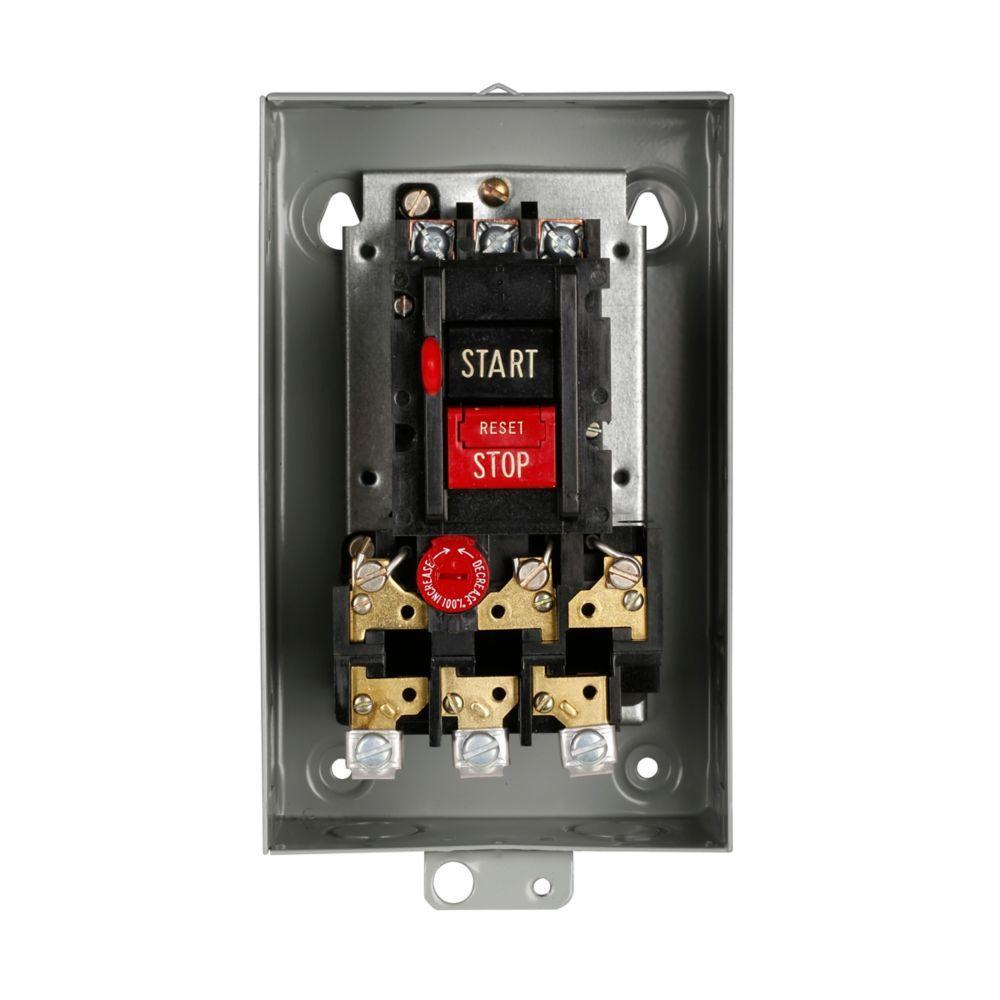

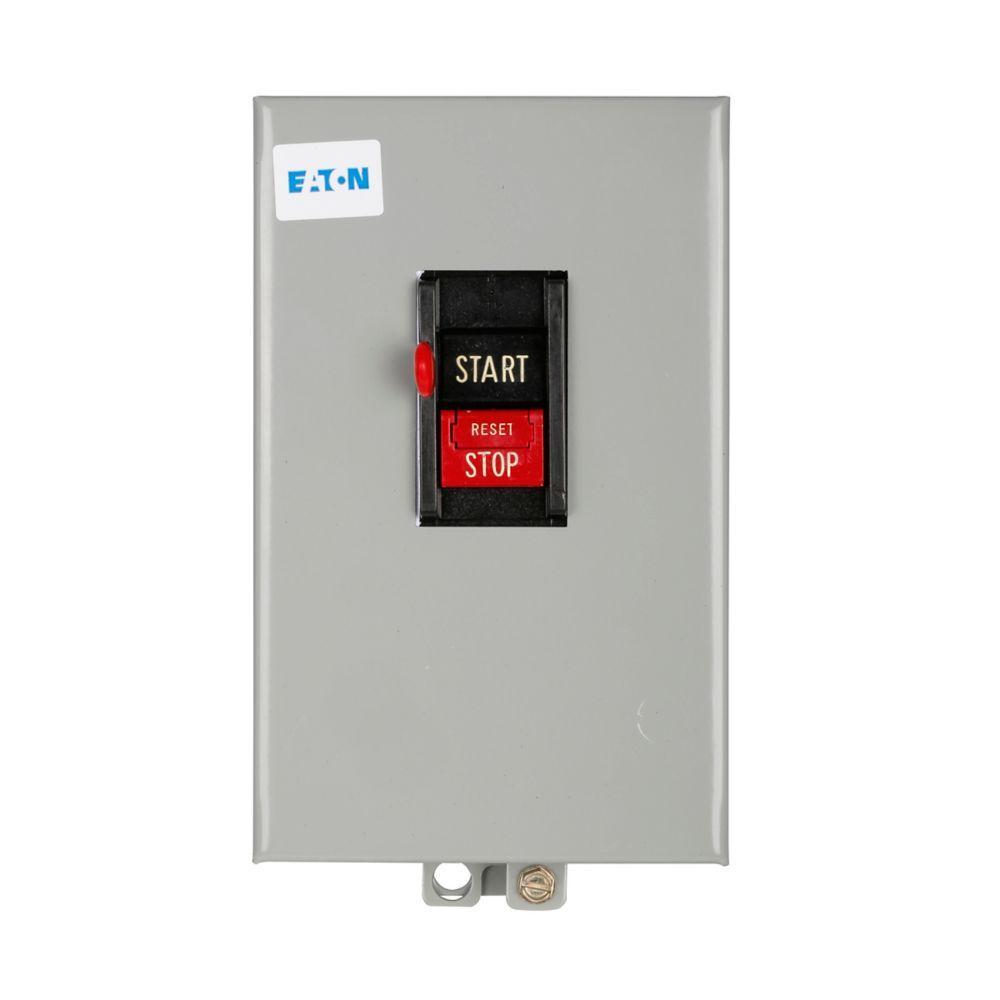

EATON Manual Starter, Enclosed Operated General Purpose Non-Reversing, 600 VAC, 26 A, 3 Pole, 1/3 ph, Bi-Metal Overload Relay, Pushbutton Control, NEMA 1/M-0 Enclosure, 4.72 x 4.98 x 7.59 in Dimensions
| Amperage Rating | : | 26 A |
| Control Type | : | Pushbutton |
| Dimensions | : | 4.72 x 4.98 x 7.59 in |
| Overload Relay | : | Bi-Metal |
| Phase | : | 1/3 |
| Voltage Rating | : | 600 VAC |
| Type | : | Enclosed Operated General Purpose Non-Reversing |
| Number of Poles | : | 3 |
| Enclosure Type | : | NEMA 1/M-0 |
- For SZ M-0, pushbutton operator polyphase motors
- Without heater
Specification Sheet
