Sta-Kon® RB647-200
Send Print
  1. pin-int

Sta-Kon® RB647-200

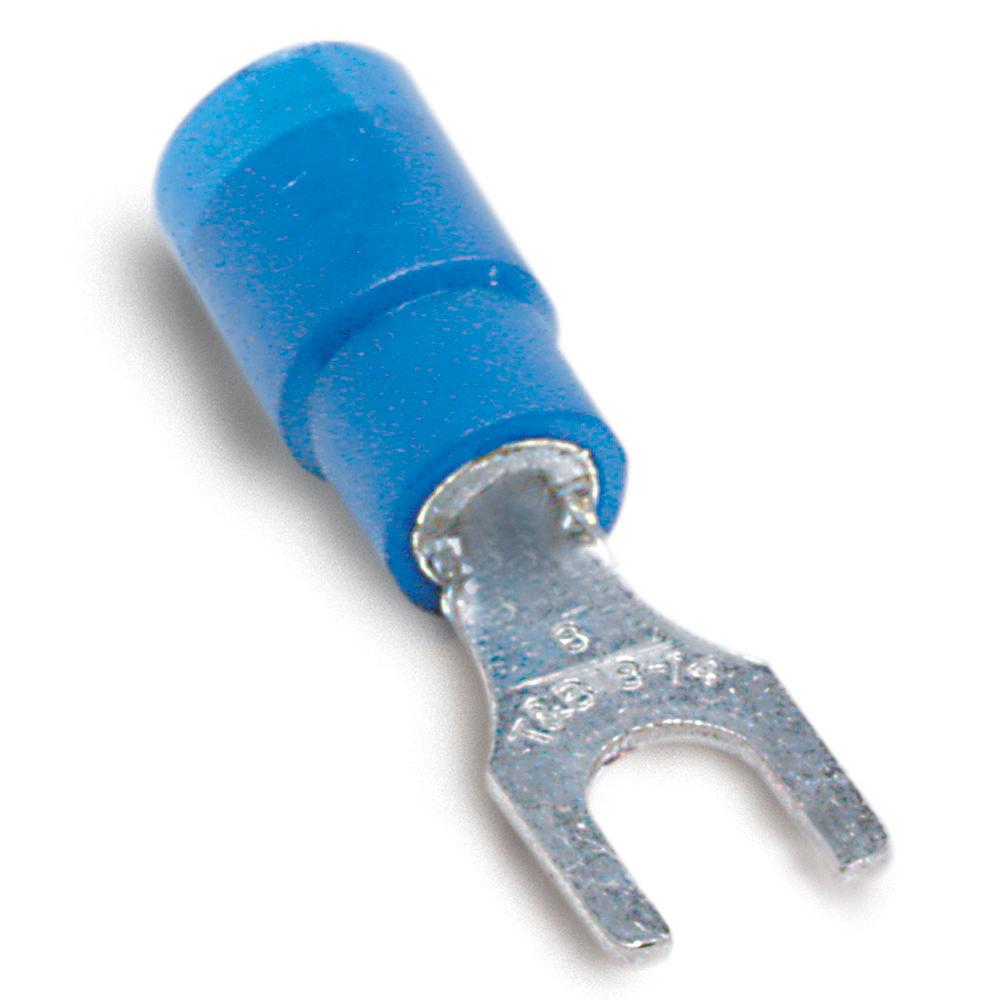

Sta-Kon® RB647-200 Fork Terminal, 18 to 14 AWG Conductor, 0.97 in L, Brazed Seam Barrel, Copper

  • Manufacturer Name: ABB
  • MPN: RB647-200
  • Brand Name: Sta-Kon®
  • UPC: 786210818337
  • FEPN: RB647-200 TB
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Sta-Kon® Fork Terminal, 18 to 14 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam Barrel, 0.31 in W Tongue, 600 V, 0.2 in Maximum Insulation, 105 deg C, Copper, TiN Coated

Finish       :      TiN Coated
Specifications       :      0.2 in Maximum Insulation
Stud Size       :      #6
Temperature Rating       :      105 deg C
Tongue Size       :      0.31 in W
Voltage Rating       :      600 V
Conductor Size       :      18 to 14 AWG
Length       :      0.97 in
Barrel Type       :      Brazed Seam
Material       :      Copper
  • Fork terminals allow easy installation since the mounting screw does not have to be completely removed
  • These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation
  • Blue vinyl insulated
