Panduit® PN18-6R-C

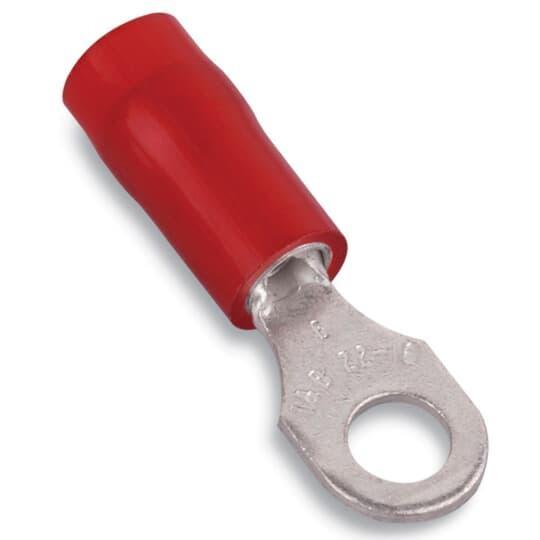

Panduit® Pan-Term™ PN18-6R-C Type PN-R Reel Ring Terminal, 18 AWG Conductor, 0.79 in L, Insulation Grip Sleeve/Standard Barrel, Copper, Red
- Manufacturer Name: Panduit
- MPN: PN18-6R-C
- Brand Name: Panduit®
- UPC: 074983800025
- FEPN: PN18-6R-C PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term™ Ring Terminal, Type PN-R Reel, Solid/Stranded Conductor, 18 AWG Conductor, #6 Stud, 0.79 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.145 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 0.22 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
| Conductor Type | : | Solid/Stranded |
| Finish | : | Tin Plated |
| Specifications | : | 0.145 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 0.22 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure |
| Stud Size | : | #6 |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.25 in W x 0.03 in THK |
| Tongue Type | : | Ring |
| Type | : | Type PN-R Reel |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 18 AWG |
| Length | : | 0.79 in |
| Barrel Type | : | Insulation Grip Sleeve/Standard |
| Material | : | Copper |
| Color | : | Red |
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
