EATON's lighting contactors are designed to provide a safe, convenient means for local or remote switching of tungsten (incandescent filament) or ballast (fluorescent and mercury arc) lamp loads. They are also suitable for other loads such as low pressure and high pressure sodium lamp loads and other non-motor (resistive) loads. They are not recommended for most sign flashing loads. These lighting contactors are designed to withstand the large initial inrush currents of tungsten lamp loads without contact welding. They are fully rated and do not require derating.

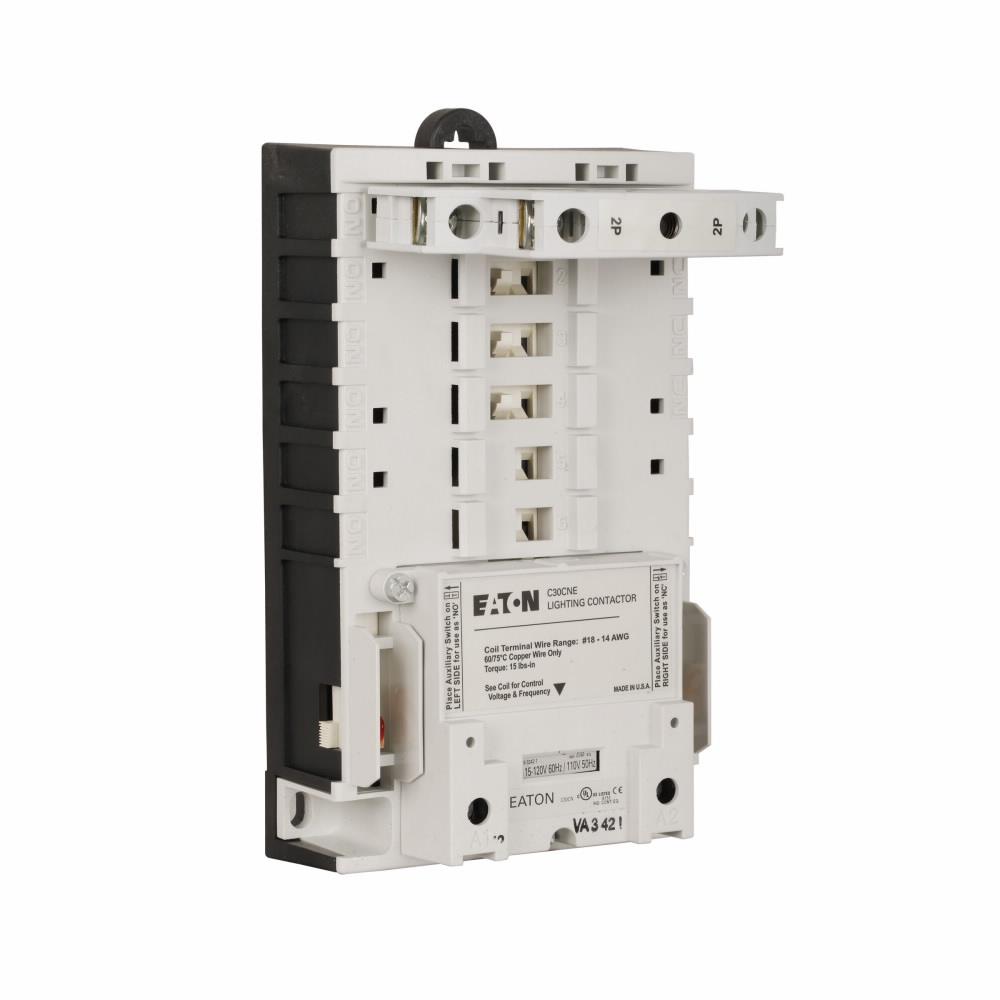

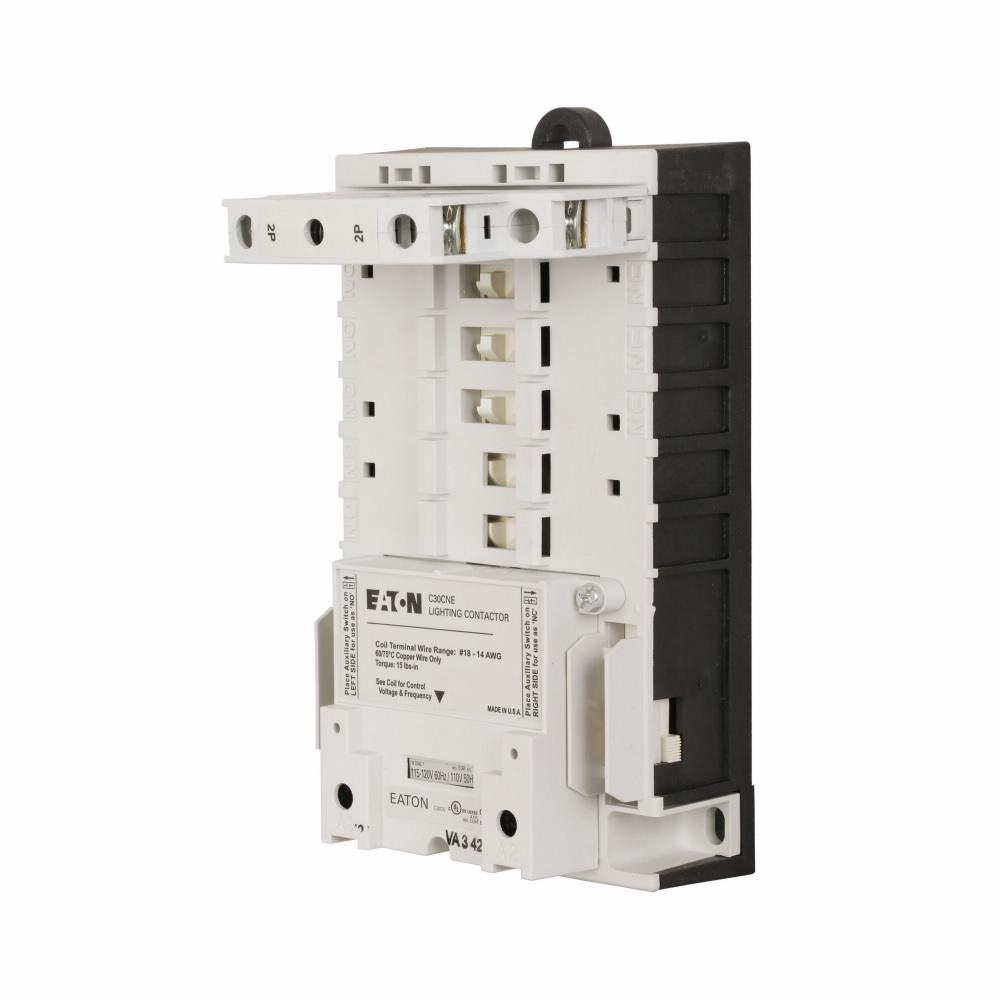

EATON Lighting Contactor, Electrically Held, Series: C30CN, 240/265 to 277 VAC Coil, 2 Pole, 50/60 Hz Frequency, 1NO-2NO Contact Configuration, 3 Auxiliary Contacts, 30 A Contact, Open Enclosure, -13 to 104 deg F Operating, 7.39 in L x 4.18 in W x 3.86 in H Dimensions
| Contact Rating | : | 30 A |
| Dimensions | : | 7.39 in L x 4.18 in W x 3.86 in H |
| Enclosure Type | : | Open |
| Frequency Rating | : | 50/60 Hz |
| Number of Auxiliary Contacts | : | 3 |
| Operating Temperature | : | -13 to 104 deg F |
| Series | : | C30CN |
| Type | : | Electrically Held |
| Coil Voltage | : | 240/265 to 277 VAC |
| Contact Configuration | : | 1NO-2NO |
| Number of Poles | : | 2 |
- Power poles latch easily onto the base and designating them as NO/NC is a simple matter of left or right positioning
- Additional poles, either NO/NC, may be easily added at any time
- Low input VA permits long wire runs
