Dragon Tooth® connectors and installing tools are designed to splice, tap and terminate magnet wire from #32 AWG to 460000 CMA copper and from #18 AWG to 460000 CMA aluminum conductors in motor and transformer applications. Dragon Tooth® magnet wire connectors penetrate the insulation and oxide layers to make electrical contact on magnet wiring. The result is permanent, low resistance electrical connections, capable of maintaining contact integrity throughout the life of the connection.

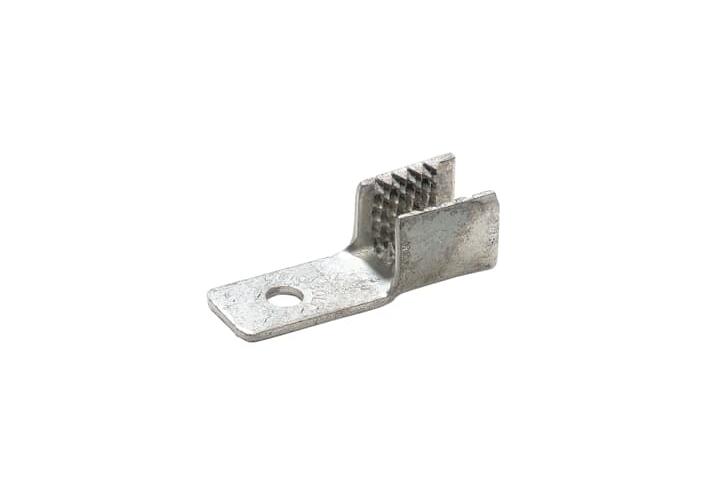

Dragon Tooth® Ring Terminal, Insulation Piercing Magnet Wire, Aluminum/Copper Conductor, 16 to 12 AWG Conductor, #10 Stud, 0.91 in Length, 0.45 in L x 0.25 in W Barrel, 0.3 in W Tongue, Specifications: 2580 to 12330 kcmil, 0.05 to 0.08 in THK, Copper Alloy, Tin Plated
| Barrel Size | : | 0.45 in L x 0.25 in W |
| Conductor Type | : | Aluminum/Copper |
| Finish | : | Tin Plated |
| Specifications | : | 2580 to 12330 kcmil, 0.05 to 0.08 in THK |
| Stud Size | : | #10 |
| Tongue Size | : | 0.3 in W |
| Type | : | Insulation Piercing Magnet Wire |
| Conductor Size | : | 16 to 12 AWG |
| Length | : | 0.91 in |
| Material | : | Copper Alloy |
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire
- Can be installed in seconds
- Requires minimal training for installation
- Supplied with bolt holes to accommodate #6 through 1/2 in studs
