EATON CMBE22P125BTSR

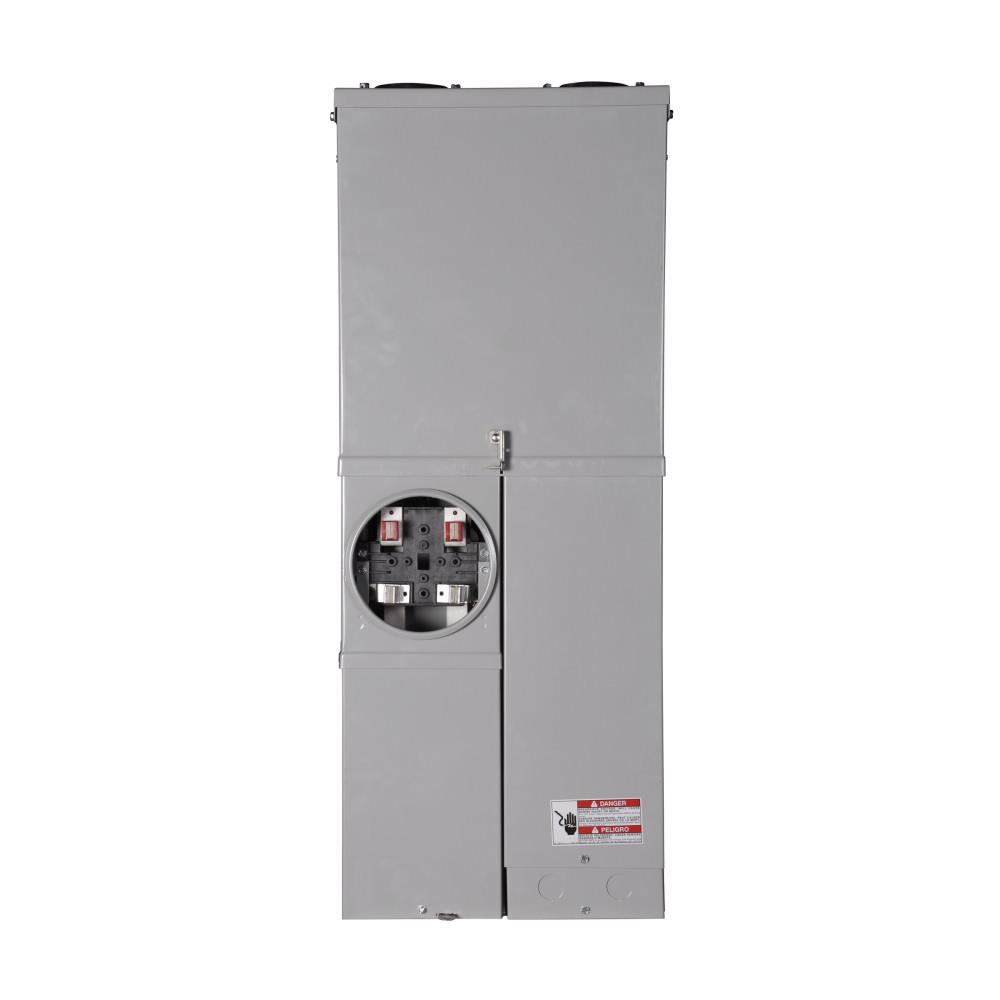

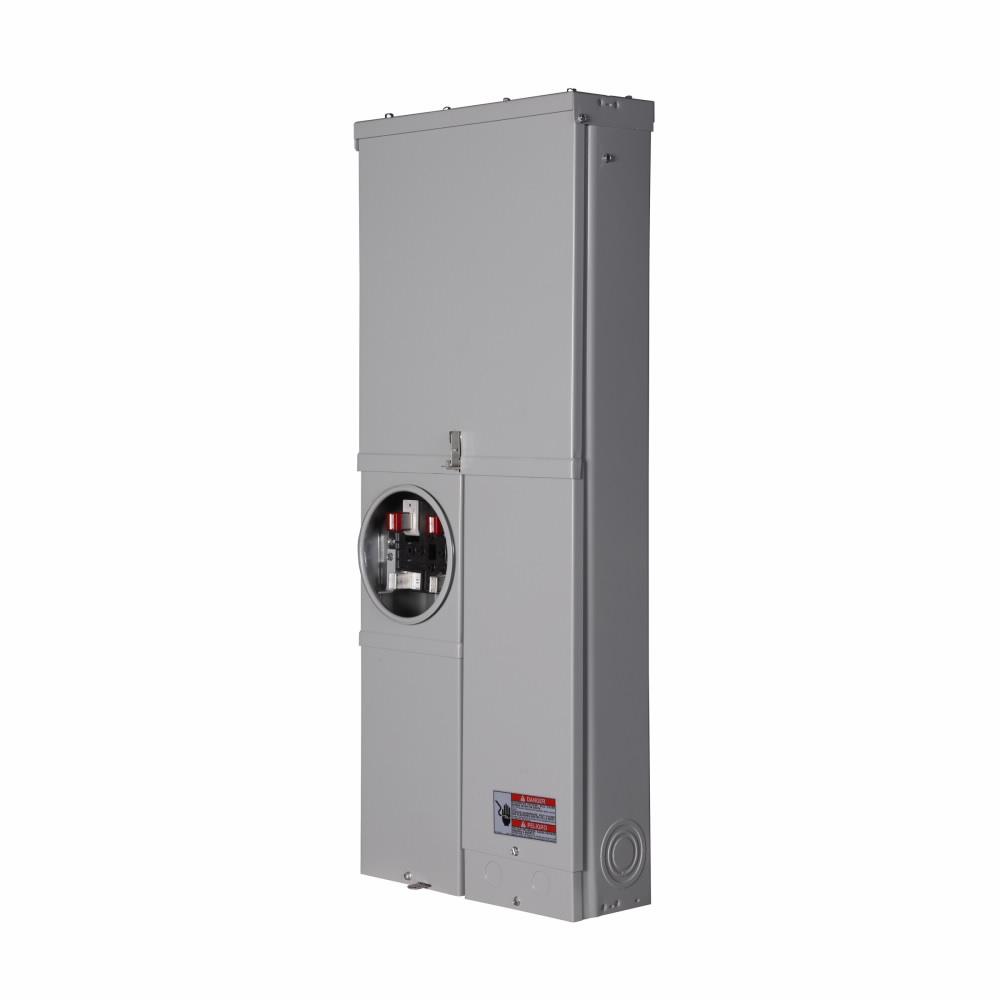

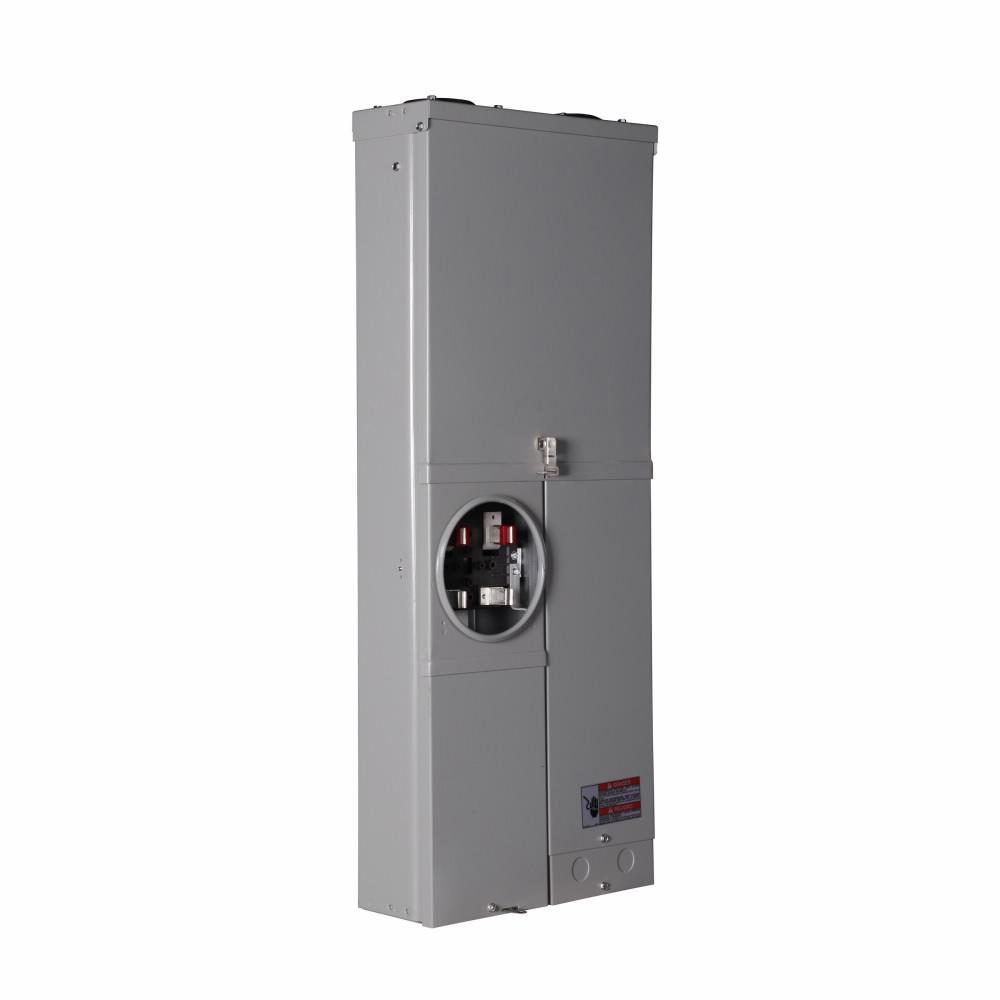

EATON CMBE22P125BTSR 2-Circuit 2-Space Type CH Meter Breaker, 120/240 VAC, 125 A, 1 Phase, NEMA 3R Enclosure
- Manufacturer Name: Eaton
- MPN: CMBE22P125BTSR
- Brand Name: EATON
- UPC: 786685242286
- FEPN: CMBE22P125BTSR EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center (circuit breaker distribution section) or meter socket and main breaker combined in 1-enclosure.
EATON Meter Breaker, 2-Circuit 2-Space Type CH, 120/240 VAC, 125 A, 1 ph, Bottom/Top Feed, 4 Jaws, Ring Cover, Surface Mounting, NEMA 3R Enclosure, 5.5 in L x 14.44 in W x 36.13 in H Dimensions
| Cover Type | : | Ring |
| Dimensions | : | 5.5 in L x 14.44 in W x 36.13 in H |
| Feed Type | : | Bottom/Top |
| Mounting Type | : | Surface |
| Number of Jaws | : | 4 |
| Type | : | 2-Circuit 2-Space Type CH |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 125 A |
| Phase | : | 1 |
| Enclosure Type | : | NEMA 3R |

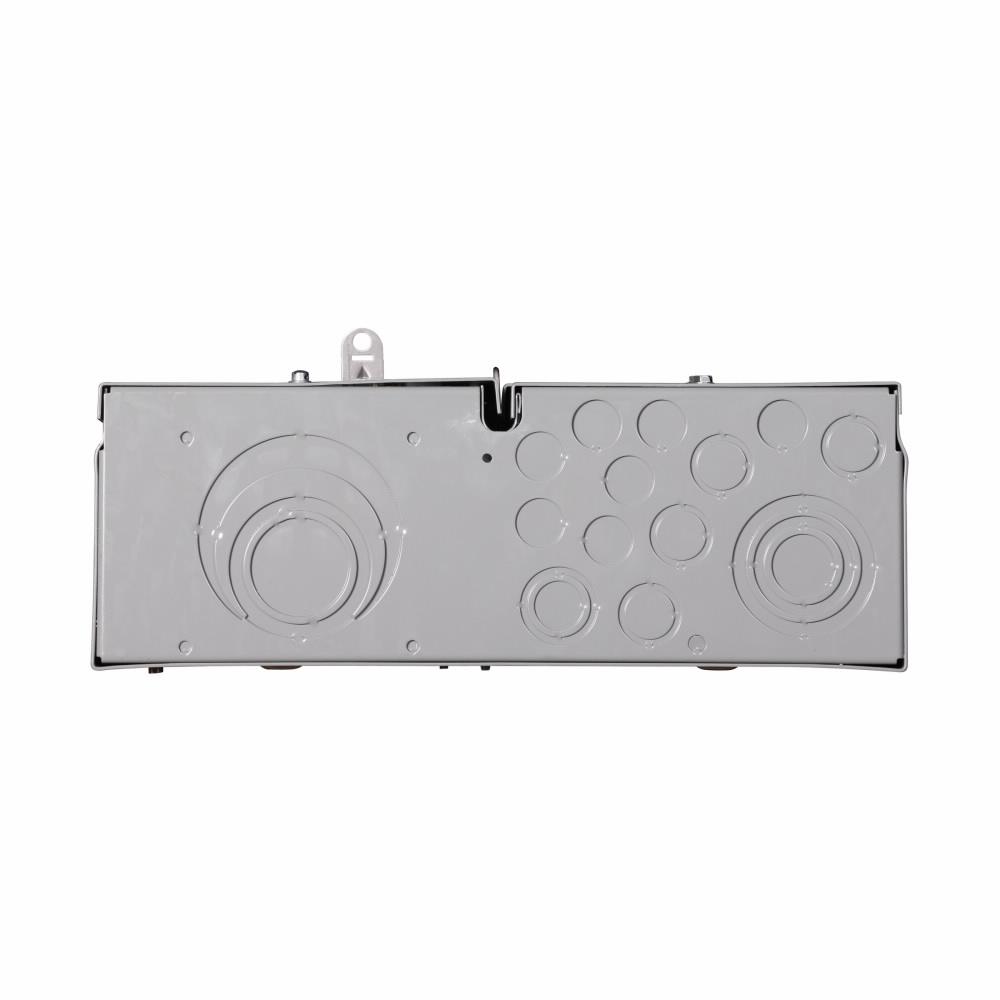

- Larger 250 kcmil lugs and additional knockouts for ease of installation
- Box type main lugs are included
- Factory installed neutral

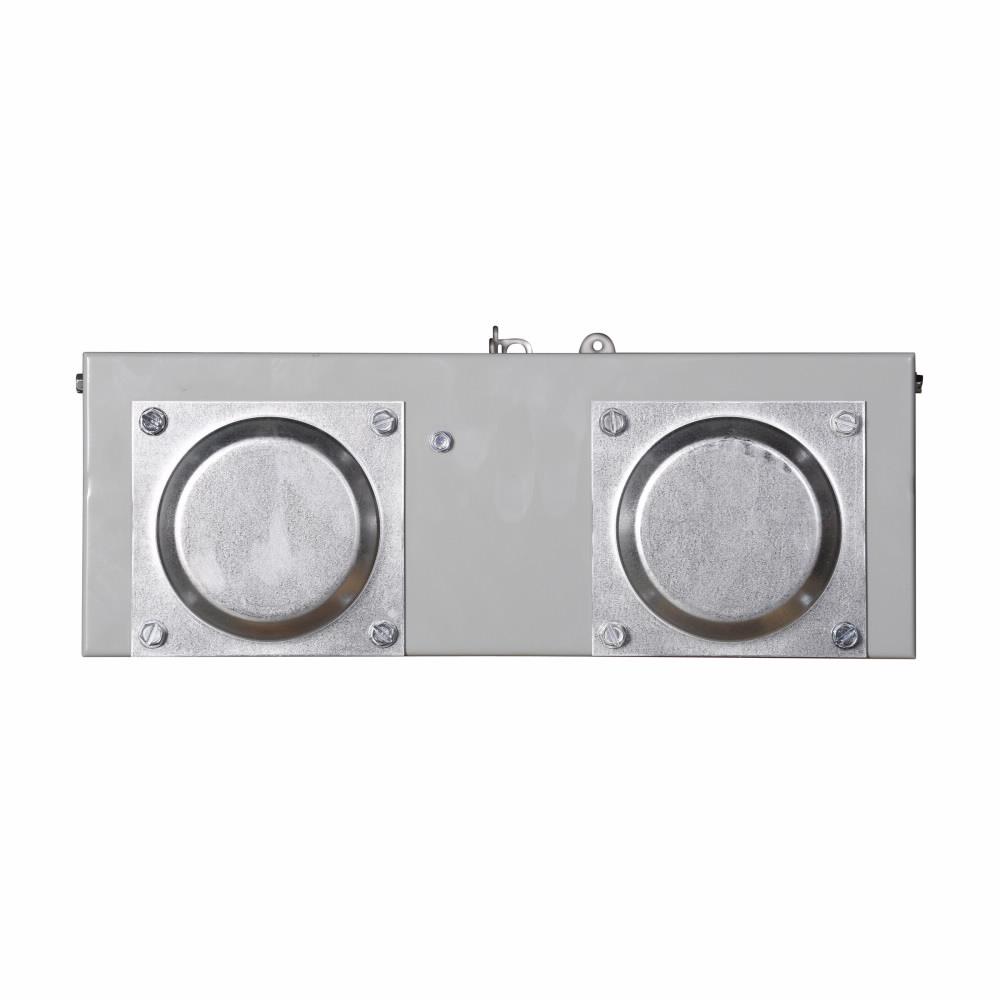

- Hub provisions on top endwall
- Ring type sockets are provided with a sealing ring
- Padlockable device covers provide an additional measure of security and help prevent tampering
- Most units have center keyhole for easy one-person installation
- NEMA 3R rainproof enclosure
- Provision for main
