Contact poles on the D15 relay are of the fixed design and are not convertible. The basic four-pole relay will accept a front mounted contact pole deck and/or side mounted contact blocks (one per side). In addition, a side mounted solid state timer or a front mounted pneumatic timer can be added to the relay. Only one front mounted attachment can be added to the basic relay.

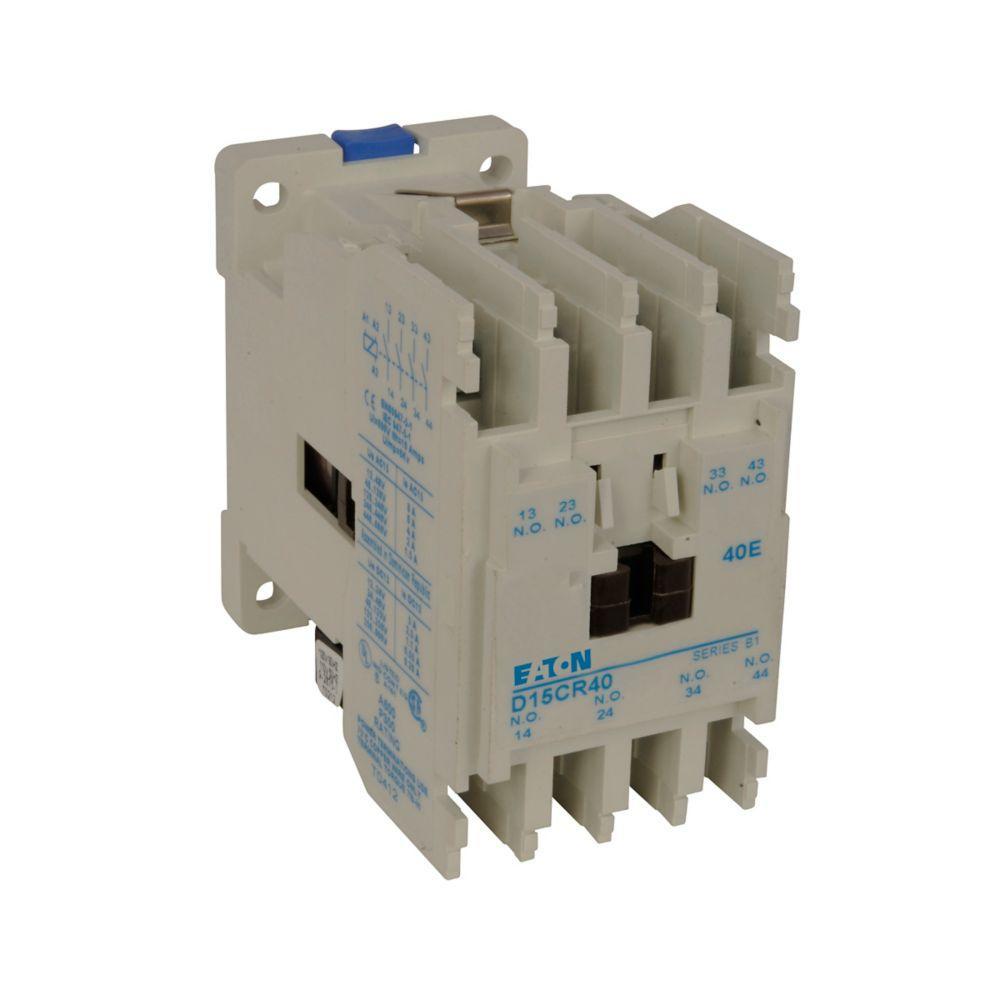

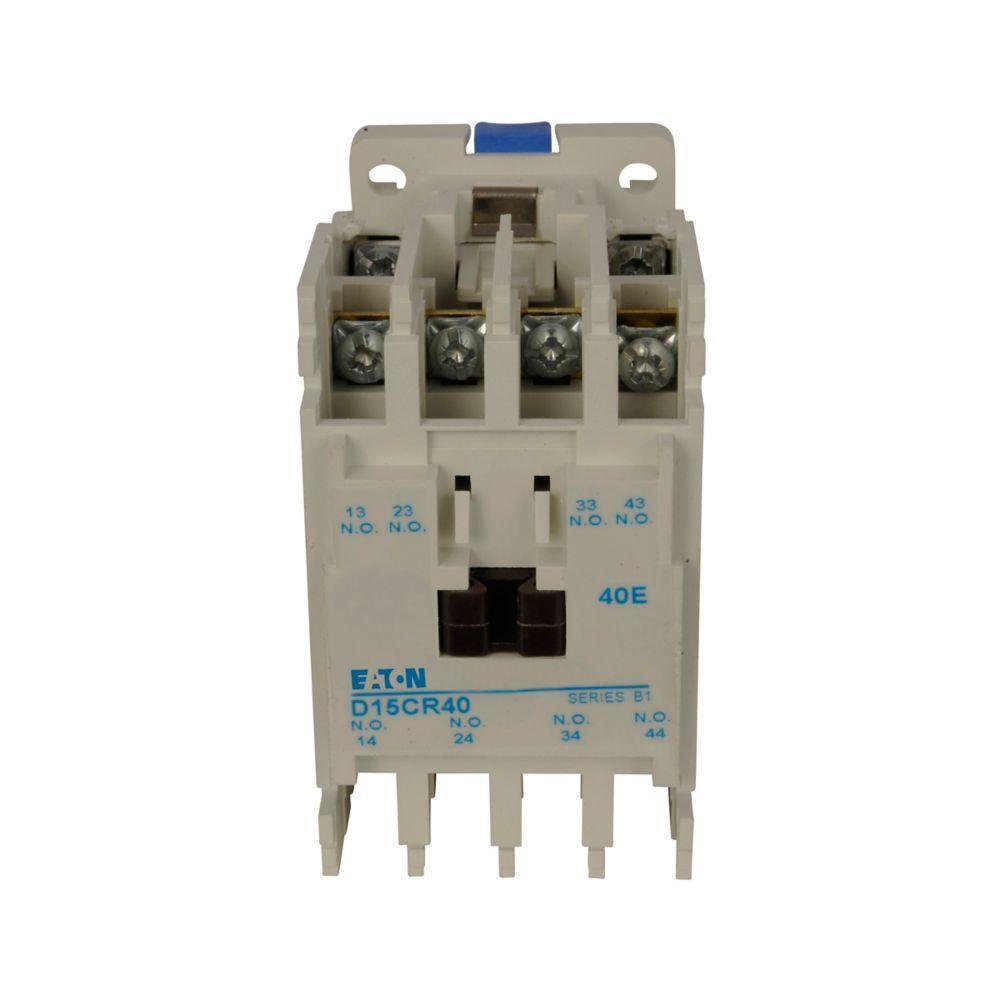

EATON AC Control Relay, Fixed Contact Multi-Pole, Series: D15 Freedom, 10 A, 50/60 Hz Frequency, 220/240 VAC Coil, 4NO Contact Form, 30 A Make/3 A Break Contact, 4 Pole, DIN Rail/Panel Mounting, Finger Safe/Pressure Plate Terminal, Open Enclosure, 3.3 in L x 1.8 in W x 2.96 in H Dimensions
| Contact Rating | : | 30 A Make/3 A Break |
| Dimensions | : | 3.3 in L x 1.8 in W x 2.96 in H |
| Enclosure Type | : | Open |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail/Panel |
| Number of Poles | : | 4 |
| Series | : | D15 Freedom |
| Terminal Type | : | Finger Safe/Pressure Plate |
| Type | : | Fixed Contact Multi-Pole |
| Amperage Rating | : | 10 A |
| Contact Form | : | 4NO |
| Coil Voltage | : | 220/240 VAC |
- 600 VAC, 10 A continuous thermal current
- State indicator visually shows relay On or Off status
- Relay base has mounting holes on 35 x 60 mm centers, permitting direct replacement of competitive relays
- Relay also mounts on 35 mm DIN-rail as standard
- Magnet coil has three terminals, permitting either top or diagonal wiring easy to replace European or US relays without changing wiring layout
- Contact pole terminals have captive, backed-out, self-lifting pressure plates with +/- screws reduced wiring time
- All terminals are shrouded or "finger proofed" to reduce possibility of electrical shock
- 30 A make, 3 A break contact rating
