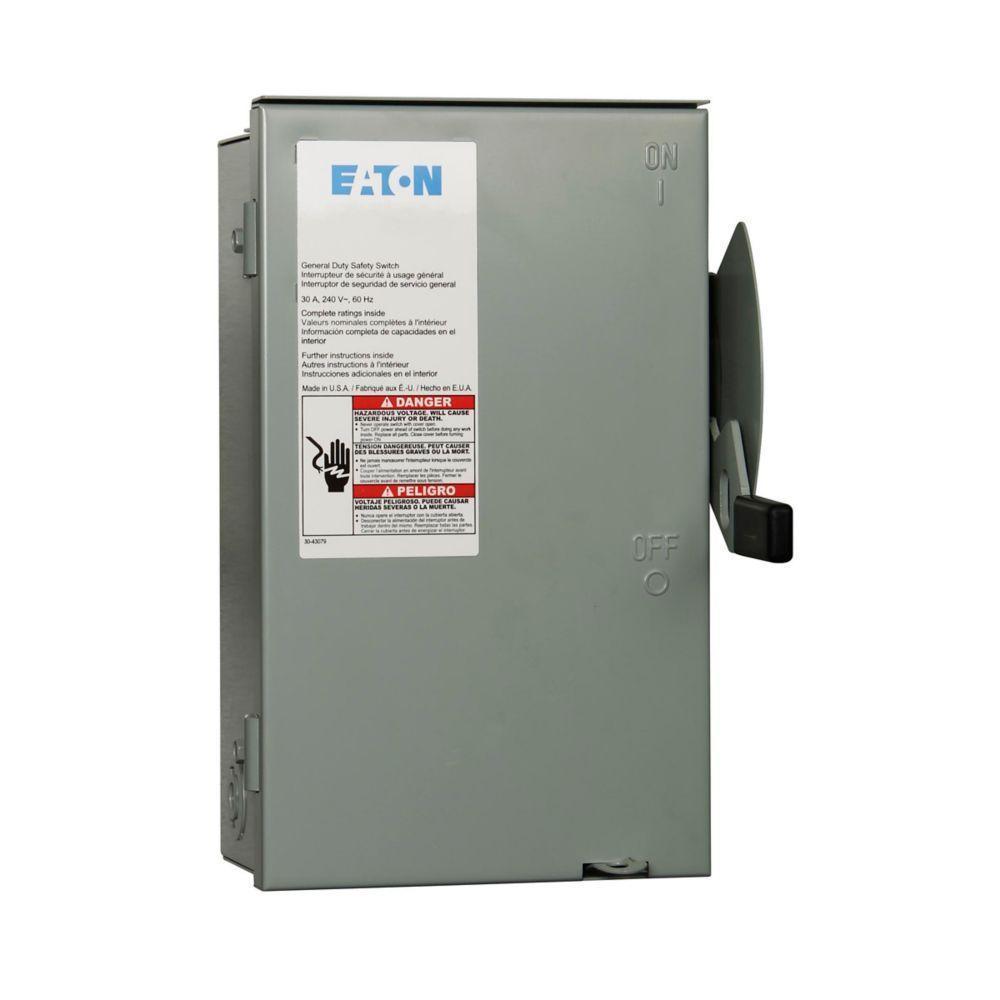

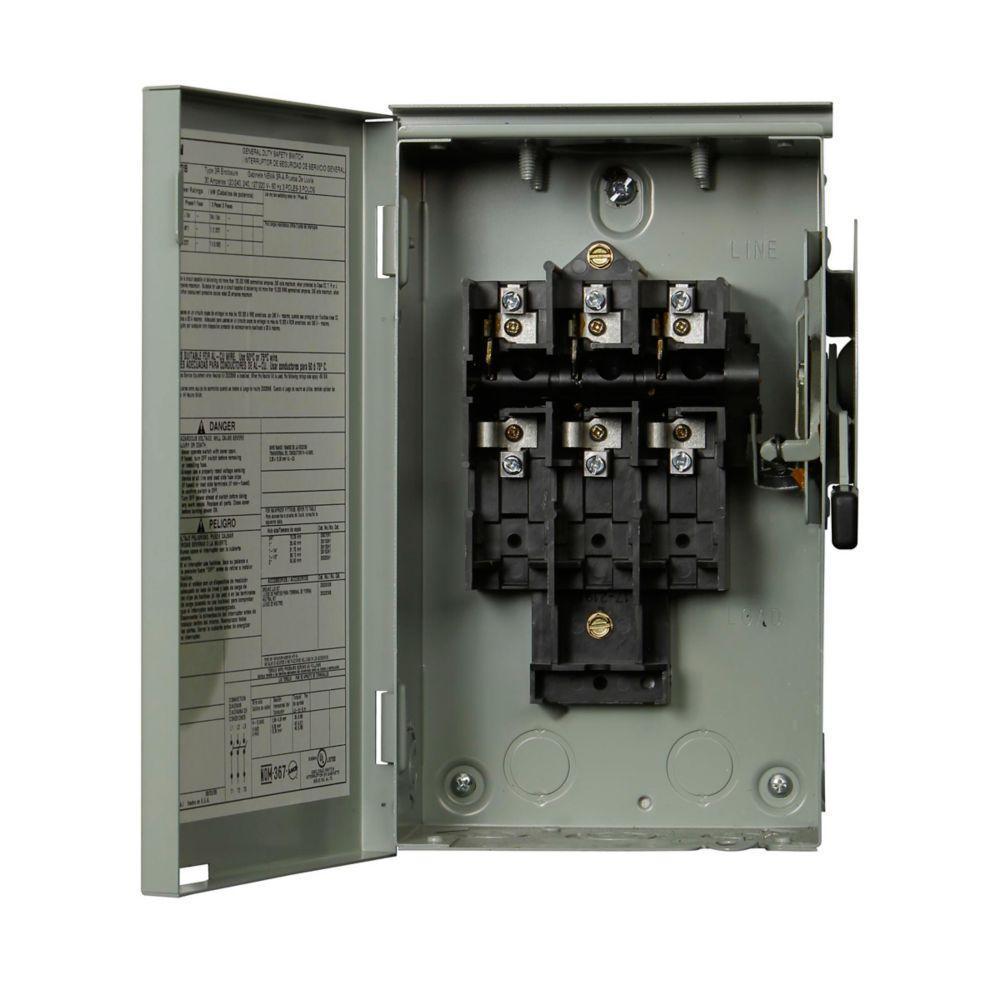

EATON DG321URB
EATON DG321URB DG Series Non-Fusible Rainproof General Duty Safety Switch, 240 VAC, 30 A, 3 hp, 7-1/2 hp, TPST Contact, 3 Poles
- Manufacturer Name: Eaton
- MPN: DG321URB
- Brand Name: EATON
- UPC: 782113120287
- FEPN: DG321URB EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.
EATON General Duty Safety Switch, Non-Fusible Rainproof, Series: DG Series, 240 VAC, 30 A, 3 hp, 7-1/2 hp, 1/3 ph, 3 Pole, 3 Wires, TPST Contact Form, NEMA 3R Enclosure, Panel Mounting, 5.73 in L x 6.1 in W x 6 in H Dimensions, Steel, Galvanized/Painted
| Dimensions | : | 5.73 in L x 6.1 in W x 6 in H |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Galvanized/Painted |
| Material | : | Steel |
| Mounting Type | : | Panel |
| Number of Wires | : | 3 |
| Phase | : | 1/3 |
| Series | : | DG Series |
| Type | : | Non-Fusible Rainproof |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 30 A |
| Horsepower | : | 3 hp, 7-1/2 hp |
| Contact Form | : | TPST |
| Number of Poles | : | 3 |
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
- Non-fusible switches are 100% fully rated
- 200 to 600A features K-series design
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Design for series B general duty 30 to 100 A
