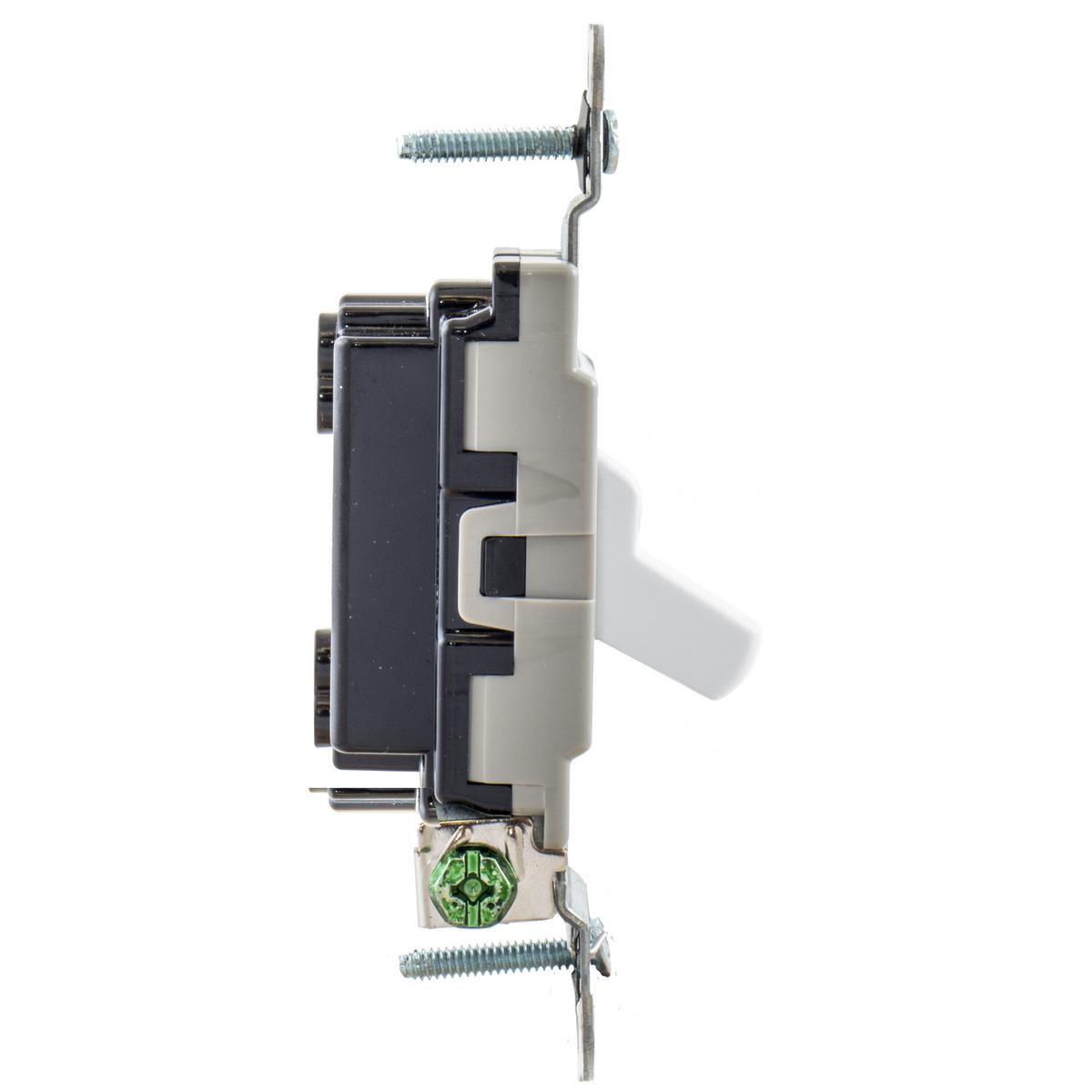

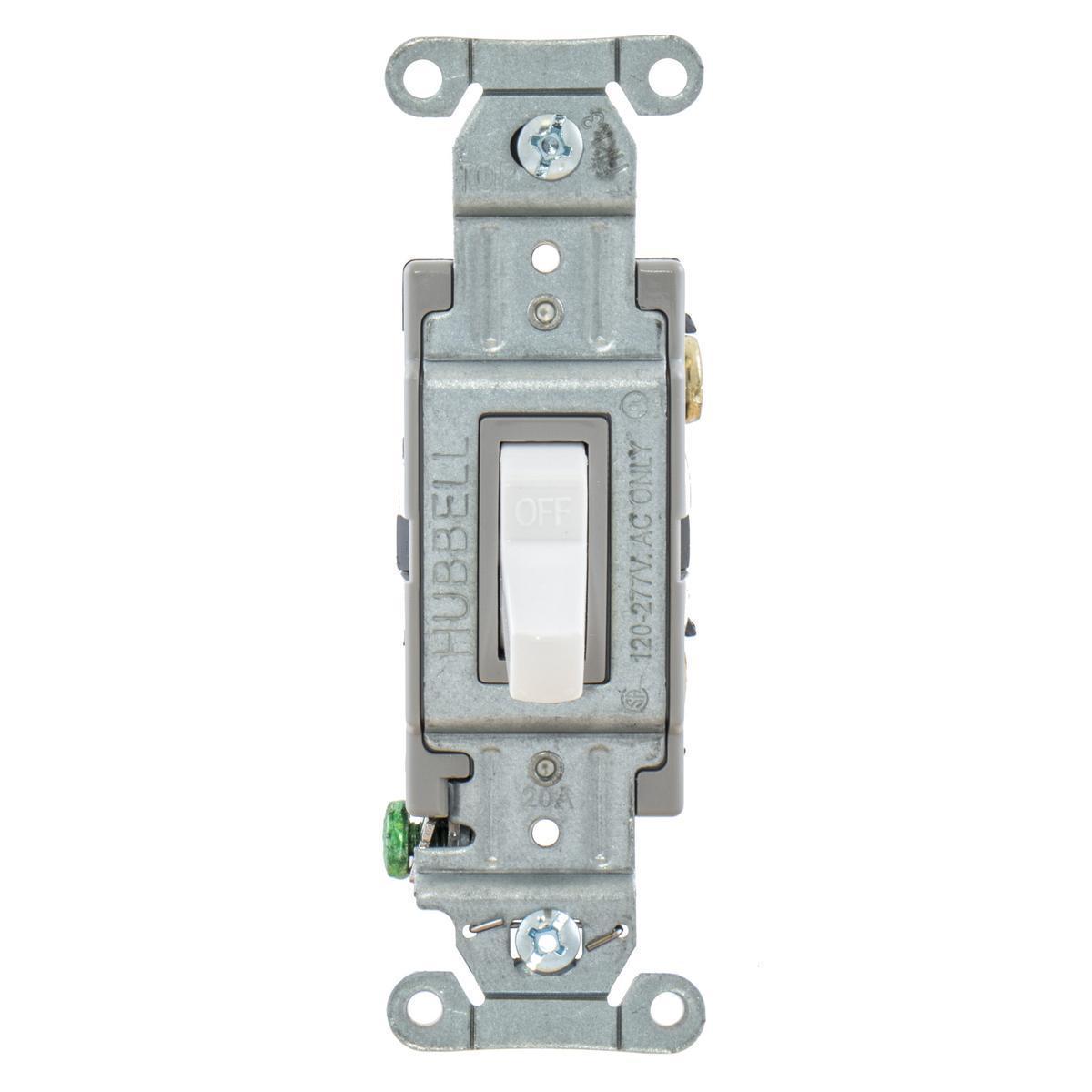

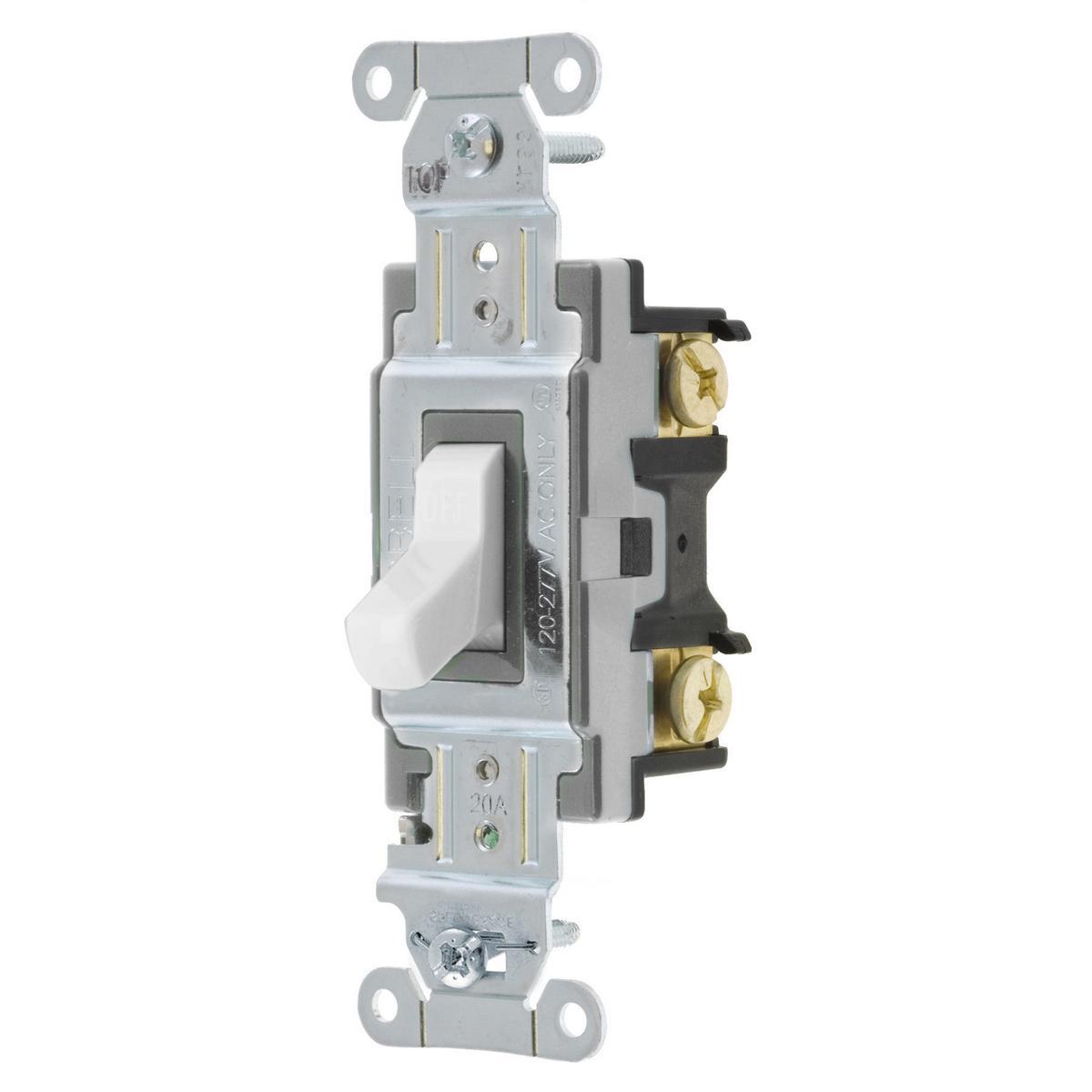

Wiring Device-Kellems CSB120W
Wiring Device-Kellems CSB120W 2-Position Standard Toggle Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
- Manufacturer Name: Hubbell
- MPN: CSB120W
- Brand Name: Wiring Device-Kellems
- UPC: 783585154060
- FEPN: CSB120W HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, CSB120W, Toggle Switch, 2-Position Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
| Actuator | : | Toggle |
| Color | : | White |
| Dimensions | : | 4.18 x 1.49 x 1.83 in |
| Environmental Conditions | : | -40 to 75 deg C |
| Material | : | Nylon |
| Mounting | : | Threaded |
| Number of Poles | : | 1 |
| Operating Cycles | : | 50000 cycles |
| Terminal Type | : | Back/Side Wire |
| Type | : | 2-Position Standard |
| Voltage Rating | : | 120 to 277 VAC |
| Amperage Rating | : | 20 A |
| Power Rating | : | 5540 W |
| Contact Configuration | : | 2-Position |
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
