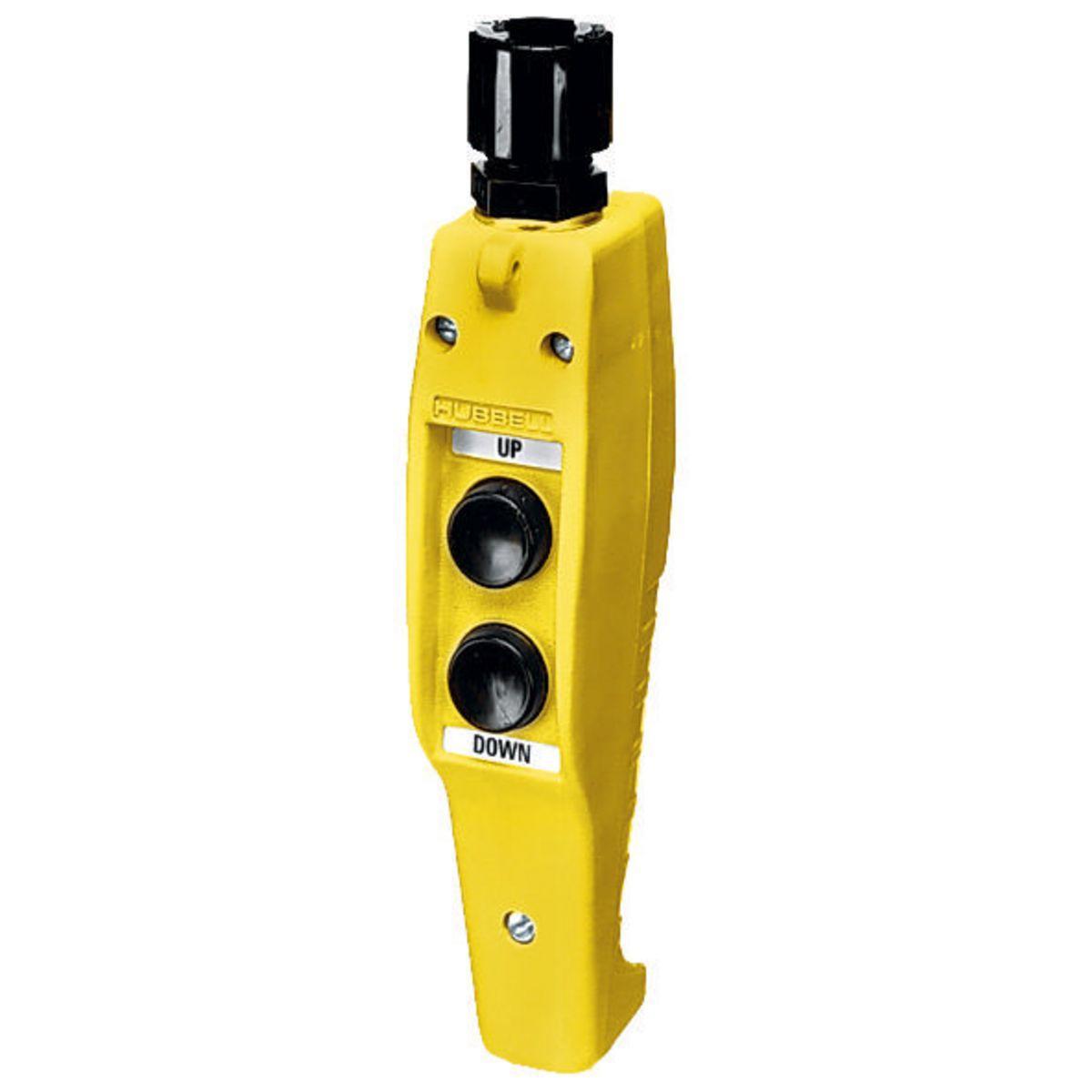

Wiring Device-Kellems CPB21
Wiring Device-Kellems CPB21 CPB Compact Non-Metallic Pilot Duty Pendant Pushbutton Station, 250 VAC, 3 A, Momentary Contact, 2 Operators, 4X NEMA Rating
- Manufacturer Name: Hubbell
- MPN: CPB21
- Brand Name: Wiring Device-Kellems
- UPC: 783585106854
- FEPN: CPB21 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, CPB21, Pendant Pushbutton Station, Compact Non-Metallic Pilot Duty, Series: CPB, 250 VAC, 3 A, 2 Pole, 2 Operators, Momentary Contact Configuration, 2NO Contact Form, 6 A at 120 VAC/3 A at 240 VAC Contact, 1 ph, Flush Operator, Legend: Up/Down, Push Button Actuator, Screw Connection, 4X NEMA Rating, Cable Mounting, -40 to 75 deg C Operating, Yellow, 9.13 x 1.06 x 2.38 in Dimensions
| Actuator | : | Push Button |
| Color | : | Yellow |
| Connection Type | : | Screw |
| Contact Form | : | 2NO |
| Contact Rating | : | 6 A at 120 VAC/3 A at 240 VAC |
| Dimensions | : | 9.13 x 1.06 x 2.38 in |
| Legend | : | Up/Down |
| Mounting Type | : | Cable |
| Number of Poles | : | 2 |
| Operating Temperature | : | -40 to 75 deg C |
| Operator Type | : | Flush |
| Phase | : | 1 |
| Series | : | CPB |
| Type | : | Compact Non-Metallic Pilot Duty |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 3 A |
| Contact Configuration | : | Momentary |
| Number of Operators | : | 2 |
| NEMA Rating | : | 4X |
- Single-speed with mechanical interlock between pushbuttons
