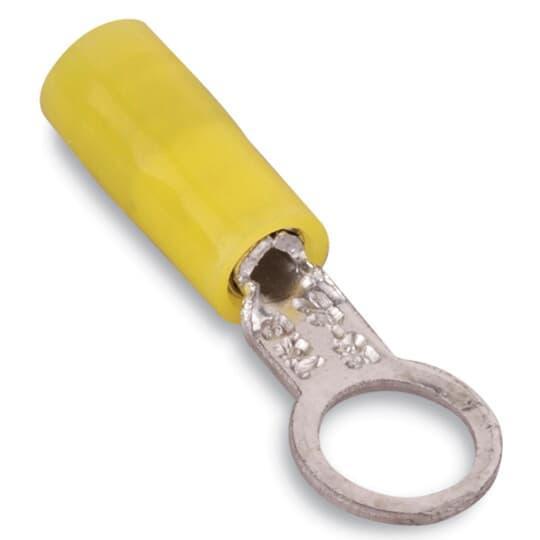

Sta-Kon® RZ22-6
Sta-Kon® RZ22-6 RZ Series Insulated Ring Terminal, 26 to 22 AWG Conductor, 0.65 in L, Brazed Seam Barrel, Copper, Yellow
- Manufacturer Name: ABB
- MPN: RZ22-6
- Brand Name: Sta-Kon®
- UPC: 786210804545
- FEPN: RZ22-6 TB
- Min Order Qty: 1
- Quantity Interval: 100
-
Inventory Availability
-
Retail Price:
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Sta-Kon® Ring Terminal, Insulated, Series: RZ Series, 26 to 22 AWG Conductor, #6 Stud, 0.65 in Length, Brazed Seam Barrel, Ring Tongue, 0.21 in W x 0.02 in THK Tongue, 600 V AC, 0.083 in Dia Maximum Insulation, 0.2 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
| Finish | : | Tin Coated |
| Series | : | RZ Series |
| Specifications | : | 0.083 in Dia Maximum Insulation, 0.2 in Clearance, Nylon Insulation |
| Stud Size | : | #6 |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.21 in W x 0.02 in THK |
| Tongue Type | : | Ring |
| Type | : | Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 26 to 22 AWG |
| Length | : | 0.65 in |
| Barrel Type | : | Brazed Seam |
| Material | : | Copper |
| Color | : | Yellow |
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 100 pieces/pack
