Wiring Device-Kellems HBL15W47

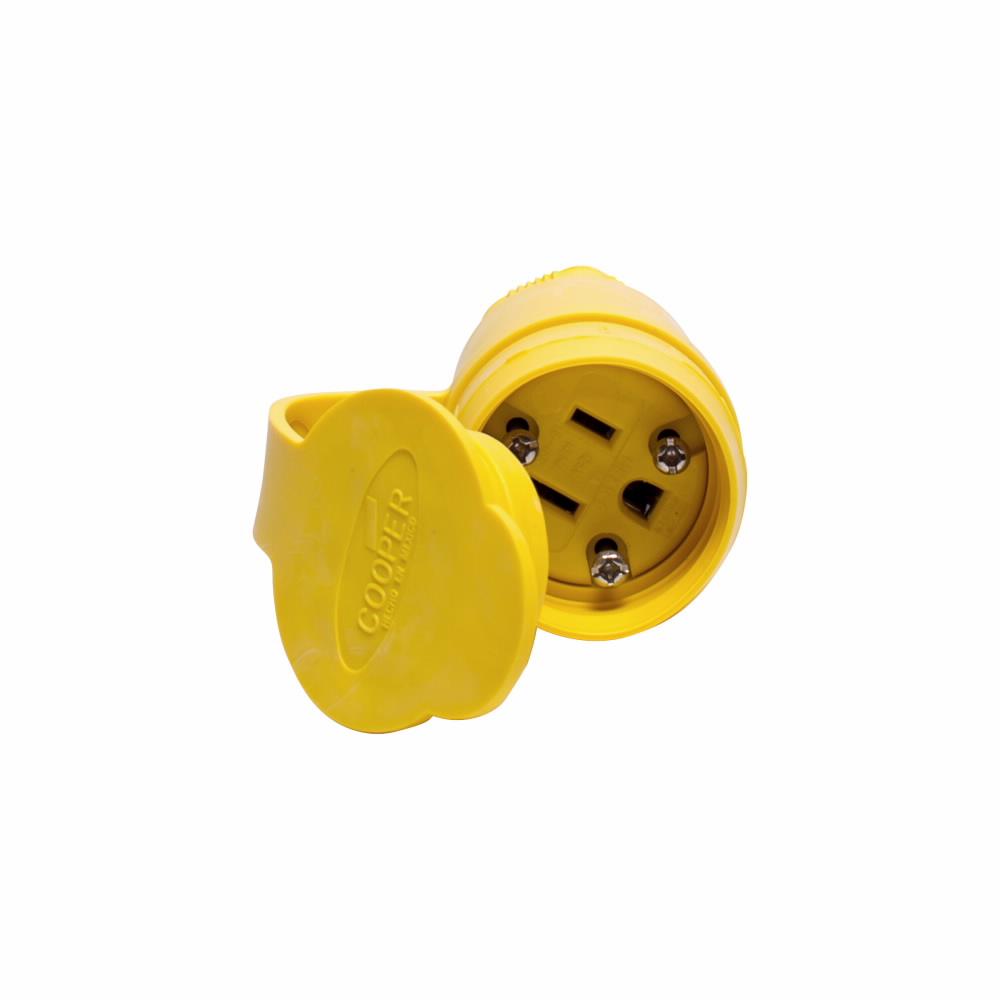

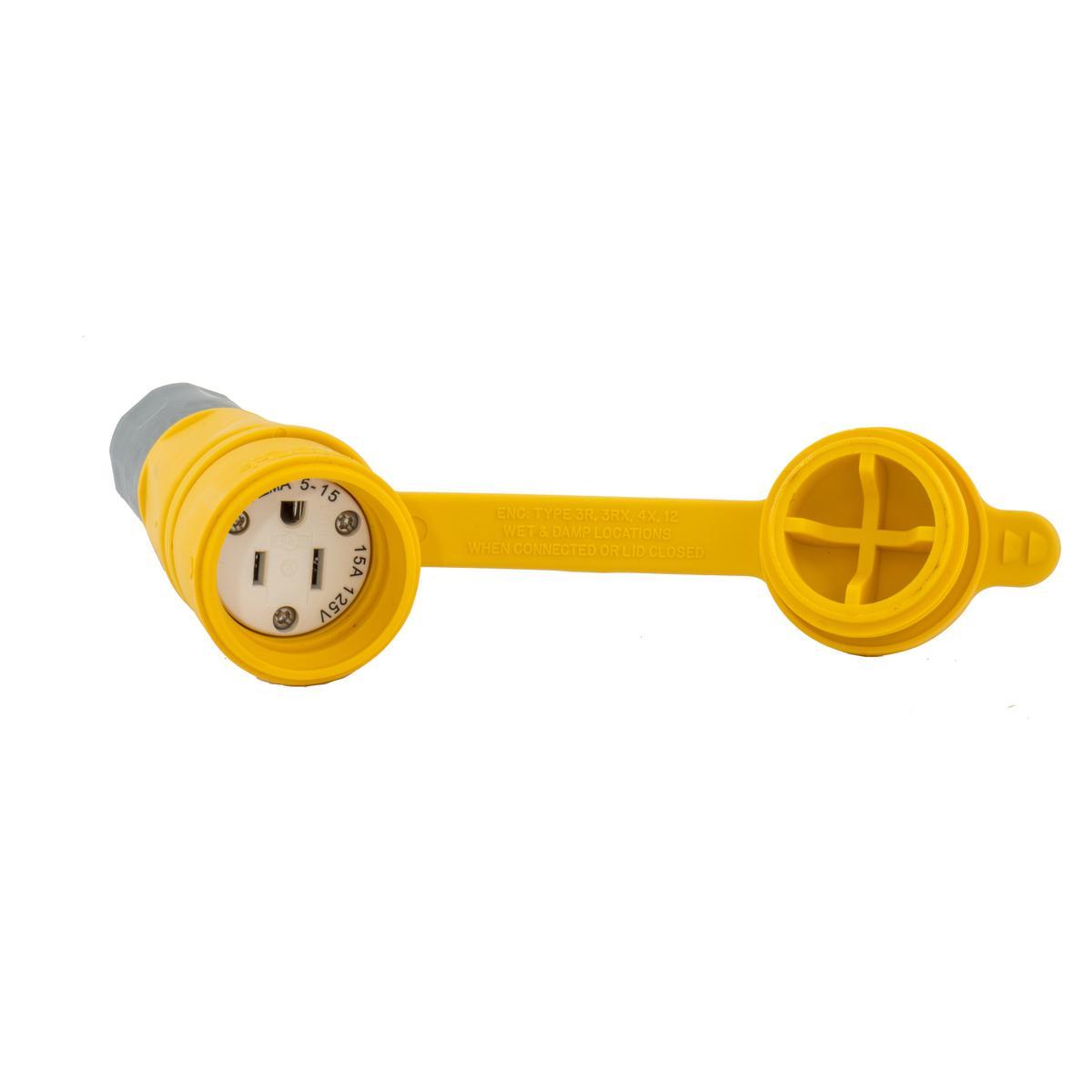

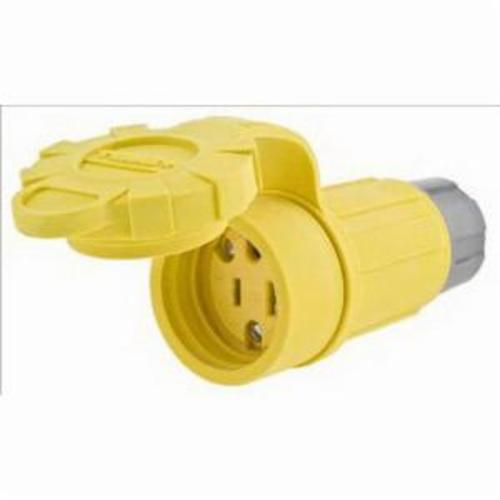

Wiring Device-Kellems HBL15W47 Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
- Manufacturer Name: Hubbell
- MPN: HBL15W47
- Brand Name: Wiring Device-Kellems
- UPC: 783585013022
- FEPN: HBL15W47 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL15W47, Straight Blade Connector, Female Grounding Insulated Watertight Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 4.03 x 1.76 x 4.03 in Dimensions
| Cord Diameter | : | 0.3 to 0.655 in |
| Dimensions | : | 4.03 x 1.76 x 4.03 in |
| Enclosure | : | IP20 |
| Grade | : | Commercial/Industrial |
| Horsepower | : | 1/2 hp |
| Material | : | Composite |
| NEMA Rating | : | 5-15R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | Female Grounding Insulated Watertight Cord Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Yellow |
- Thermoplastic elastomer housing
- Integral weatherproofing shroud seals connection between plug and connector
- Nylon compression nut keeps water and dust from getting into the body around the cord
Specification Sheet
