Marrette® 329-P
Send Print
  1. pin-int

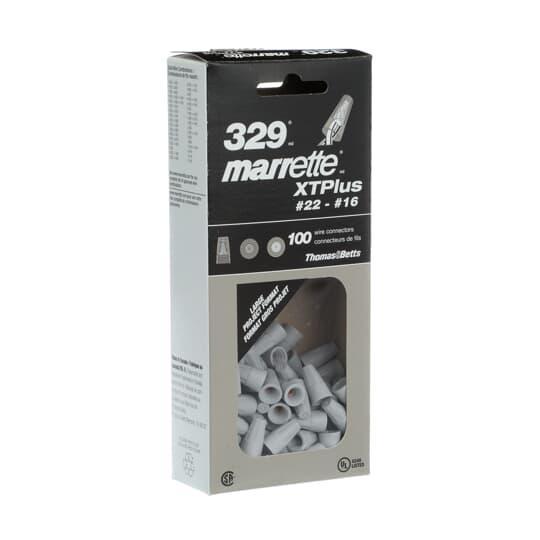

Marrette® 329-P

Marrette® 329-P High Quality Twist-On Wire Connector, Positive Grip Shell, Live Action Spring, 22 to 16 AWG Wire Solid/Stranded Copper Wire, Polypropylene

  • Manufacturer Name: ABB
  • MPN: 329-P
  • Brand Name: Marrette®
  • UPC: 067396008669
  • FEPN: 329-P TB
  • Min Order Qty: 1
  • Quantity Interval: 1000
  • Inventory Availability loading loading

Marrette® invented the pressure wire connector in 1914 and remains the class of the field and the standard by which all pressure wire connectors are judged.

Marrette®, 329-P, Twist-On Wire Connector, High Quality, Positive Grip Shell Style, Live Action Spring, Solid/Stranded Copper Wire, 22 to 16 AWG Wire, 300 V AC, 105 deg C, Polypropylene, Gray, Matte

Color       :      Gray
Finish       :      Matte
Temperature Rating       :      105 deg C
Type       :      High Quality
Voltage Rating       :      300 V AC
Shell Style       :      Positive Grip
Spring Type       :      Live Action
Wire Size       :      22 to 16 AWG
Wire Type       :      Solid/Stranded Copper
Material       :      Polypropylene
  • Wire connector to offer a non-winged, variable-volume live-action spring in the connector
  • Deep, wide throat ensures full insulation coverage
  • Threaded entry helps guide large wire bundles into the spring chamber
  • Exclusive live action variable volume spring expands to accommodate more wires with less twisting effort, compared to other connectors with a fixed spring design
  • Handles broader range of wire connection combinations
  • Connectors finger friendly design offers a truer grip for less hand fatigue during repeated use
  • High grade tough, durable polypropylene outer shell prevents blooming or blossoming of the connector sidewall and unique copper-coated spring helps resist corrosion
  • Outer shell maintains a constant moisture level, reducing the likelihood of the connector becoming dry, brittle and subsequently cracked due to extreme heat or cold
  • Coated with 100% pure copper, which reduces the corrosion common to tin- and zinc-coated products
  • Posi-Grip® surface combines a matte finish with closely spaced, deep grooves for superior twisting power, even when hands are greasy or damp
  • Color coded for quick and easy size selection
  • Round wire spring construction that gives a positive conductor bite
  • (1) 22 AWG, (1) 20 AWG, (2) 16 AWG wire combinations
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1503820829055.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520610691807.pdf
