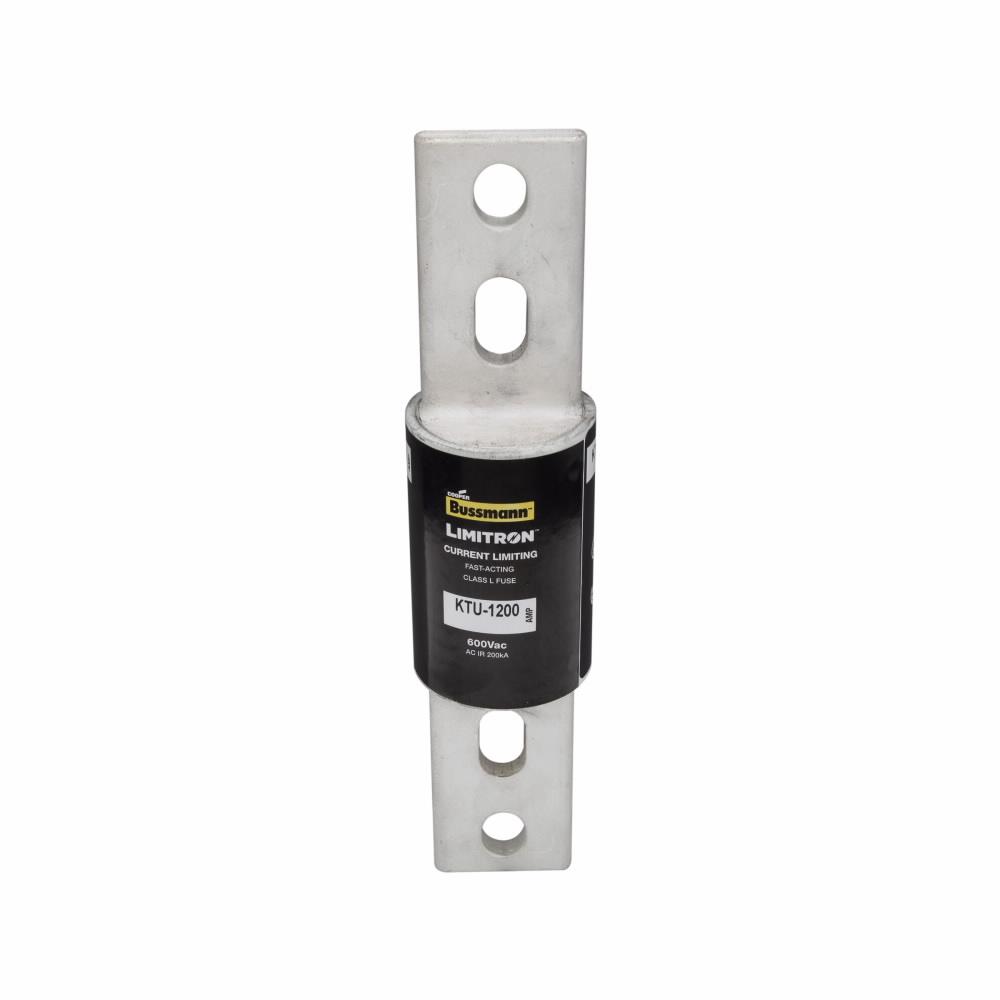

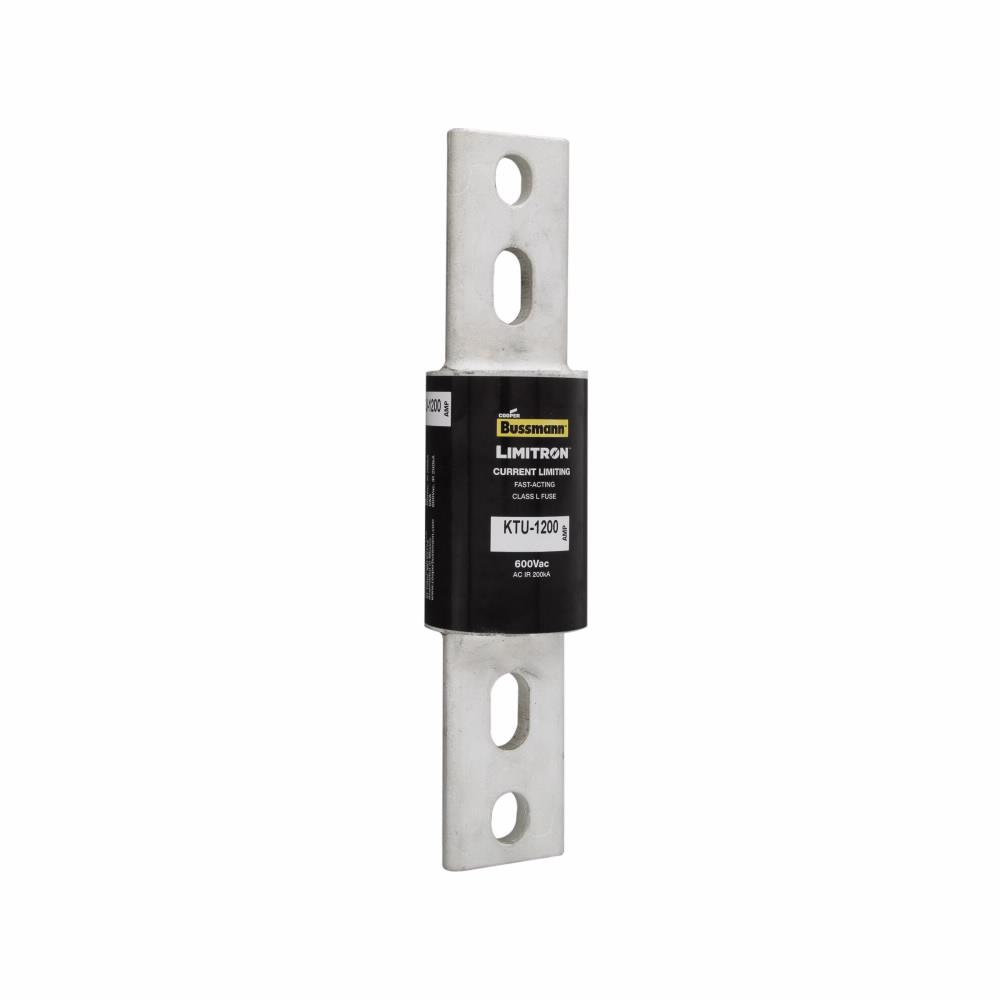

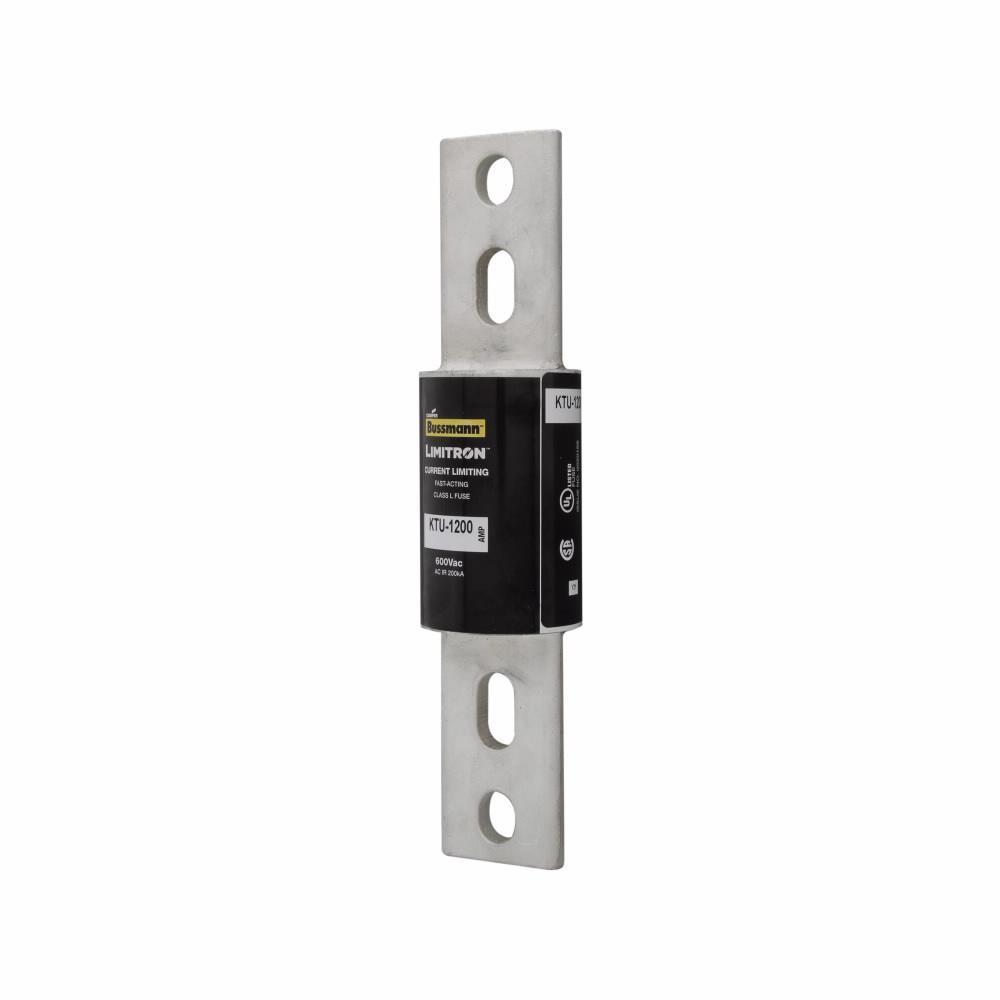

Bussmann KTU-1200
Bussmann Limitron™ KTU-1200 Current Limiting Fast Acting Fuse, 1200 A, 600 V, 200 kAIC Interrupt, L Class, Cartridge Body
- Manufacturer Name: Eaton
- MPN: KTU-1200
- Brand Name: Bussmann
- UPC: 051712613125
- FEPN: KTU-1200 BU
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Eaton Bussmann series Limitron™ fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses.
Bussmann Limitron™ Fuse, Current Limiting Fast Acting, Series: KTU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1200 A, 600 V, 200 kAIC Interrupt, Class: L, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Single Element, Melamine Glass Tube, 2-1/2 in Dia x 10-3/4 in L Body Size
| Body Size | : | 2-1/2 in Dia x 10-3/4 in L |
| Element | : | Single |
| Indicating/Non-Indicating | : | Non-Indicating |
| Material | : | Melamine Glass Tube |
| Mounting Type | : | Bolted-On |
| Rejection/Non-Rejection | : | Non-Rejection |
| Series | : | KTU |
| Terminal Type | : | Bolted Blade End |
| Type | : | Current Limiting Fast Acting |
| Amperage Rating | : | 1200 A |
| Voltage Rating | : | 600 V |
| Interrupt Rating | : | 200 kAIC |
| Class | : | L |
| Body Type | : | Cartridge |
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
- 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Silver plated end bell
