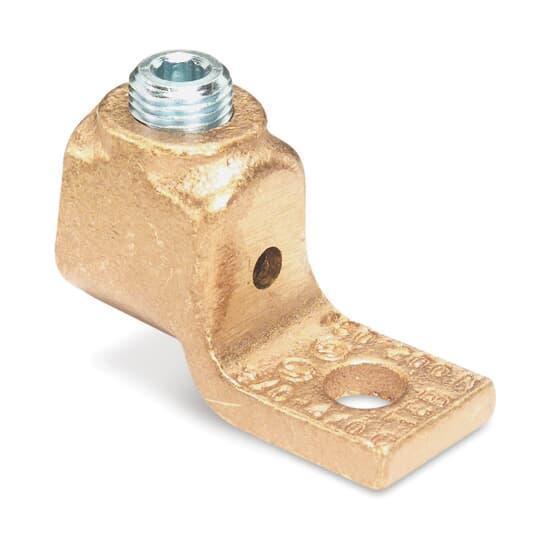

Blackburn® 71010-TB
Blackburn® Locktite® 71010-TB Cone Screw Lug, 4 to 2/0 AWG Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper
- Manufacturer Name: ABB
- MPN: 71010-TB
- Brand Name: Blackburn®
- UPC: 786210710105
- FEPN: 71010-TB TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® Locktite® Cone Screw Lug, Copper Conductor, 4 to 2/0 AWG Conductor, 3/8 in Stud, 1 Bolt Holes, 27/32 in L x 23/32 in W x 3/16 in THK Tongue, Straight Tongue, 150 in-lb Wrench Torque, Copper, 1-21/32 in L x 23/32 in W x 25/32 in H
| Dimensions | : | 1-21/32 in L x 23/32 in W x 25/32 in H |
| Specifications | : | 150 in-lb Wrench Torque |
| Tongue Size | : | 27/32 in L x 23/32 in W x 3/16 in THK |
| Tongue Type | : | Straight |
| Conductor Size | : | 4 to 2/0 AWG |
| Conductor Type | : | Copper |
| Stud Size | : | 3/8 in |
| Number of Bolt Holes | : | 1 |
| Material | : | Copper |
- Conically shaped screw compresses copper conductor so each strand is forced to carry its share of the load
- Exerts equal pressure on each conductor strand
- 1 stud of 3/8 in
Specification Sheet
