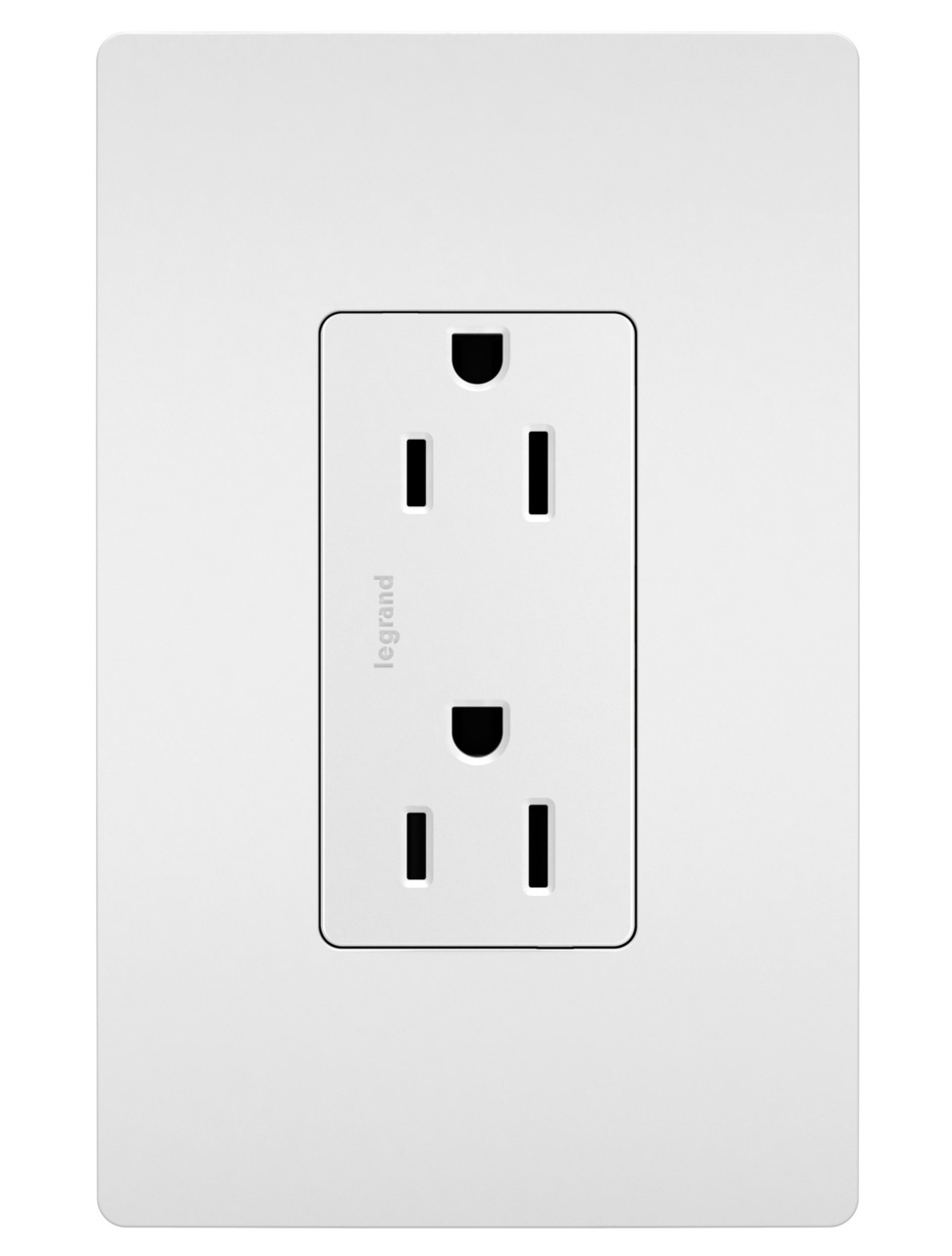

Pass & Seymour® 885TRW
Pass & Seymour® 885TRW 2-Gang Decorator Tamper Resistant Weather Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
- Manufacturer Name: Legrand
- MPN: 885TRW
- Brand Name: Pass & Seymour®
- UPC: 785007860986
- FEPN: 885-TRW PS
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Pass & Seymour® Straight Blade Receptacle, 2-Gang Decorator Tamper Resistant Weather Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, Side Wire Terminal, Thermoplastic, White, 4.2 in H x 1.29 in W x 1 in D Dimensions
| Dimensions | : | 4.2 in H x 1.29 in W x 1 in D |
| Grade | : | Commercial/Residential |
| Material | : | Thermoplastic |
| NEMA Rating | : | NEMA 5-15R |
| Terminal Type | : | Side Wire |
| Type | : | 2-Gang Decorator Tamper Resistant |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
- Child safe and self-grounding
- Bare insulation
- Meets National Electrical Code tamper resistant requirements
- Protects children patented shutter system helps prevent improper insertion of foreign objects - now with black invisi shutters for an invisible effect preferred by end users
- Extra long strap
- Quick-loop wire looping aid
- Long term blade retention
- Longer tri-drive screws for easier 12 AWG looping
- Extra large circuit break OFF tab
- Ultrasonic welding of face to back body
- Side wire accepts 14 to 12 AWG solid wire
- Push wire accepts 14 AWG solid only
- Superior protection than traditional outlet caps or protection plates
- Low profile face
- Traditional contoured face
- Replaces any standard outlet with ease, in as little as 10 min
- Features durable, high-impact resistant thermoplastic construction
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Instruction/Installation Manual
