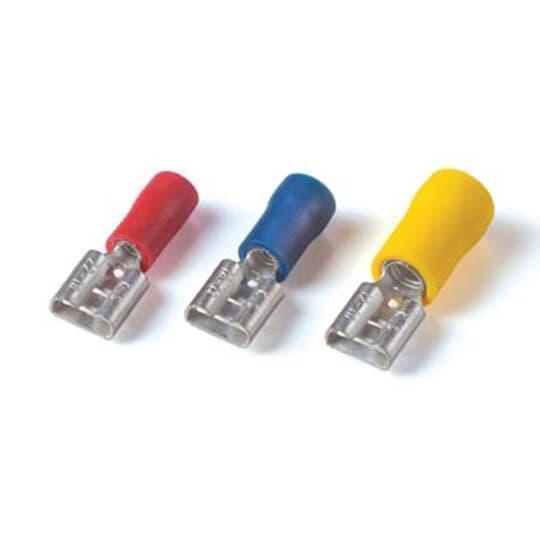

Sta-Kon® KV18-250FD-M
Spec-Kon® KV18-250FD-M Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Red, Insulated
- Manufacturer Name: ABB
- MPN: KV18-250FD-M
- Brand Name: Sta-Kon®
- UPC: 786210107127
- FEPN: KV18-250FD-M TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Spec-Kon® Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, 300 V, 0.413 in L x 0.15 in W Barrel, Vinyl Insulation, 105 deg C, Brass, Red, Tin Plated, 0.819 in L x 0.26 in W, Insulated: Insulated
| Dimensions | : | 0.819 in L x 0.26 in W |
| Finish | : | Tin Plated |
| Specifications | : | 0.413 in L x 0.15 in W Barrel, Vinyl Insulation |
| Temperature Rating | : | 105 deg C |
| Voltage Rating | : | 300 V |
| Conductor Size | : | 22 to 18 AWG |
| Tab Size | : | 0.25 in W x 0.032 in THK |
| Barrel Type | : | Funnel Entry/Sleeved |
| Material | : | Brass |
| Color | : | Red |
| Insulated | : | Insulated |
- Provides easy installation and removal from male tabs and auxiliary equipment
- Offers a wide range of products to meet virtually any application
- Internal barrel serrations
- Brass with copper sleeve terminal material
- Metal insulation sleeve crimps wire insulation, providing high vibration resistance and conductor strain relief
- Molded insulator
- Ensures barrel does not separate during crimping
- Funnel entry speeds installation and reduces wire hang up
- Vinyl insulated
Specification Sheet
