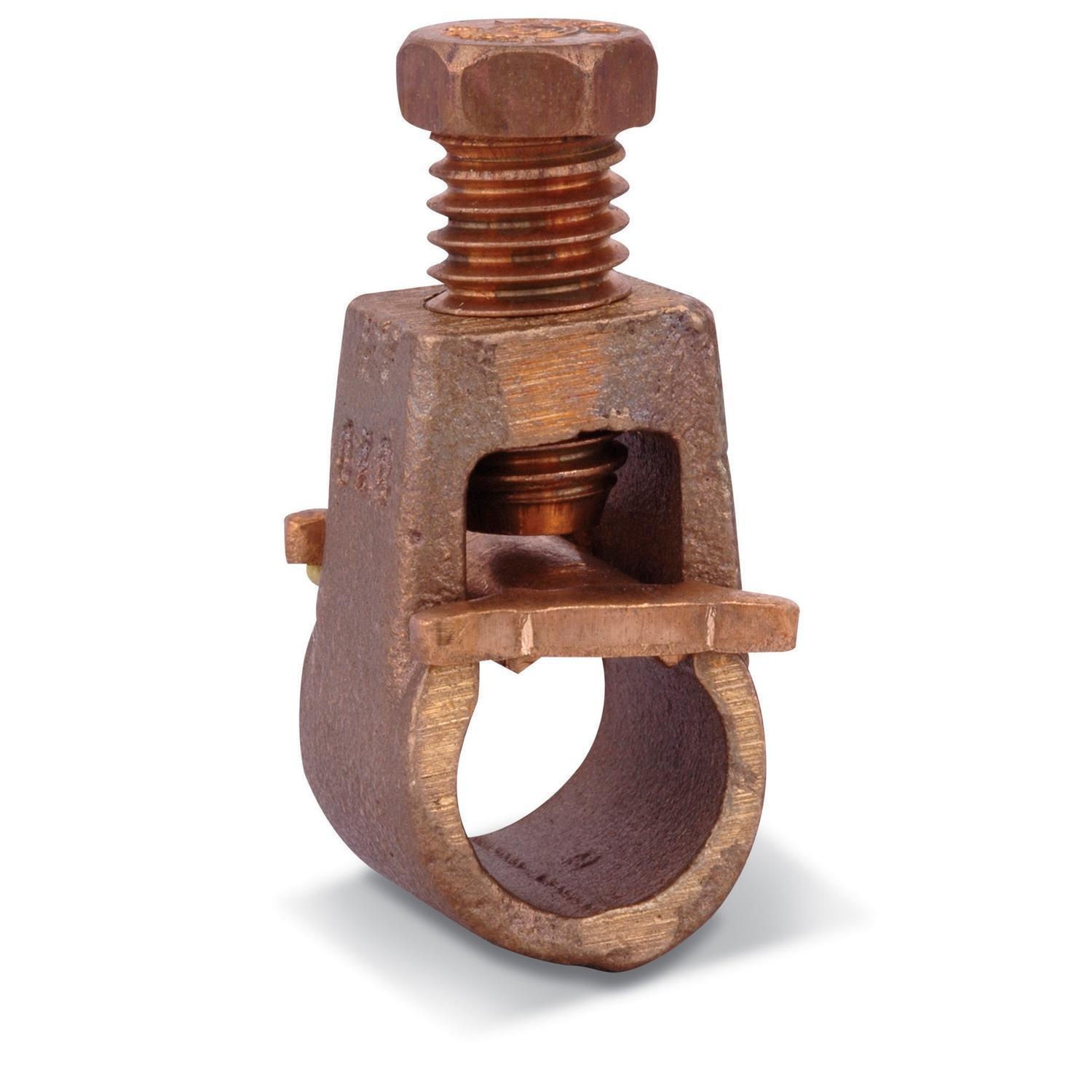

Blackburn® GG34H
Blackburn® E-Z Ground® GG34H Type GGH Heavy Duty Non-Insulated Grounding Rod Clamp, 3/4 in Rod, 8 to 4/0 AWG Conductor, Copper Alloy
- Manufacturer Name: ABB
- MPN: GG34H
- Brand Name: Blackburn®
- UPC: 783786126897
- FEPN: GG34H TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.
Blackburn® E-Z Ground® Grounding Rod Clamp, Type GGH Heavy Duty Non-Insulated, 3/4 in Rod, Copper/Solid/Stranded Conductor, 8 to 4/0 AWG Conductor, Copper Alloy, 1-3/8 in W x 1-1/4 in D x 3 in H
| Conductor Type | : | Copper/Solid/Stranded |
| Dimensions | : | 1-3/8 in W x 1-1/4 in D x 3 in H |
| Type | : | Type GGH Heavy Duty Non-Insulated |
| Rod Size | : | 3/4 in |
| Conductor Size | : | 8 to 4/0 AWG |
| Material | : | Copper Alloy |
- Cast of high strength corrosion resistant copper alloy
- Floating pressure bar distributes pressure evenly over large area of ground wire
- Axial groove keeps wire and rod in perfect alignment
- Type GG has a socket set screw
- Type GGH has a hex head bolt
- 1/2-14 UNC-2A thread
