These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

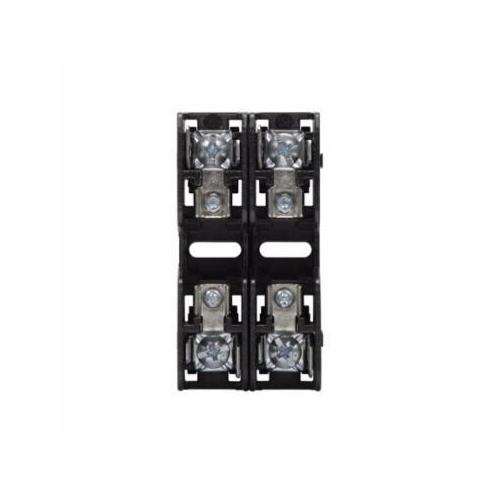

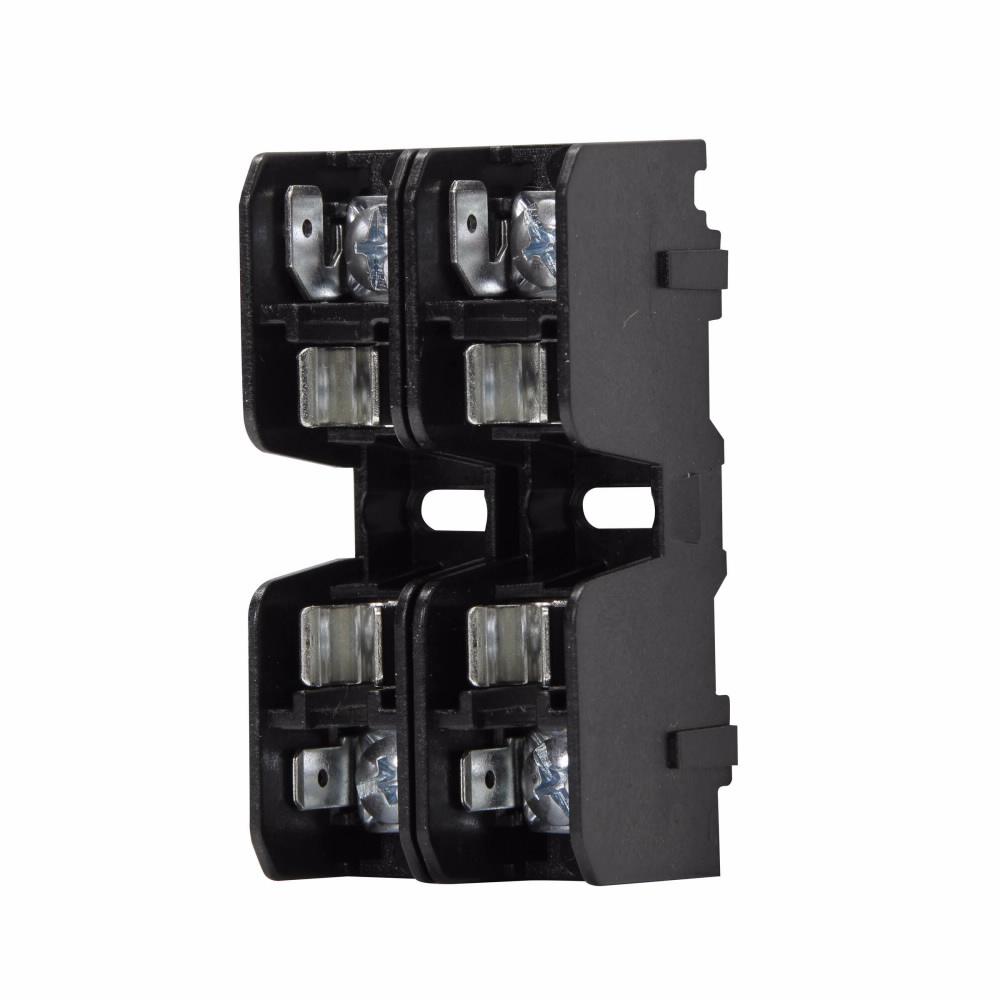

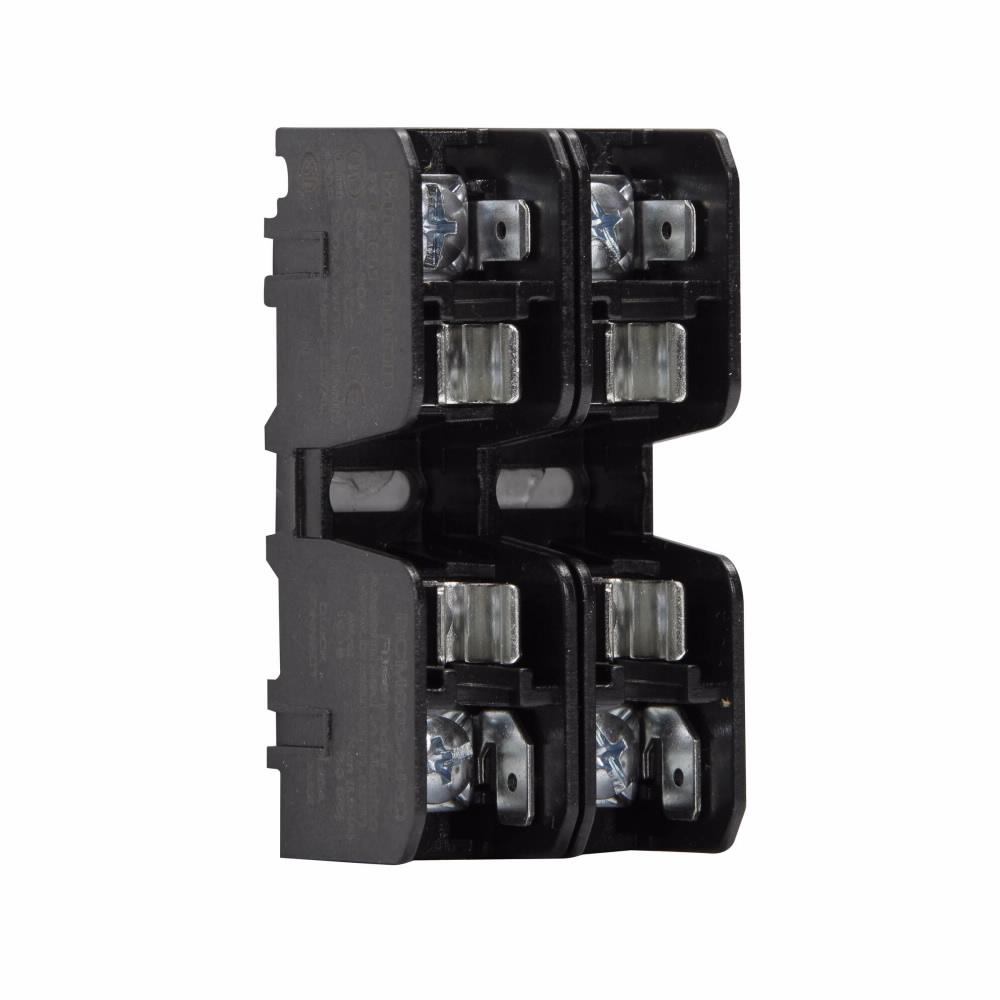

Bussmann Fuse Block, Modular, Series: BCM, 600 VAC, 30 A, 2 Pole, Class: CC, 1/4 in Quick-Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 1.6 in W x 1.3 in H
| Class | : | CC |
| Connection Type | : | 1/4 in Quick-Connect/Pressure Plate |
| Dimensions | : | 3 in L x 1.6 in W x 1.3 in H |
| Material | : | Thermoplastic |
| Mounting Type | : | DIN Rail/Panel |
| Series | : | BCM |
| Suitable For Use With | : | Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Modular |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 30 A |
| Wire Size | : | 18 to 10 AWG |
| Number of Poles | : | 2 |
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
