Color-Keyed® 54915BE

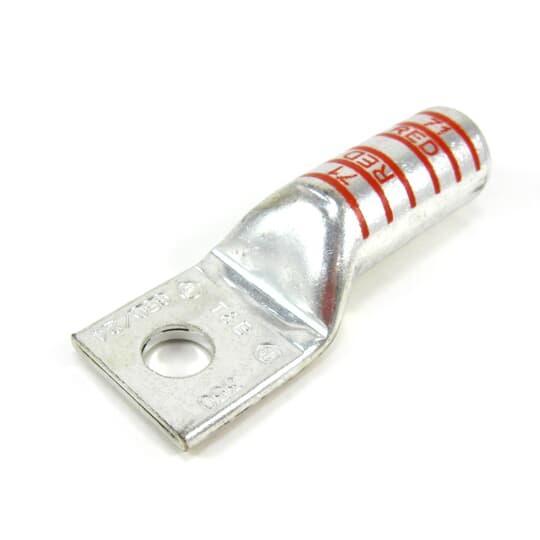

Color-Keyed® 54915BE 54900 1-Hole Non-Insulated Compression Lug, 350 kcmil Copper Conductor, Die Code: 71, 1/2 in Stud, Copper
- Manufacturer Name: ABB
- MPN: 54915BE
- Brand Name: Color-Keyed®
- UPC: 786210898193
- FEPN: 54915BE TB
- Min Order Qty: 1
- Quantity Interval: 10
-
Inventory Availability
-
Retail Price:
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54900, Copper Conductor, 350 kcmil Conductor, Die Code: 71, 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 1.36 in W x 0.18 in THK Tongue, 3.68 in Overall Length, Blind End/Long Barrel, 0.93 in Dia Barrel, Specifications: Tin Plated, 0.531 in Mounting Hole, Copper, Red
| Barrel Size | : | 0.93 in Dia |
| Barrel Type | : | Blind End/Long |
| Color | : | Red |
| Mounting Hole Size | : | 0.531 in |
| Overall Length | : | 3.68 in |
| Series | : | 54900 |
| Specifications | : | Tin Plated |
| Tongue Size | : | 1.25 in L x 1.36 in W x 0.18 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole Non-Insulated |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 350 kcmil |
| Conductor Type | : | Copper |
| Die Code | : | 71 |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- Tin plated finish
