The XBUT terminal blocks feature a compact design and maintenance free screw connection. There is a double bridge shaft providing maximum flexibility. The double bridge shaft can accommodate individual chain bridging and step down bridging from other terminal blocks. There are numerous options for accessories, including those for testing and marking. Terminal blocks are available for wire cross-sections ranging from 12 AWG (2.5 sq-mm) to 2/0 AWG (150 sq-mm).

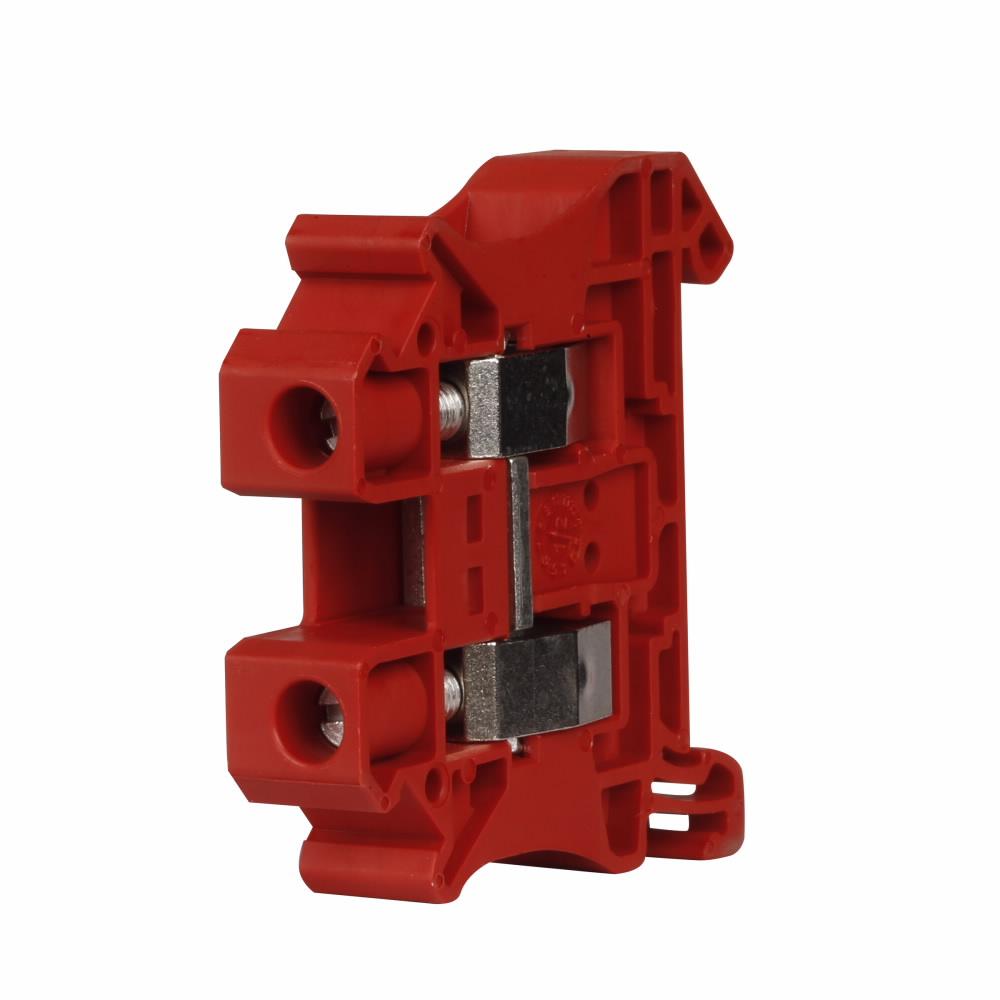

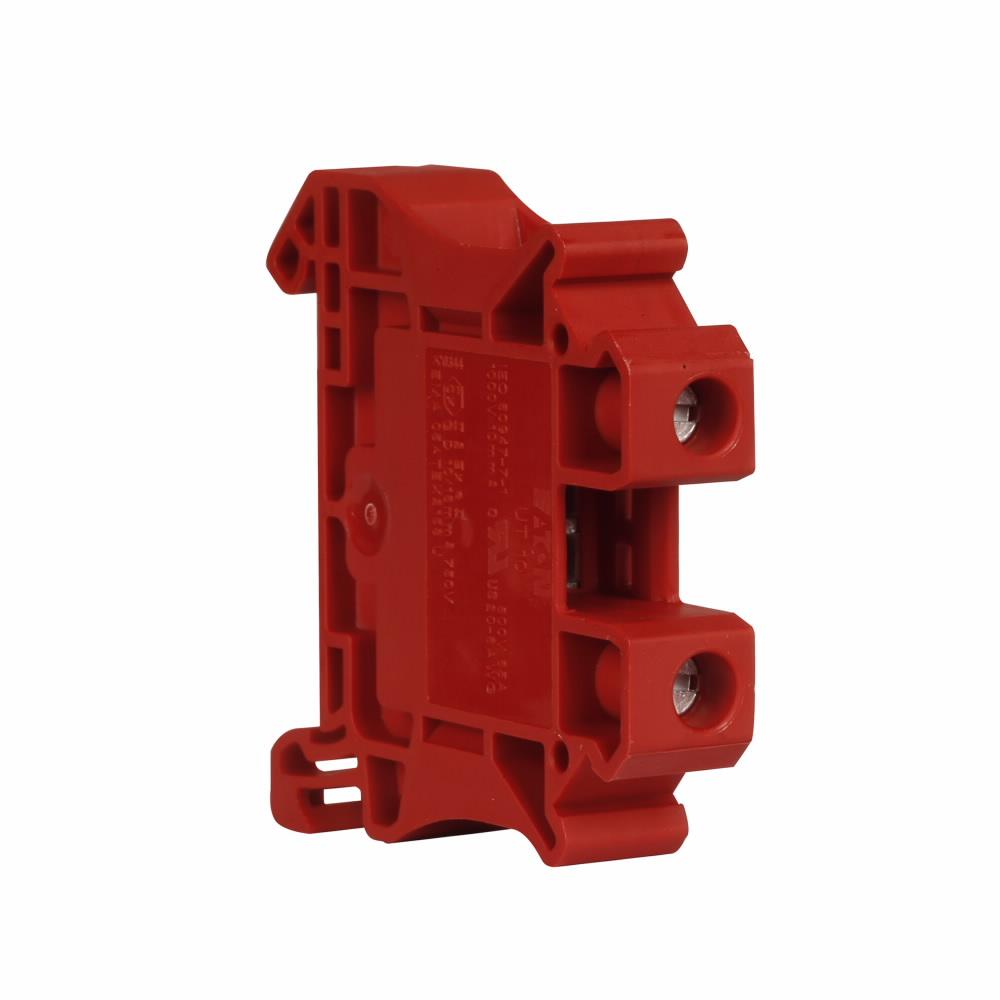

EATON Terminal Block, 1-Level, Series: IEC-XB, 800 VAC, 32 A, 26 to 12 AWG Wire, 0.39 in Wire Strip Length, Feed-Through Terminal, 10.2 mm Spacing, 1.5 to 1.8 N-m Torque, DIN Rail Mounting, Terminal Screw Connection, -40 to 125 deg C, Polyamide 6.6, Red, 0.205 in D Dimensions
| Color | : | Red |
| Connection Type | : | Terminal Screw |
| Dimensions | : | 0.205 in D |
| Material | : | Polyamide 6.6 |
| Series | : | IEC-XB |
| Spacing | : | 10.2 mm |
| Temperature Rating | : | -40 to 125 deg C |
| Terminal Type | : | Feed-Through |
| Torque Rating | : | 1.5 to 1.8 N-m |
| Type | : | 1-Level |
| Wire Strip Length | : | 0.39 in |
| Voltage Rating | : | 800 VAC |
| Amperage Rating | : | 32 A |
| Wire Size | : | 26 to 12 AWG |
| Mounting Type | : | DIN Rail |
