Wiring Device-Kellems HBL2510SW

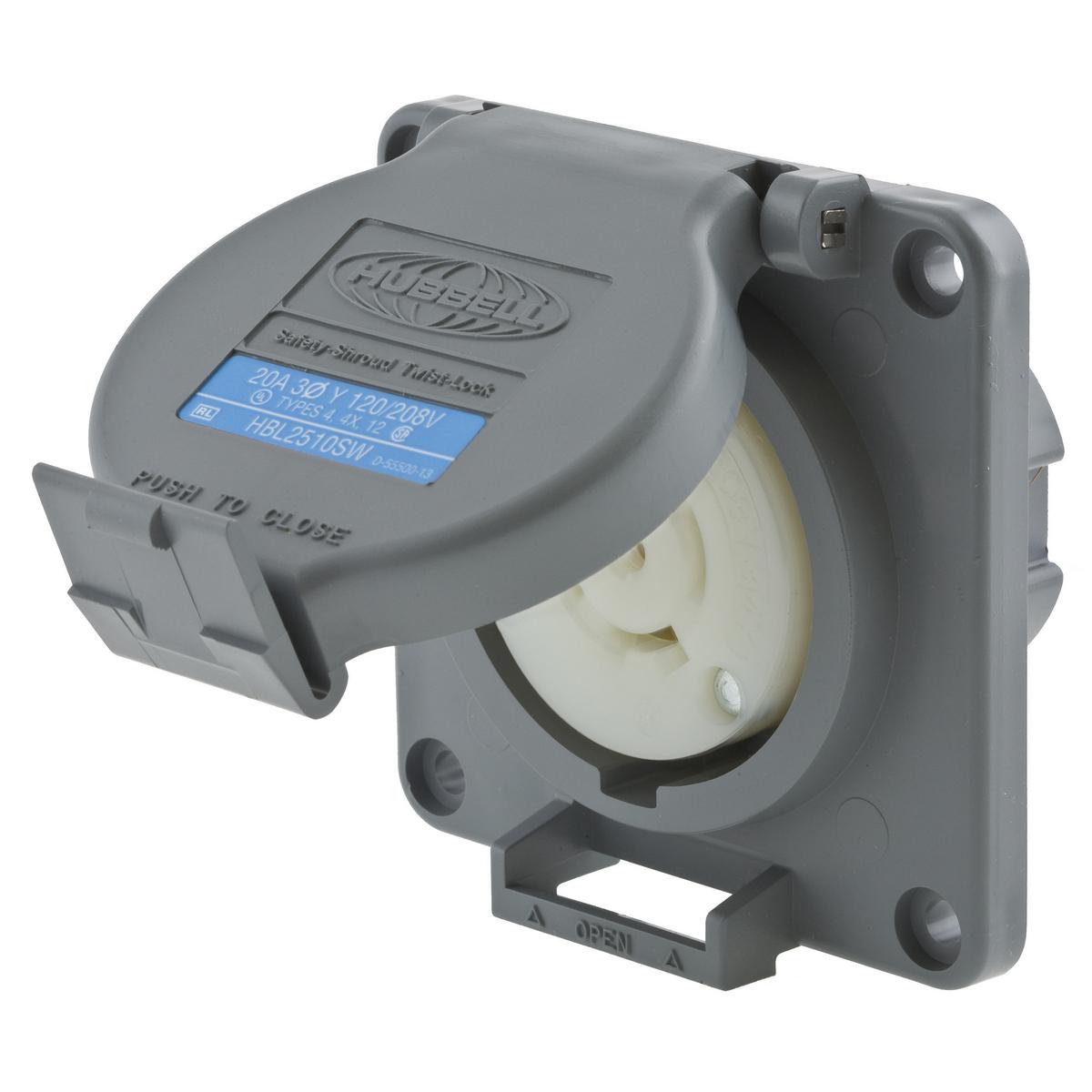

Wiring Device-Kellems HBL2510SW HBL® 3-Phase Heavy Duty Single Watertight Screw Mount Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Gray/White
- Manufacturer Name: Hubbell
- MPN: HBL2510SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231501
- FEPN: HBL2510SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2510SW, Locking Receptacle, 3-Phase Heavy Duty Single Watertight Screw Mount, Series: HBL®, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.9 in Dimensions
| Dimensions | : | 3.75 x 3.75 x 2.9 in |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Thermoplastic |
| NEMA Rating | : | L21-20R |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Heavy Duty Single Watertight Screw Mount |
| Voltage Rating | : | 120/208 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 4 |
| Number of Wires | : | 5 |
| Color | : | Gray/White |
- Withstands 2000 VAC dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent temperature rise
- #8-32 brass terminal and ground screw
- 14 to 8 AWG terminal accommodation
- 302/304 stainless steel multi-drive mounting screw
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
