Blackburn® J2D

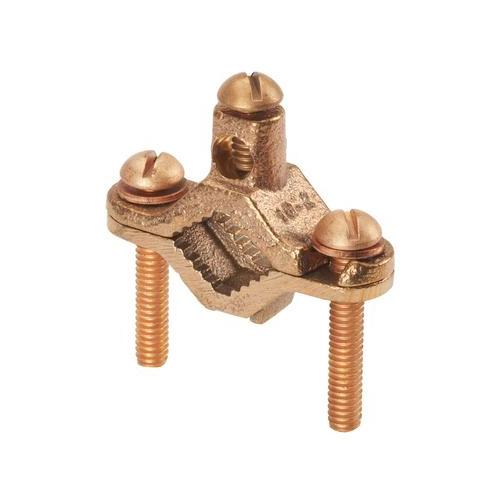

Blackburn® E-Z Ground® J2D Non-Insulated Ground Clamp, 10 to 2 AWG Conductor, Cast Bronze

  • Manufacturer Name: ABB
  • MPN: J2D
  • Brand Name: Blackburn®
  • UPC: 783786045204
  • FEPN: J2D TB
  • Min Order Qty: 1
  • Quantity Interval: 50
  • Inventory Availability loading loading

Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, Code compliant and reliable grounding system.

Blackburn® E-Z Ground® Ground Clamp, Non-Insulated, 1-1/4 to 2 in Pipe, Stranded Conductor, 10 to 2 AWG Conductor, Cast Bronze

Conductor Type       :      Stranded
Pipe Size       :      1-1/4 to 2 in
Type       :      Non-Insulated
Conductor Size       :      10 to 2 AWG
Material       :      Cast Bronze
  • High-strength, high conductivity copper alloy (over 80% copper)
  • Rated for direct burial
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_AJ-2_Specification_Sheet_CA.pdf
