Wiring Device-Kellems HBL5469VY

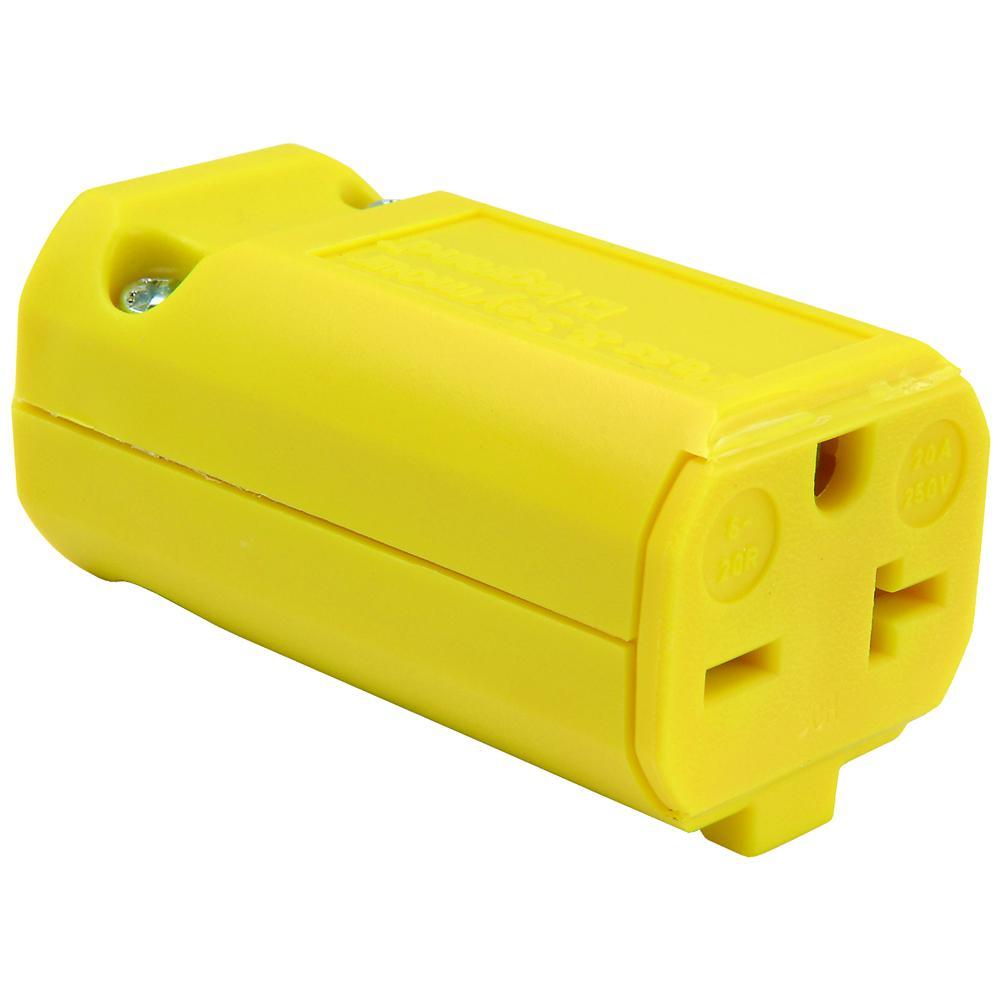

Wiring Device-Kellems Valise® HBL5469VY Female Grounding Insulated Cord Mount Straight Blade Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
- Manufacturer Name: Hubbell
- MPN: HBL5469VY
- Brand Name: Wiring Device-Kellems
- UPC: 783585013190
- FEPN: HBL5469VY HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Valise® Straight Blade Connector, Female Grounding Insulated Cord Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.38 x 1.25 x 0.88 in
| Cord Diameter | : | 0.22 to 0.66 in |
| Dimensions | : | 2.38 x 1.25 x 0.88 in |
| Enclosure | : | IP20 |
| Grade | : | Commercial/Industrial |
| Horsepower | : | 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | 6-20R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | Female Grounding Insulated Cord Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Yellow |
- Hinged one-piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
- Withstands 2000 VAC minimum dielectric voltage
- 18 to 12 AWG copper conductor terminal accommodation
- Certified for current interrupting at full rated current
- -40 to 75 deg C operating temperature
Instruction/Installation Manual
