T&B® 3302-TB
Send Print
  1. pin-int

T&B® 3302-TB

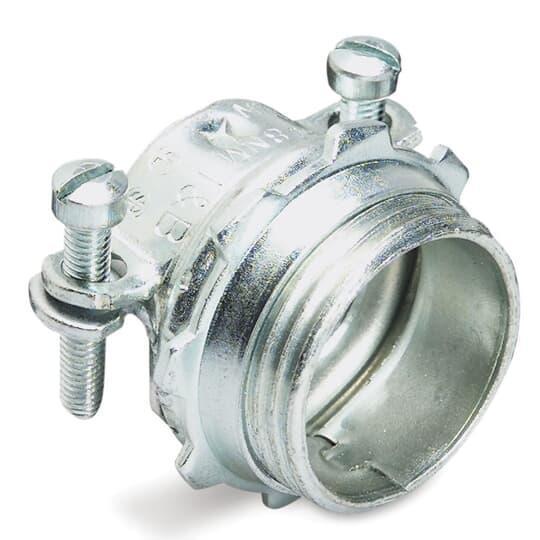

T&B® 3302-TB 2-Screw Non-Insulated Cable Connector With Slotted Screw, 1/2 in Trade, 0.25 to 0.59 in Cable Openings, Steel, Electro-Zinc Plated

  • Manufacturer Name: ABB
  • MPN: 3302-TB
  • Brand Name: T&B®
  • UPC: 786210033020
  • FEPN: 3302-TB TB
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

T&B® Cable Connector, 2-Screw Non-Insulated, 1/2 in, Cable Openings: 0.25 to 0.59 in, Flex/Non-Metallic Sheathed Cable, Straight, Steel, Electro-Zinc Plated, Metallic, 1-3/16 in L x 1-3/8 in W x 31/32 in H

Cable Type       :      Flex/Non-Metallic Sheathed
Color       :      Metallic
Connection Type       :      Straight
Dimensions       :      1-3/16 in L x 1-3/8 in W x 31/32 in H
Type       :      2-Screw Non-Insulated
Trade Size       :      1/2 in
Cable Openings       :      0.25 to 0.59 in
Material       :      Steel
Finish       :      Electro-Zinc Plated
  • Rounded cable grip and smooth bushing protect the cable sheath and wire insulation
  • Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable
  • An extra lip on the saddle closes the unused part of the connector opening
  • Non-metallic service entrance cable
  • 1/2 in knockout
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/T_B_3302SL_Specification_Sheet.pdf
