Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

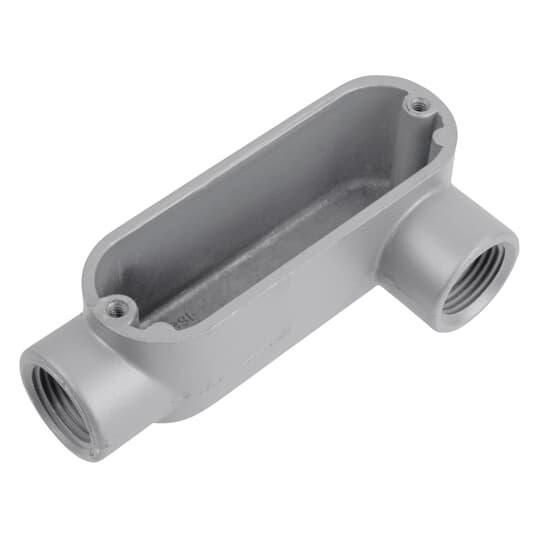

Red Dot® Conduit Body, Type LL, Series: A Series, 2 in Hub, 2 Hubs, 69.5 cu-in, NPT/Set Screw, Die Cast Aluminum, 10-3/16 in L x 3-15/16 in W x 3-7/16 in H
| Connection Type | : | NPT/Set Screw |
| Dimensions | : | 10-3/16 in L x 3-15/16 in W x 3-7/16 in H |
| Number of Hubs | : | 2 |
| Series | : | A Series |
| Type | : | Type LL |
| Hub Size | : | 2 in |
| Capacity | : | 69.5 cu-in |
| Material | : | Die Cast Aluminum |
- Retained stainless steel cover screws
- Smooth throats for easy wire pulling
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
- Threaded conduit bodies maintain a weather-resistant conduit system when used with covers and gaskets
- Left side access opening, 90 deg hub location
Specification Sheet
