Color-Keyed® 54260BE

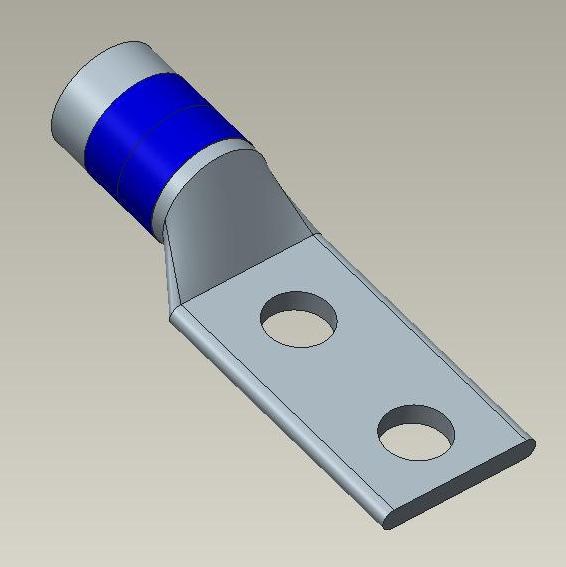

Color-Keyed® 54260BE 54200 2-Hole Non-Insulated Compression Lug, 2/0 AWG Copper Conductor, Die Code: 45, 1/2 in Stud, Copper
- Manufacturer Name: ABB
- MPN: 54260BE
- Brand Name: Color-Keyed®
- UPC: 786210981390
- FEPN: 54260BE TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug, 2-Hole Non-Insulated, Series: 54200, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 600 V AC to 35 kV, 1/2 in Stud, Blind End/Standard Barrel, 0.57 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, NEMA 570/2B Enclosure Rating, Tin Plated, 0.531 in Mounting Hole, Copper, Black
| Barrel Size | : | 0.57 in Dia |
| Barrel Type | : | Blind End/Standard |
| Color | : | Black |
| Mounting Hole Size | : | 0.531 in |
| Series | : | 54200 |
| Specifications | : | 1-3/4 in Stud Hole Spacing, NEMA 570/2B Enclosure Rating, Tin Plated |
| Type | : | 2-Hole Non-Insulated |
| Voltage Rating | : | 600 V AC to 35 kV |
| Conductor Size | : | 2/0 AWG |
| Conductor Type | : | Copper |
| Die Code | : | 45 |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- NEMA 570/2B
Specification Sheet
