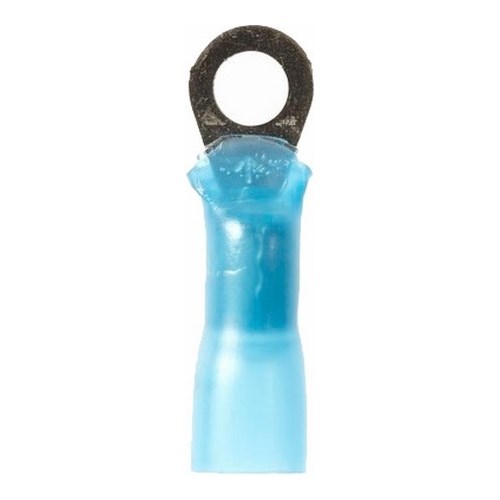

Panduit® Pan-Term™ PH14-8R-Q Type PH-R Heat Shrink Insulated Ring Terminal, 14 AWG Conductor, 1.03 in L, Brazed Seam/Standard Barrel, Copper, Blue
- Manufacturer Name: Panduit
- MPN: PH14-8R-Q
- Brand Name: Panduit®
- UPC: 074983818051
- FEPN: PH14-8R-Q PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term™ Ring Terminal, Type PH-R Heat Shrink Insulated, 14 AWG Conductor, #8 Stud, 1.03 in Length, Brazed Seam/Standard Barrel, 1/4 in L Barrel, Ring Tongue, 0.31 in W Tongue, 600 V, Specifications: 0.38 in Mounting Hole Size, 1.03 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 230 deg F, Copper, Tin Plated, Blue
| Barrel Size | : | 1/4 in L |
| Finish | : | Tin Plated |
| Specifications | : | 0.38 in Mounting Hole Size, 1.03 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure |
| Stud Size | : | #8 |
| Temperature Rating | : | 230 deg F |
| Tongue Size | : | 0.31 in W |
| Tongue Type | : | Ring |
| Type | : | Type PH-R Heat Shrink Insulated |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 14 AWG |
| Length | : | 1.03 in |
| Barrel Type | : | Brazed Seam/Standard |
| Material | : | Copper |
| Color | : | Blue |
- Heat shrinkable polyolefin insulated with hot melt sealant
- Standard barrel configuration
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
- 300 deg F shrink temperature
