The safety switch flex center is a special facility at the site of our Cleveland, Tennessee, plant that is dedicated to providing customized safety switches that meet customer's challenging applications.

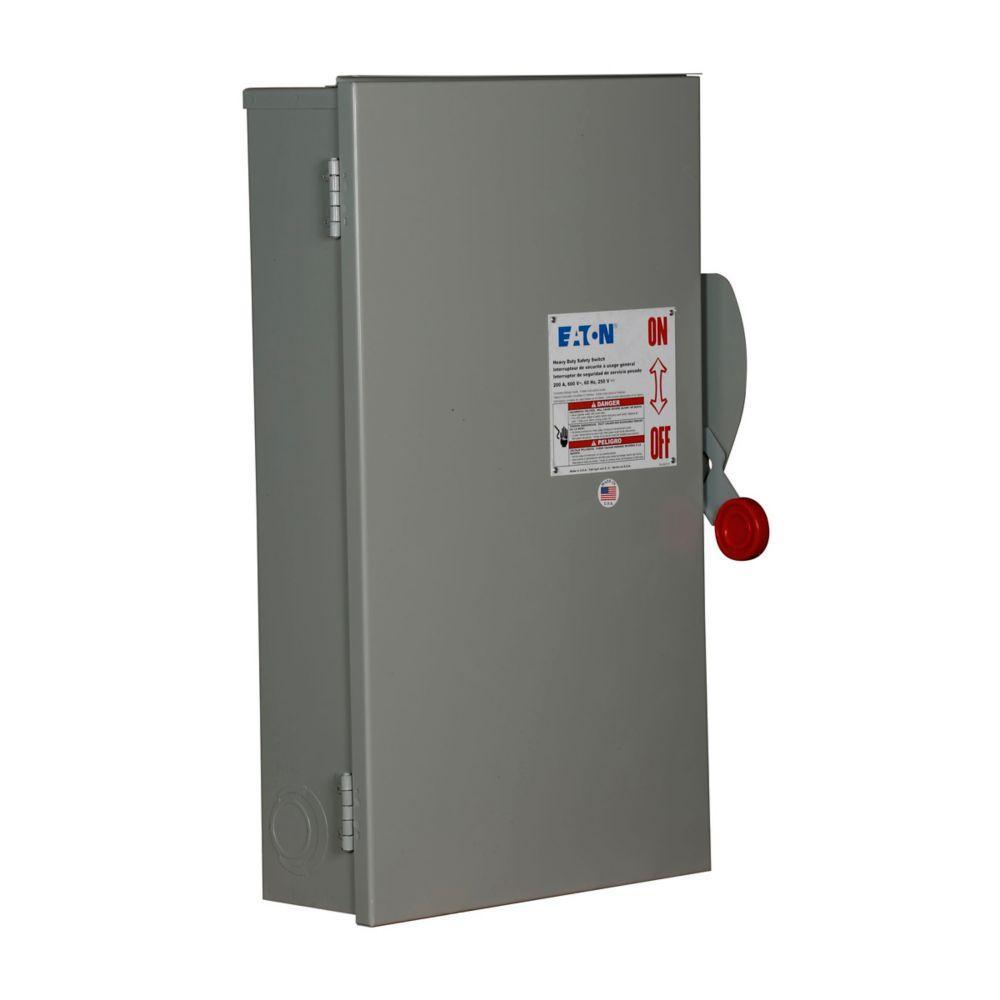

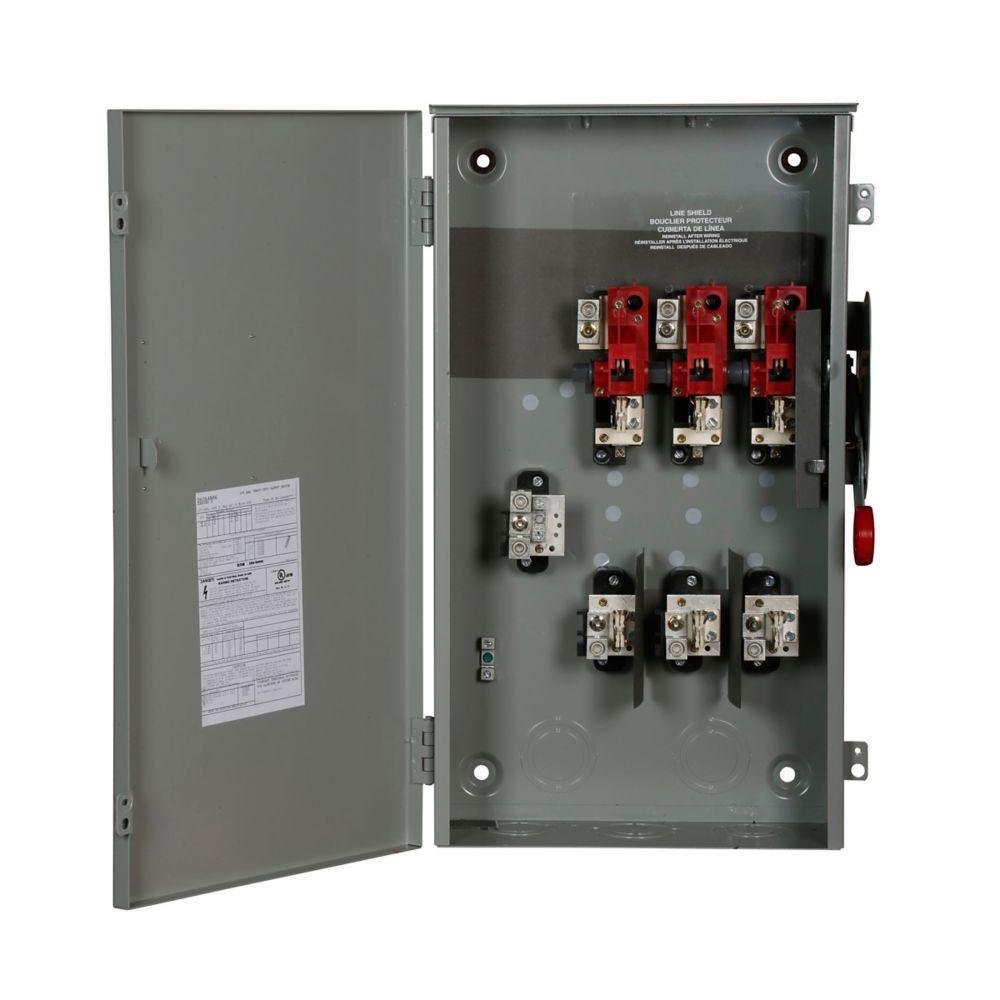

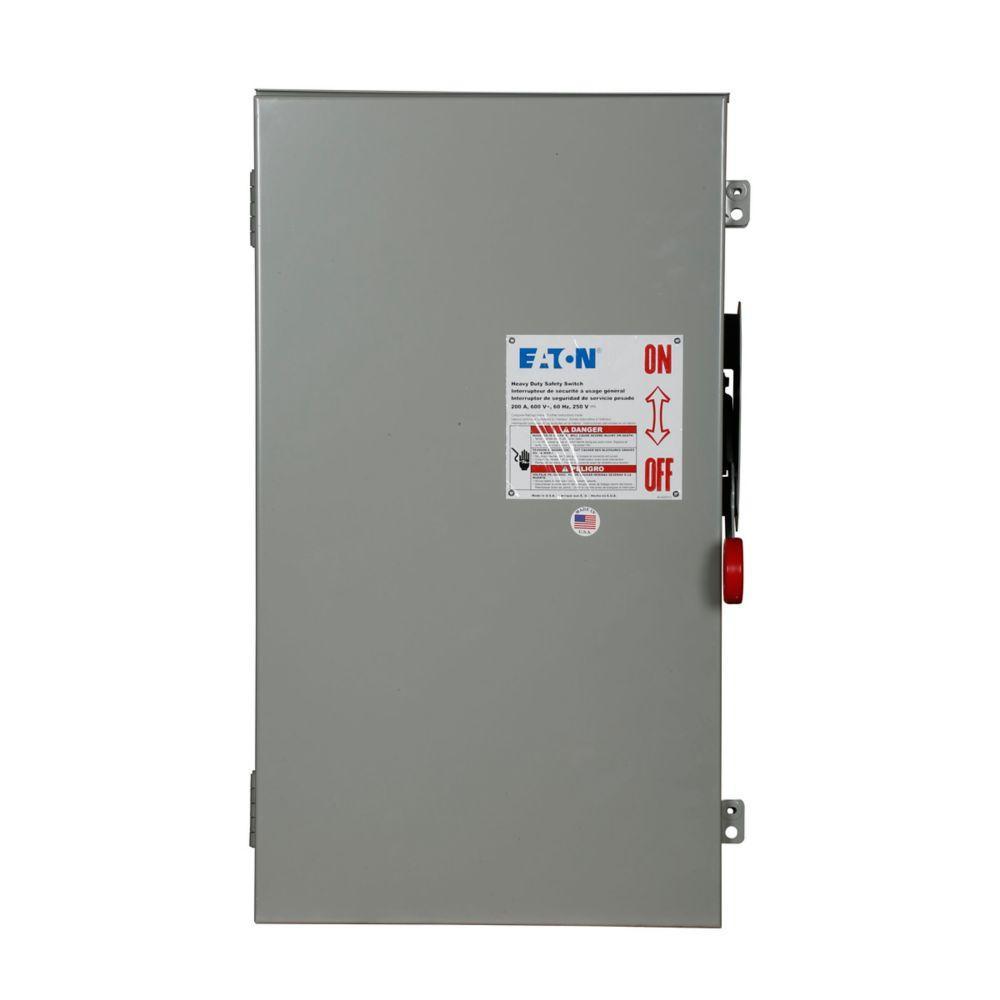

EATON Safety Switch, Heavy Duty Fusible Rainproof, Series: K Series, 600 VAC, 200 A, 50 hp, 125 hp, 150 hp, 1/3 ph, 3 Pole, 4 Wires, 200 kA Short Circuit, TPST, Class H Insulation, NEMA 3R, 30 in L x 18 in W x 9-1/2 in H, Steel, Galvanized/Painted

• Fusible and non-fusible switches are 100% load break and 100% load make rated
• The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
• Suitable for service entrance applications unless otherwise noted
• Deionizing arc chutes, arc chutes confine and suppress the arcs produced by opening contacts under load
• Mechanically interlocked cover to prevent easy access when the switch is in the On position
• Clearly visible palm fitting red handle
• Premium 316 grade stainless steel enclosures offer better corrosion resistance in the presence of most chemicals, salts and acids and is more resistant to marine atmospheres
• Visible double break quick make, quick break blades
• Visible On/Off indications
• 30 to 1200 a NEMA 12 designs convertible to NEMA 3R by opening factory installed drain hole
• Tri-lingual nameplates
• Design for all series K heavy duty
• Fusible without neutral configuration

• Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH321FGKJ_User_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH364NRK_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=-DDjTjcaPL8
