Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

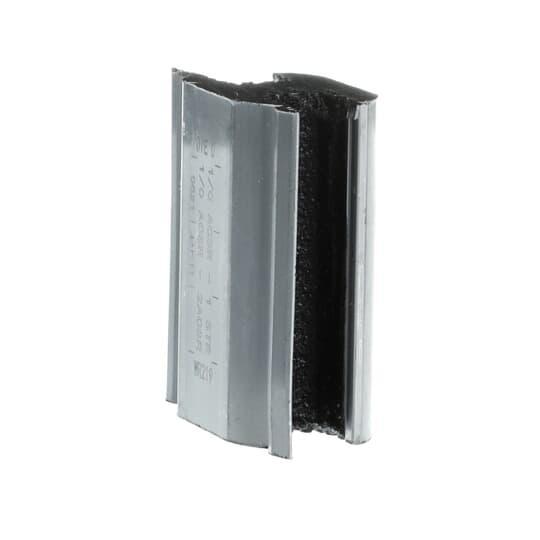

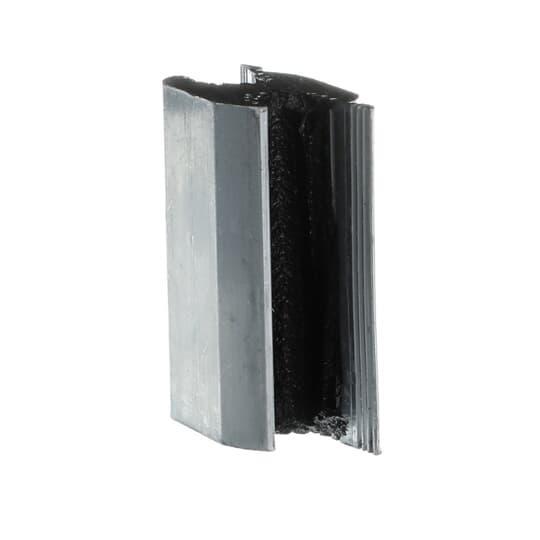

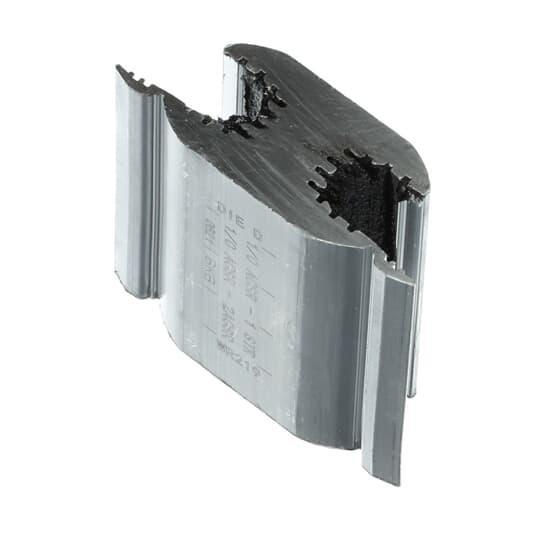

Blackburn® Compression H-Tap Connector, Type WR Wide Range, H, 1 to 1/0 AWG ACSR, 1 to 1/0 AWG Stranded Main/Run, 2 to 1/0 AWG ACSR, 1 to 1/0 AWG Stranded Tap, ACSR/Aluminum/Copper/Solid/Stranded Conductor, D, D3 Die Code, 0.324 to 0.398 in Dia Main Conductor, 0.316 to 0.398 in Dia Tap Conductor, 2-Conductor, 90 deg C, Aluminum, 1-7/8 in L

• Made of 1350 aluminum alloy for high strength and high conductivity
• Standard compression tools and dies install all sizes no special tools needed
• Field proven ribbed design enables excellent connector/conductor contact without distorting the conductor shape
• Fold-in tabs provide tab interlock as tool closes
• Prefilled with oxide inhibitor held captive in the rib/connection area
• Compression/crimp connection

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_WR775_Specification_Sheet.pdf
• SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_98c21227d69377fa51ef6e4afe40b08b802d3638f01303cfaab8b21d36de1d01.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b37d85507b1f6add3ff339e47088273a16fe14512ad19f01891d0feb2f4b2ac7.pdf
