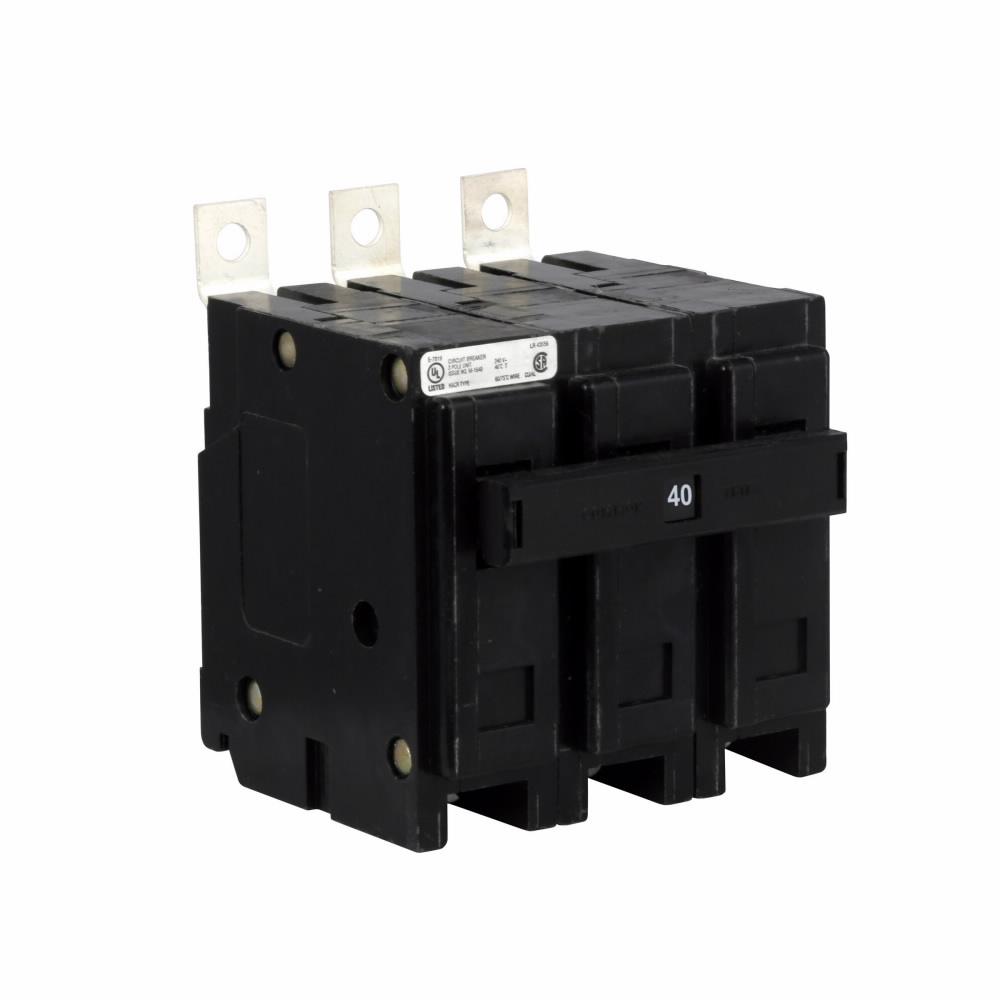

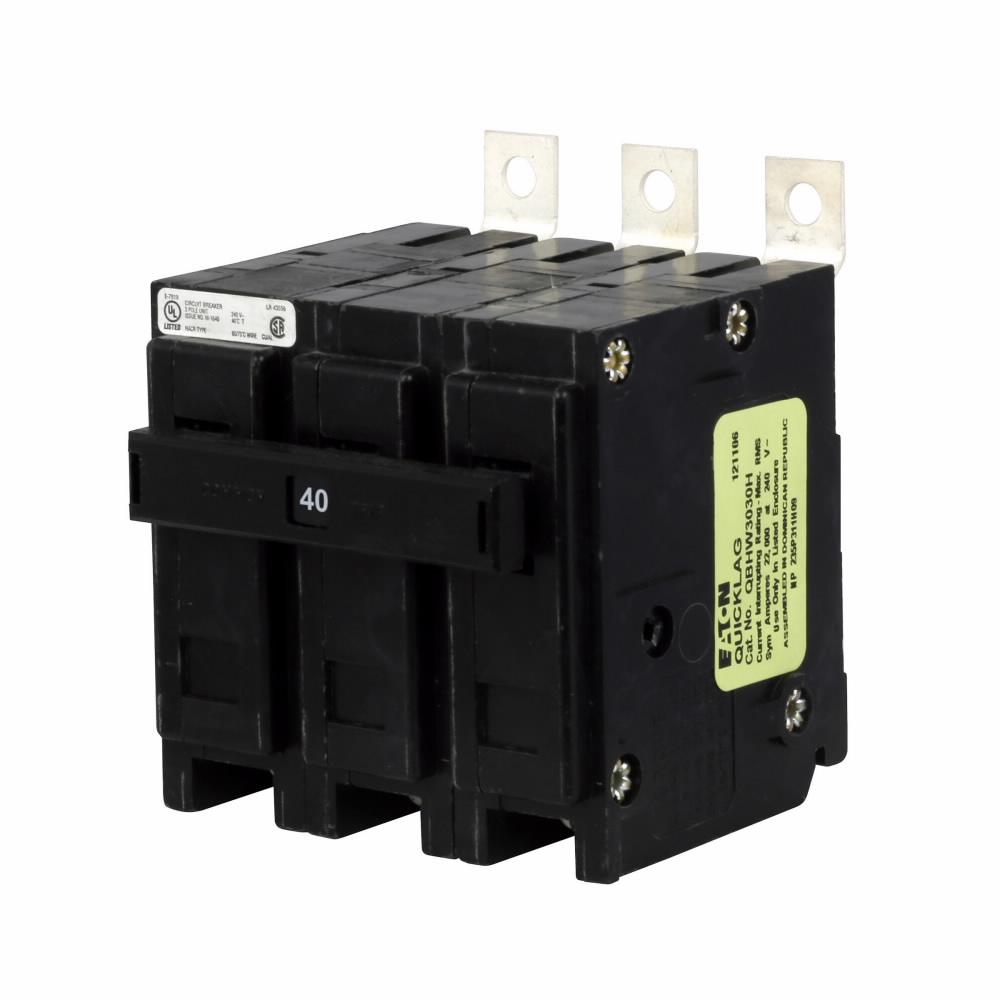

EATON QBHW3040H
EATON QuickLag® QBHW3040H Type QBHW Miniature Circuit Breaker, 240 VAC, 40 A, 22 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
- Manufacturer Name: Eaton
- MPN: QBHW3040H
- Brand Name: EATON
- UPC: 786679393406
- FEPN: QBHW3040H EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON bolt-on miniature circuit breakers offer superior protection for panel boards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from 1, 2 or 3-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from bolt-on types BAB, QBHW, HBAX and HBAW.
EATON QuickLag® Miniature Circuit Breaker, Type QBHW, 240 VAC, 40 A, 22 kA Interrupt, Non-Interchangeable/Thermal Magnetic Trip, 3 Pole, 3 ph, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.8 x 3.2 x 4.7 in
| Dimensions | : | 3.8 x 3.2 x 4.7 in |
| Mounting Type | : | Bolt-On |
| Phase | : | 3 |
| Temperature Rating | : | 40 deg C |
| Type | : | Type QBHW |
| Wire Size | : | 14 to 4 AWG |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 40 A |
| Interrupt Rating | : | 22 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Non-Interchangeable/Thermal Magnetic |
- Flexible power feed connection
- Field mountable accessories make installations and on-site custom configuration easy
