Eaton's full-range of rotary disconnects offers a compact, economical, and high-quality choice for switching and isolation spanning a range from 16A - 1200A. The R5 Series of switches are UL 508 listed devices, suitable for use as motor disconnects. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance or anywhere a local means of disconnect is needed or required.

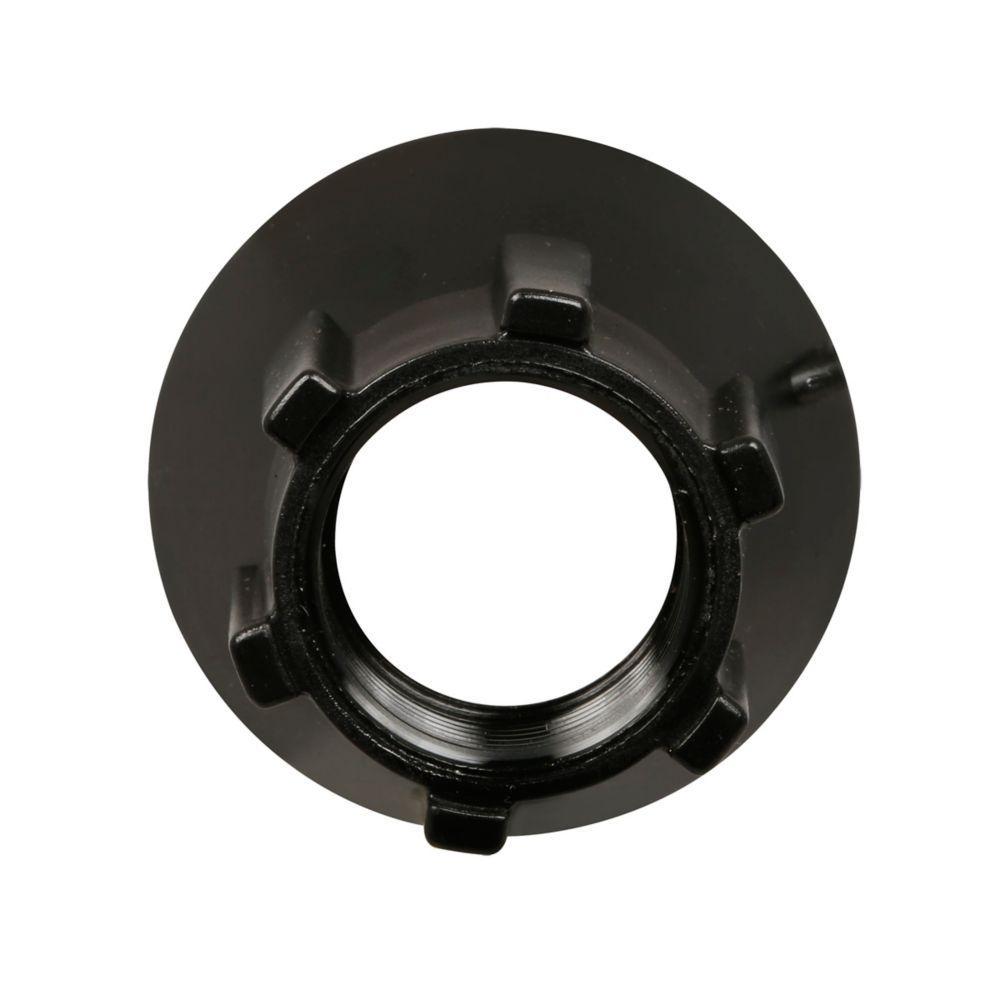

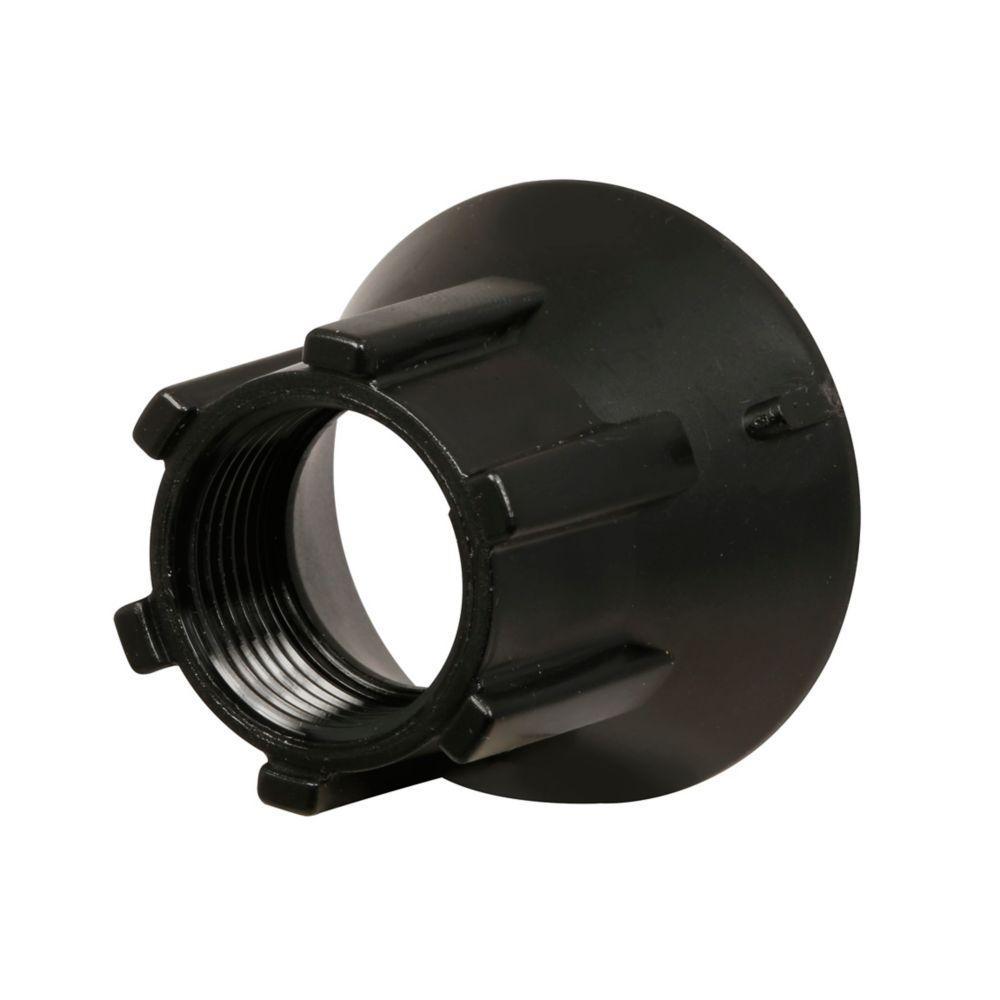

EATON Rotary Disconnect Guide Cone, Series: R5, For Use With: SH00, SH0 Handle and R5 Series Rotary Disconnect, Specifications: 16 to 80 A, 2 in L x 2 in W x 2 in H Dimensions
| Dimensions | : | 2 in L x 2 in W x 2 in H |
| Series | : | R5 |
| Suitable For Use With | : | SH00, SH0 Handle and R5 Series Rotary Disconnect |
| Specifications | : | 16 to 80 A |
- The guide cone facilitates an easier connection between the shaft and a SZ 00 or SZ 0 external selector handle
- It allows the shaft up to 10 mm of vertical play when making the connection
