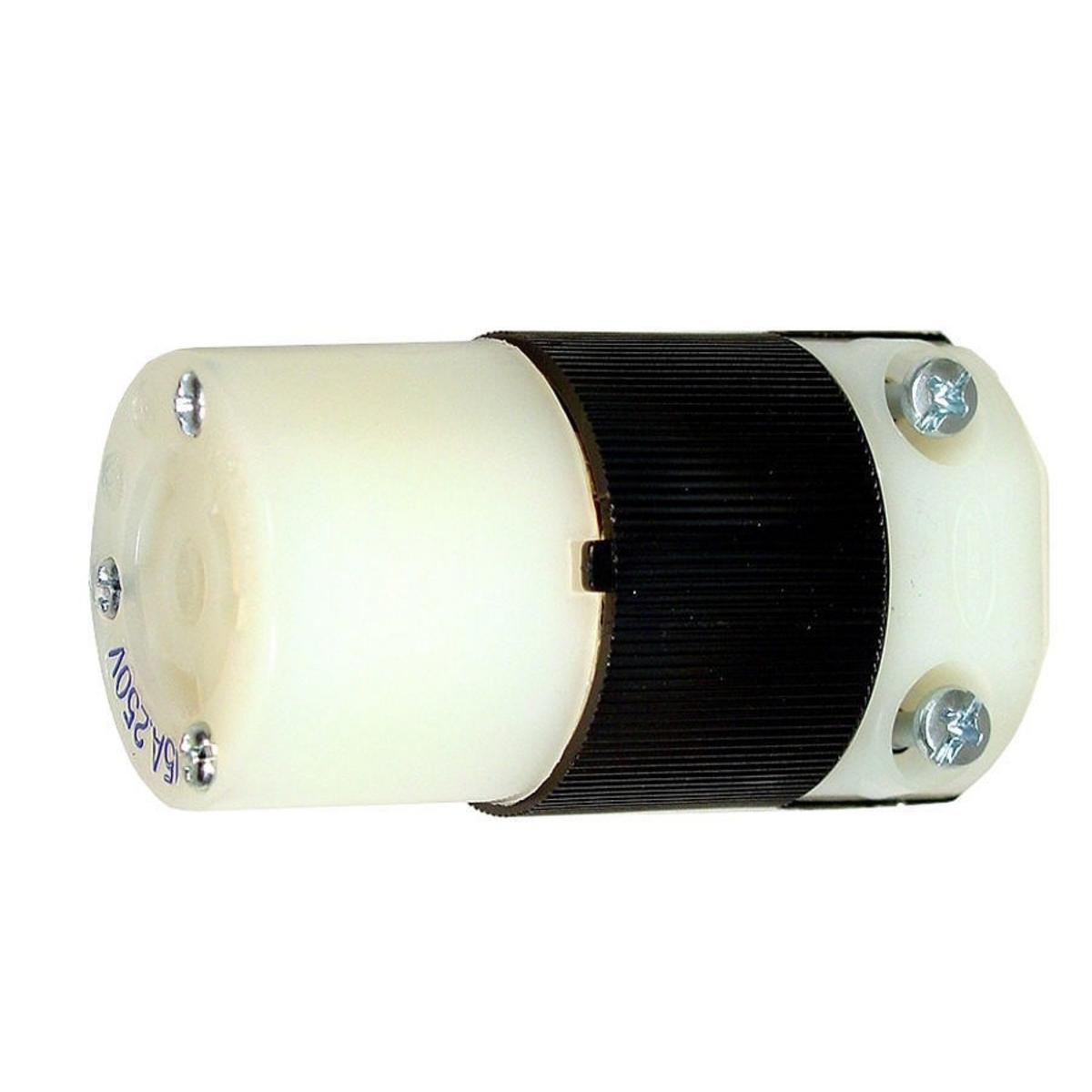

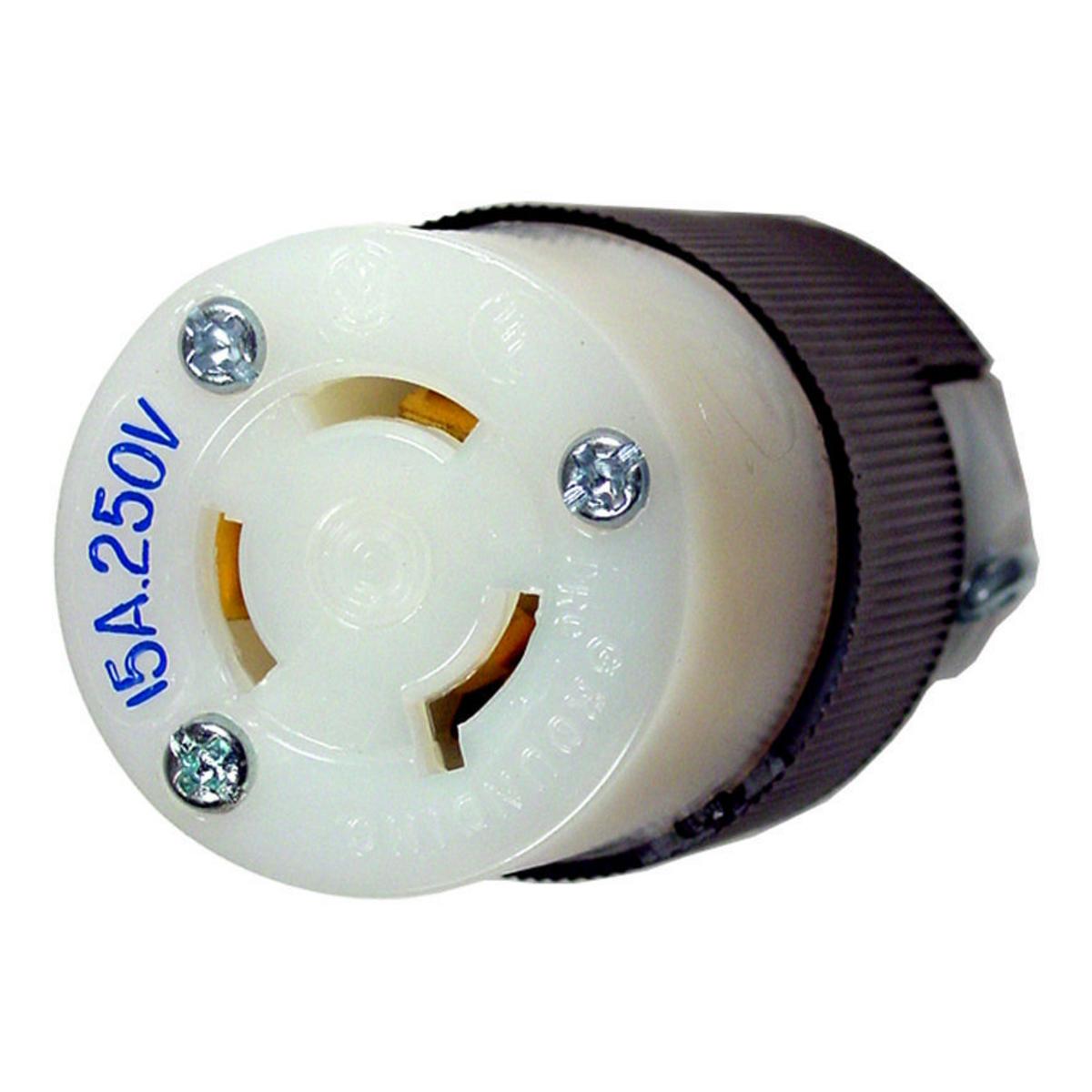

Wiring Device-Kellems HBL4579C
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4579C Heavy Duty Non-Grounding Cord Mount Locking Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL4579C
- Brand Name: Wiring Device-Kellems
- UPC: 783585170107
- FEPN: HBL4579C HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Heavy Duty Non-Grounding Cord Mount, 250 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, L6-15R NEMA Rating, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 1.53 x 1.53 x 2.78 in
| Cord Diameter | : | 0.23 to 0.72 in |
| Dimensions | : | 1.53 x 1.53 x 2.78 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | L6-15R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Heavy Duty Non-Grounding Cord Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black/White |
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE® insert accommodates a wide range of cord diameters
- Clear polycarbonate terminal retainer
- Natural white nylon cord clamp material, body contact carrier material
- Steel nickel plated terminal clamp
- Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
- Steel zinc plated cord clamp screw, body holding screw
- 15 A, 14 AWG terminal accommodation
- Withstands 2000 VAC dielectric voltage
