Color-Keyed® 54110

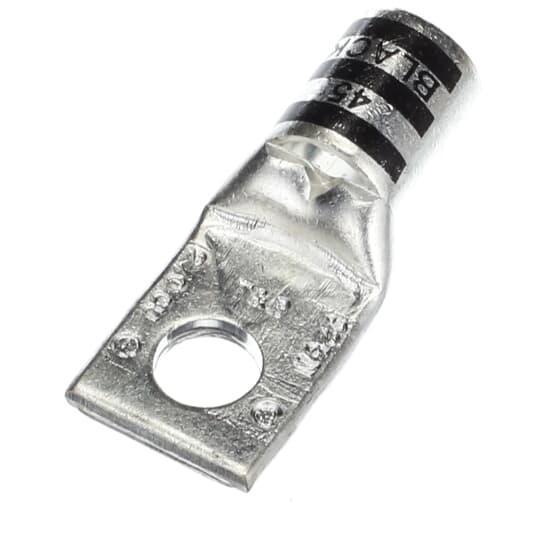

Color-Keyed® 54110 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 2/0 AWG Copper Conductor, Die Code: 45, 3/8 in Stud, Copper
- Manufacturer Name: ABB
- MPN: 54110
- Brand Name: Color-Keyed®
- UPC: 786210541105
- FEPN: 54110 TB
- Min Order Qty: 1
- Quantity Interval: 10
-
Inventory Availability
-
Retail Price:
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 35 kV, 3/8 in Stud, Straight Tongue, 0.93 in L x 0.83 in W x 0.13 in THK Tongue, 1.93 in Overall Length, Standard Barrel, 0.57 in Dia Barrel, Specifications: Tin Plated, 0.406 in Mounting Hole, Copper, Black
| Barrel Size | : | 0.57 in Dia |
| Barrel Type | : | Standard |
| Color | : | Black |
| Mounting Hole Size | : | 0.406 in |
| Overall Length | : | 1.93 in |
| Series | : | 54100 |
| Specifications | : | Tin Plated |
| Tongue Size | : | 0.93 in L x 0.83 in W x 0.13 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole Non-Insulated |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 2/0 AWG |
| Conductor Type | : | Copper |
| Die Code | : | 45 |
| Stud Size | : | 3/8 in |
| Material | : | Copper |
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
Instruction/Installation Manual
