Pos-E-Kon® DIN standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.

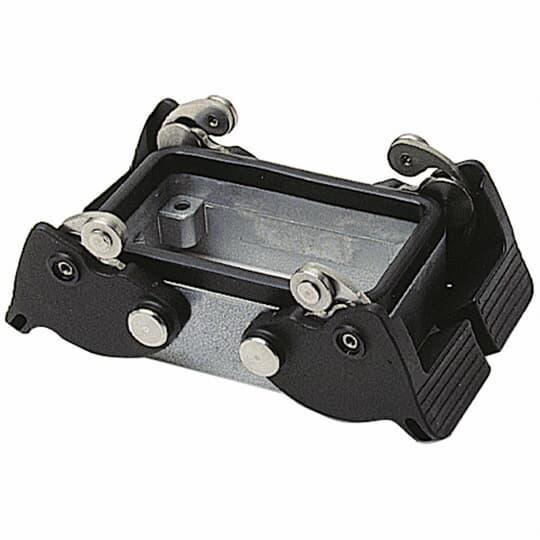

Pos-E-Kon® Locking Panel Base, Double Lever, Series: B Series, Rear Entry Position, Panel Mounting, For Use With: B16, C6, V6, D40 and DD72 Series Housing, -40 to 257 deg F, Specifications: 10/16/35 A, 600 V AC, IP65, Die Cast Aluminum, Epoxy Powder Coated, 5.16 in L x 2.28 in W x 1.06 in H Dimensions
| Dimensions | : | 5.16 in L x 2.28 in W x 1.06 in H |
| Finish | : | Epoxy Powder Coated |
| Series | : | B Series |
| Specifications | : | 10/16/35 A, 600 V AC, IP65 |
| Suitable For Use With | : | B16, C6, V6, D40 and DD72 Series Housing |
| Temperature Rating | : | -40 to 257 deg F |
| Type | : | Double Lever |
| Entry Position | : | Rear |
| Mounting Type | : | Panel |
| Material | : | Die Cast Aluminum |
- 16 contacts
- IP65 enclosure
- Laser etched labeling for all metal housings and hot stamped labeling on contact carrier inserts
- Non-slip comfortable grip for easier locking and unlocking
- IP65 locked positions per DIN VDE 0470
Specification Sheet
