IDEAL® 46-602

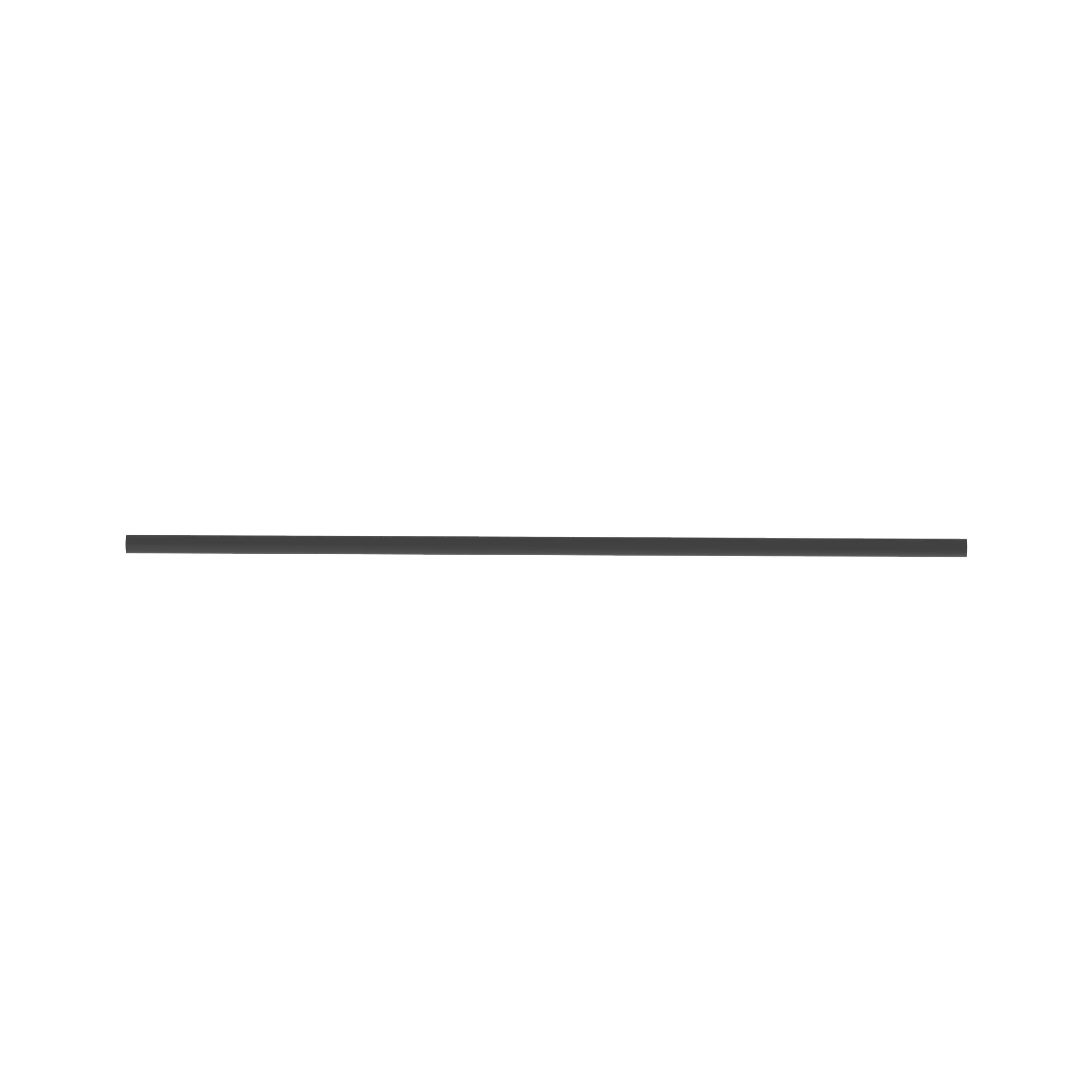

IDEAL® Thermo-Shrink® 46-602 Heat Shrink Tubing, 0.122 in ID Expanded, 0.047 in ID Recovered, 0.017 in THK Wall Recovered, 4 ft L, Polyolefin, Black
- Manufacturer Name: Ideal Industries
- MPN: 46-602
- Brand Name: IDEAL®
- UPC: 783250466023
- FEPN: 46-602 II
- Min Order Qty: 1
- Quantity Interval: 5
-
Inventory Availability
-
Retail Price:
IDEAL® Thermo-Shrink® Heat Shrink Tubing, 600 VAC, 0.122 in ID Expanded, 0.047 in ID Recovered, Thin Wall, 0.017 in Wall Thickness Recovered, 14 to 12 AWG Wire, 2:1 Shrink Ratio, 4 ft Length, -55 to 125 deg C, 70 deg C Shrink, Polyolefin, Black
| Shrink Ratio | : | 2:1 |
| Shrink Temperature | : | 70 deg C |
| Temperature Rating | : | -55 to 125 deg C |
| Voltage Rating | : | 600 VAC |
| Wall Type | : | Thin |
| Wire Size | : | 14 to 12 AWG |
| Inner Diameter Expanded | : | 0.122 in |
| Inner Diameter Recovered | : | 0.047 in |
| Wall Thickness Recovered | : | 0.017 in |
| Length | : | 4 ft |
| Material | : | Polyolefin |
| Color | : | Black |
- Polyolefin material electrically insulates and protects inline components, disconnect terminals and splices with its high strength and excellent resilience
- Use to bundle wires for very flexible light duty harnesses
- Resistant to common fluids and solvents
- 30 Percent eccentricity
- No PBBs and PBBEs
- +/-5 Percent longitudinal shrinkage
- Highly flame-retardant and flexible, resistant to common fluids and solvents
RoHS
