Thomas & Betts is pleased to introduce Spec-Kon® crimp terminals, disconnects and splices. Ideal for OEM applications, the Spec-Kon® line can be used anywhere a high number of terminations are required every day, such as the wiring harness, panelboard, telecommunications and automotive industries.

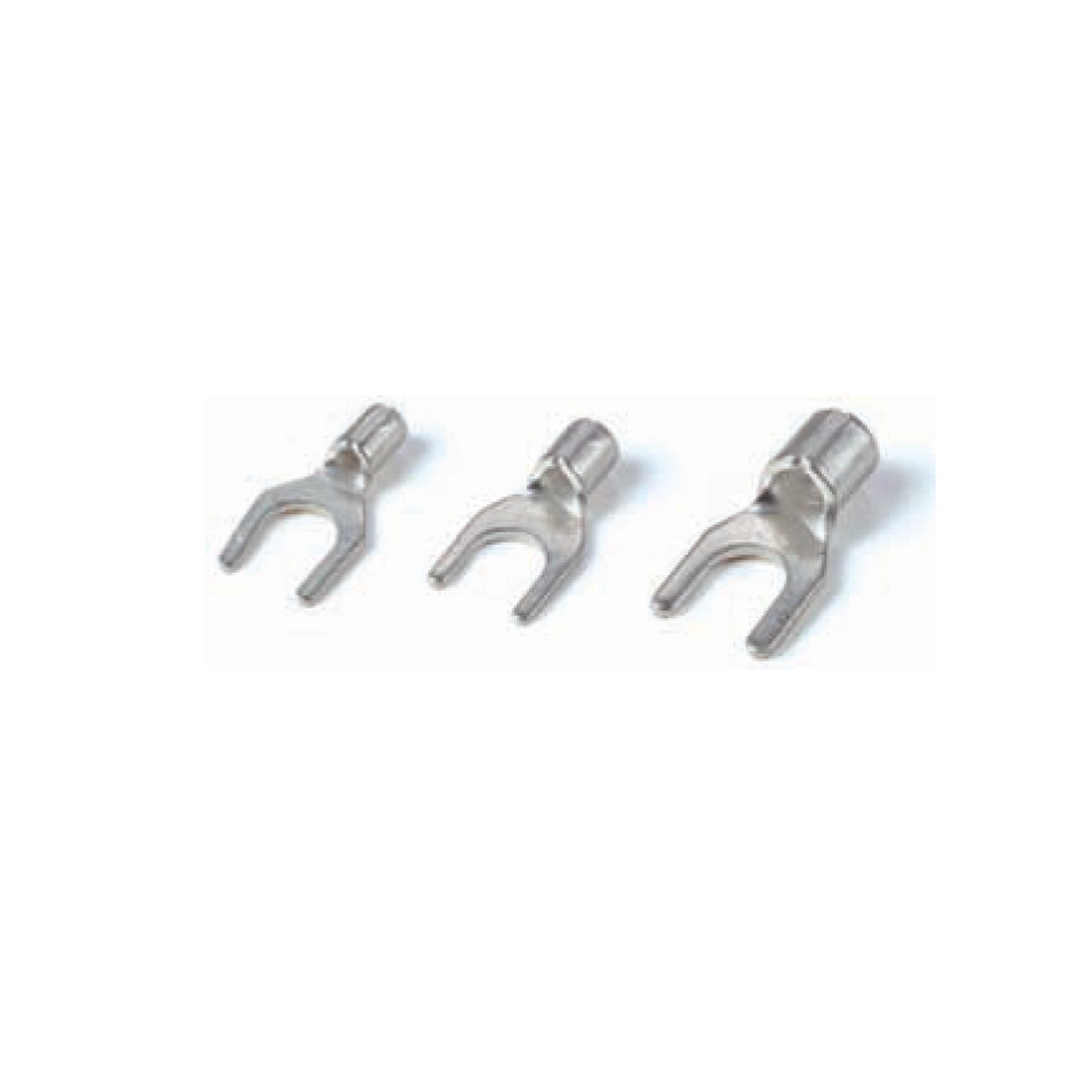

Spec-Kon® Fork Terminal, Non-Insulated, 12 to 10 AWG Conductor, 1/4 in Stud, 0.728 in Length, Brazed Seam/Chamfered/Internal Serration Barrel, 0.134 in ID x 0.22 in OD x 0.236 in L Barrel, 0.354 in W x 0.039 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, Copper, Electro-Plated Tin

• Brazed seam ensures barrel does not separate during crimping
• Chamfered barrel entry smoothing the barrel entry edge facilitates wire insertion
• Internal barrel serrations - during crimping, the wire will cold flow into serrations, giving lower resistance connections and improving tensile strength
• Size marking - wire range is stamped on the tongue (metric and English) for easy access to the terminal size without drawings/packaging
• Electro tin plating provides excellent corrosion resistance, superior finish for better looking installation
• Fast and easy to install without removing the terminal block screw

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c0d9605dab9fc526b1051e75adab6eaf43ec6298551ce420e6f8a597aa13b2d9.pdf
