Russellstoll® DS6307MP000

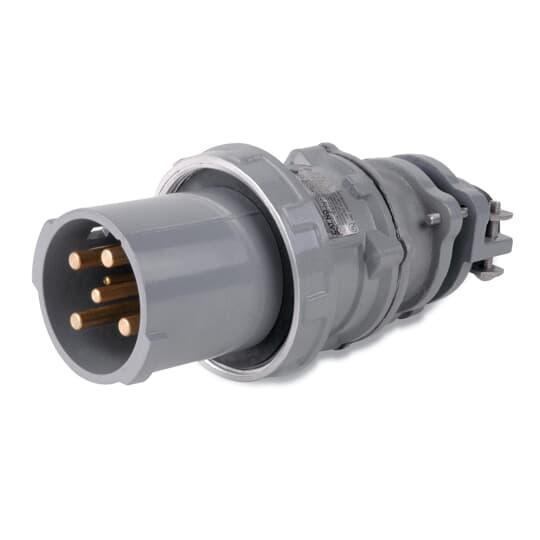

Russellstoll® Max-Gard® DS6307MP000 Standard Waterproof Male Pin Plug With Screw Collar, 125/250 V AC, 60 A, 3 Poles, 4 Wires
- Manufacturer Name: ABB
- MPN: DS6307MP000
- Brand Name: Russellstoll®
- UPC: 708917191889
- FEPN: DS6307MP000 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Russellstoll® Max-Gard® Male Pin Plug, Standard Waterproof, 125/250 V AC, 60 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X/6, Industrial Grade, -40 to 130 deg C, Pressure-Type Solderless Screw Terminal, Cast Aluminum, 9-1/8 in H Dimensions
| Dimensions | : | 9-1/8 in H |
| Frequency Rating | : | 60 Hz |
| Grade | : | Industrial |
| Material | : | Cast Aluminum |
| NEMA Rating | : | NEMA 4X/6 |
| Temperature Rating | : | -40 to 130 deg C |
| Terminal Type | : | Pressure-Type Solderless Screw |
| Type | : | Standard Waterproof |
| Voltage Rating | : | 125/250 V AC |
| Amperage Rating | : | 60 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
- With 1-5/16 in bushing
- Without adapter and box
- Waterproof construction provides environmental separation at the front of each device (they dont have to be connected together just to be called "watertight")
- Center ground contact
- 24-single rated factory polarizations
- Gated deadfront construction
- Two optional control contacts
- O-rings/environmental separation, full line
- Complete line epoxy powder coated - standard
- All devices upon disconnect under load shall have provision so the arc is contained and extinguished within the insulation cavity, making it impossible to withdraw a live plug
- All devices shall be factory polarized for amperage, voltage, frequency and phase, thus providing a single voltage rating, single interface system
- The grounding of the device shall be accomplished through a separate center ground (earth) make first and break last pole on all devices for complete system grounding
- All devices shall accommodate up to four power pins plus a separate center ground pin and they shall be integral with the connector bodies (five pins total)
- Watertight capability shall be obtained by using a gasketed screw cap
