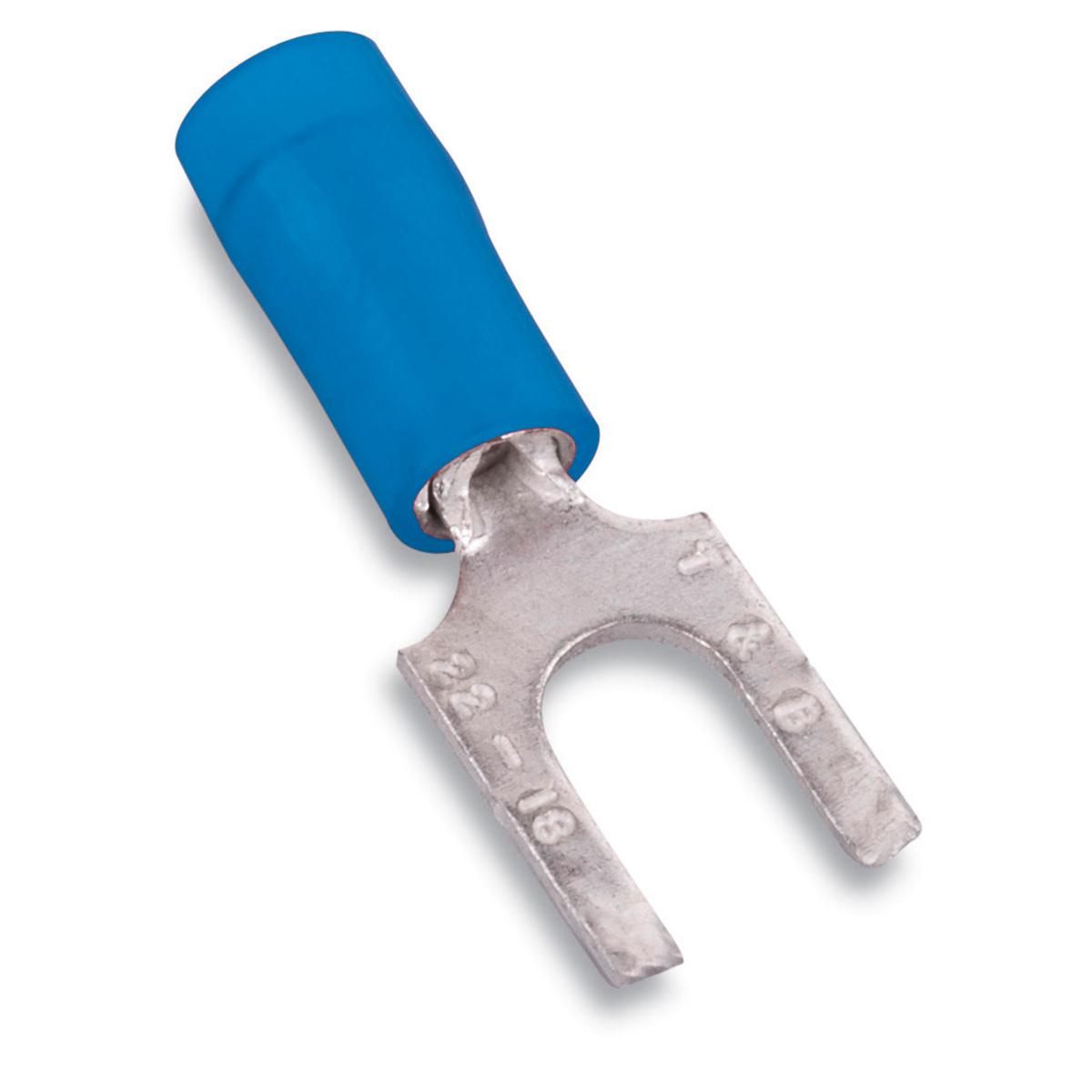

Sta-Kon® Fork Terminal, 18 to 14 AWG Conductor, #6 Stud, 0.79 in Length, Brazed Seam Barrel, 0.28 in W Tongue, 600 V, 0.19 in Maximum Insulation, 105 deg C, Copper, TiN Coated
| Finish | : | TiN Coated |
| Specifications | : | 0.19 in Maximum Insulation |
| Stud Size | : | #6 |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.28 in W |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 18 to 14 AWG |
| Length | : | 0.79 in |
| Barrel Type | : | Brazed Seam |
| Material | : | Copper |
- Fork terminals allow easy installation because screw needs only to be loosened
- A flanged-tongue fork with turned up tips provide for extra holding protection
- Blue nylon insulated
