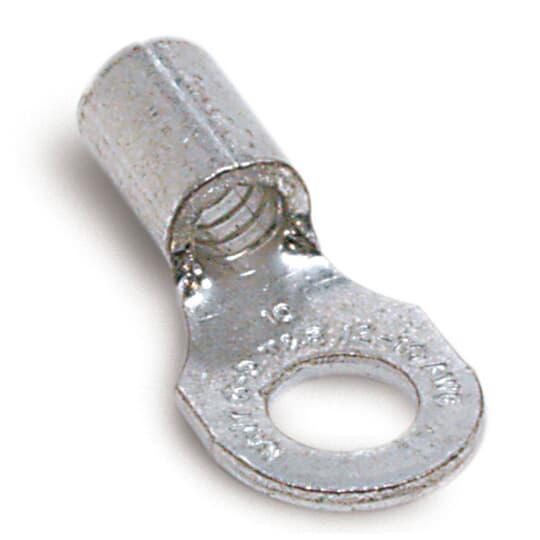

Sta-Kon® T10-6R-L
Catamount® T10-6R-L Non-Insulated Ring Terminal, 12 to 10 AWG Conductor, 0.618 in L, Brazed Seam/Chamfered Barrel, Copper, Metallic
- Manufacturer Name: ABB
- MPN: T10-6R-L
- Brand Name: Sta-Kon®
- UPC: 786209937209
- FEPN: T10-6R-L TB
- Min Order Qty: 1
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
Catamount® offers durable, value-priced performance for a variety of commercial and residential applications. The product line offers cable ties, wire connectors, application tools, wire pulling lubricants and more.
Catamount® Ring Terminal, Non-Insulated, Series: T Series, 12 to 10 AWG Conductor, #6 Stud, 0.618 in Length, Brazed Seam/Chamfered Barrel, 0.22 in W x 0.236 in H Barrel, Ring Tongue, 0.283 in W Tongue, 600 V, 150 deg C, Copper, Electro-Tin Plated, Metallic
| Barrel Size | : | 0.22 in W x 0.236 in H |
| Finish | : | Electro-Tin Plated |
| Series | : | T Series |
| Stud Size | : | #6 |
| Temperature Rating | : | 150 deg C |
| Tongue Size | : | 0.283 in W |
| Tongue Type | : | Ring |
| Type | : | Non-Insulated |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 12 to 10 AWG |
| Length | : | 0.618 in |
| Barrel Type | : | Brazed Seam/Chamfered |
| Material | : | Copper |
| Color | : | Metallic |
- Brazed seam ensures barrel does not separate during crimping
Specification Sheet
