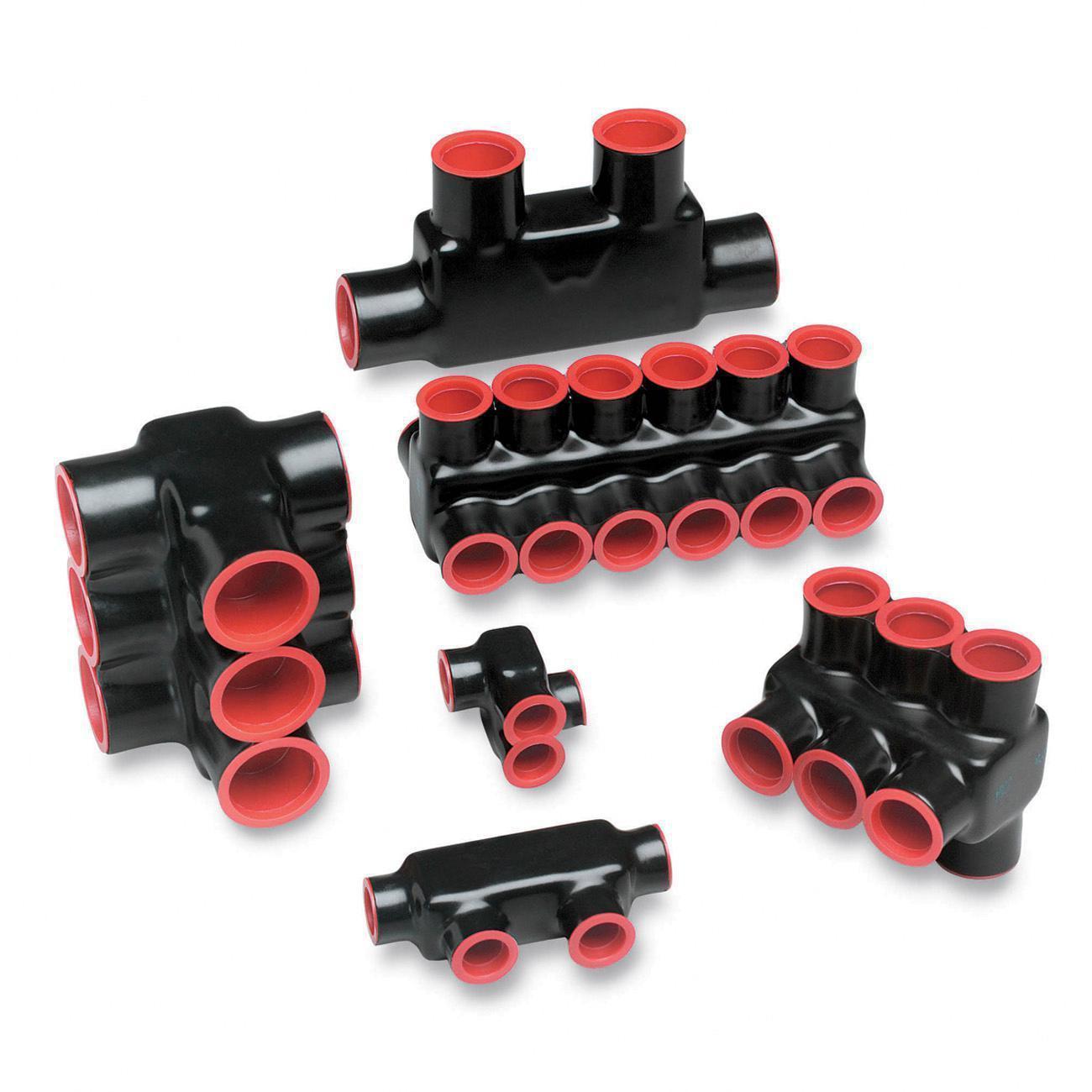

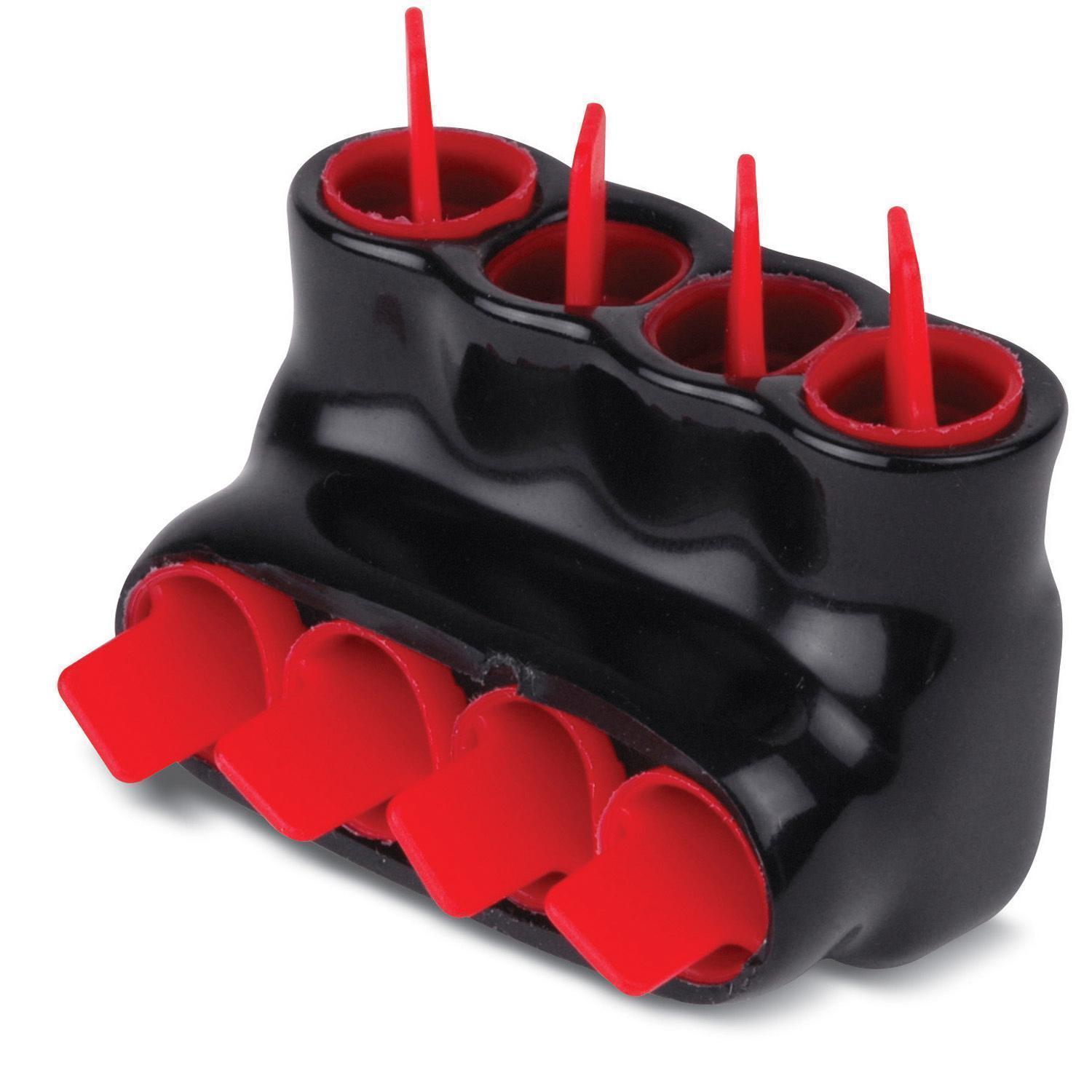

Blackburn® AMTS4144 Multi-Port Connector, Same Side, Series: AMT, Stranded Conductor, 14 to 4 AWG Conductor, 600 V AC, Specifications: 4-Port, 1/8 in Hex Screw, Black Color, 90 deg C, Aluminum/PVC, 2.12 in L x 1.25 in W x 1.25 in H Dimensions
| Dimensions |
: |
2.12 in L x 1.25 in W x 1.25 in H |
| Series |
: |
AMT |
| Specifications |
: |
4-Port, 1/8 in Hex Screw, Black Color |
| Temperature Rating |
: |
90 deg C |
| Type |
: |
Same Side |
| Voltage Rating |
: |
600 V AC |
| Conductor Size |
: |
14 to 4 AWG |
| Conductor Type |
: |
Stranded |
| Material |
: |
Aluminum/PVC |
- PVC insulation eliminates insulation failures and reduces outage costs
- Removable port and screw plugs
- Compact design provides space efficiencies
- All cable entry are equipped with an anti-oxidation compound
- Slotted screw
- Ultraviolet-resistant
-
