The high quality and built-in flexibility of the Blackburn® AMT connectors reduce the cost of field installations on splices, taps and terminations. Theyre easy and quick to install and provide superior insulation that lasts the life of the connection.

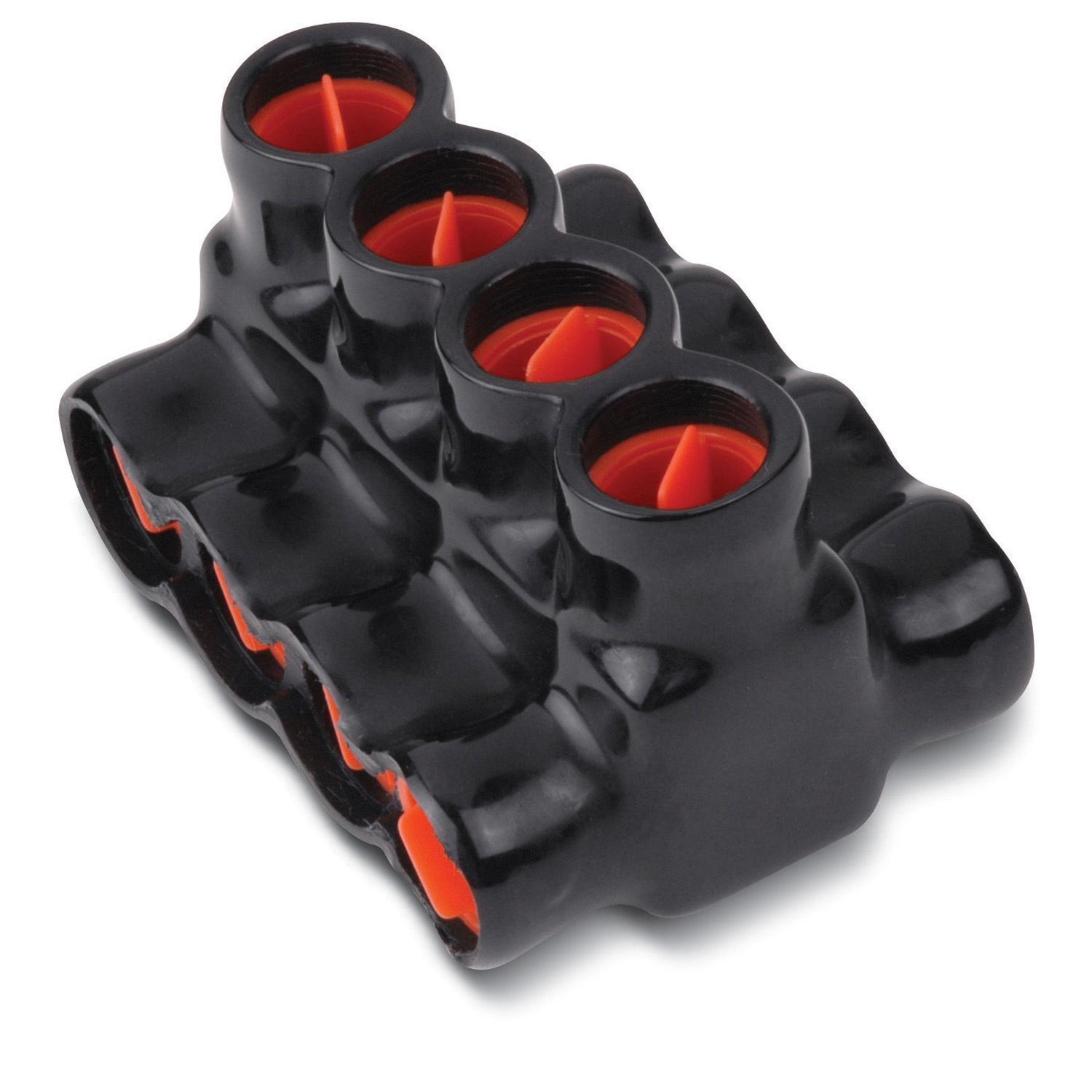

Blackburn®, AMTD25064, Double Sided Insulated Multi-Port Connector, Series: AMT, Copper Conductor, 600 V AC, Ultraviolet Resistance, Specifications: 6 AWG to 250 kcmil Stranded Wire, 5/16 in Hex, Black Color, 90 deg C, Aluminum, Black, 4.06 in L x 2.64 in W x 2.13 in H Dimensions
| Dimensions | : | 4.06 in L x 2.64 in W x 2.13 in H |
| Finish | : | Black |
| Resistance | : | Ultraviolet |
| Series | : | AMT |
| Specifications | : | 6 AWG to 250 kcmil Stranded Wire, 5/16 in Hex, Black Color |
| Temperature Rating | : | 90 deg C |
| Type | : | 4-Port Double Sided Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Type | : | Copper |
| Material | : | Aluminum |
- PVC insulation eliminates insulation failures and reduces outage costs
- Removable port and screw plugs
- Compact design provides space efficiencies
- All cable entry are equipped with an anti-oxidation compound
- Superior connections with lower installation costs
- Ultraviolet resistant
Specification Sheet
