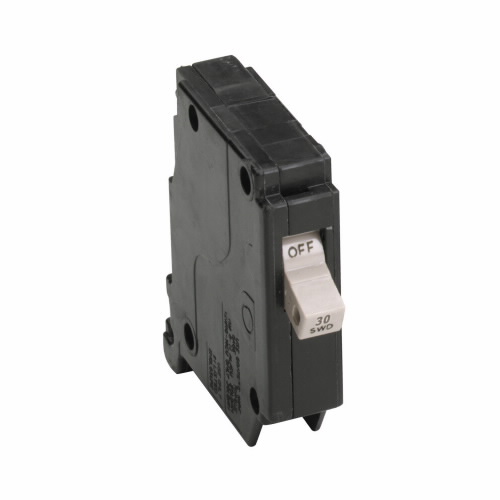

Cutler-Hammer CH130
Cutler-Hammer CH130 Type CH Standard Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
- Manufacturer Name: Eaton
- MPN: CH130
- Brand Name: Cutler-Hammer
- UPC: 782113101668
- FEPN: CH130 EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the off position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off the thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
Cutler-Hammer Circuit Breaker, Type CH Standard, 120/240 VAC, 30 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, (1) 14 to 8 AWG, (2) 14 to 10 AWG Wire, NEMA 1/3R Enclosure, Plug-On Mounting, 60 to 75 deg C, 3 in L x 3/4 in W x 3 in H Dimensions
| Dimensions | : | 3 in L x 3/4 in W x 3 in H |
| Enclosure Type | : | NEMA 1/3R |
| Mounting Type | : | Plug-On |
| Phase | : | 1 |
| Temperature Rating | : | 60 to 75 deg C |
| Type | : | Type CH Standard |
| Wire Size | : | (1) 14 to 8 AWG, (2) 14 to 10 AWG |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 30 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 1 |
| Trip Type | : | Thermal/Magnetic |
- Common trip requires (1) 3/4 in space
- Switching duty rated
- For 1-pole circuit breakers carry listing for HACR application
