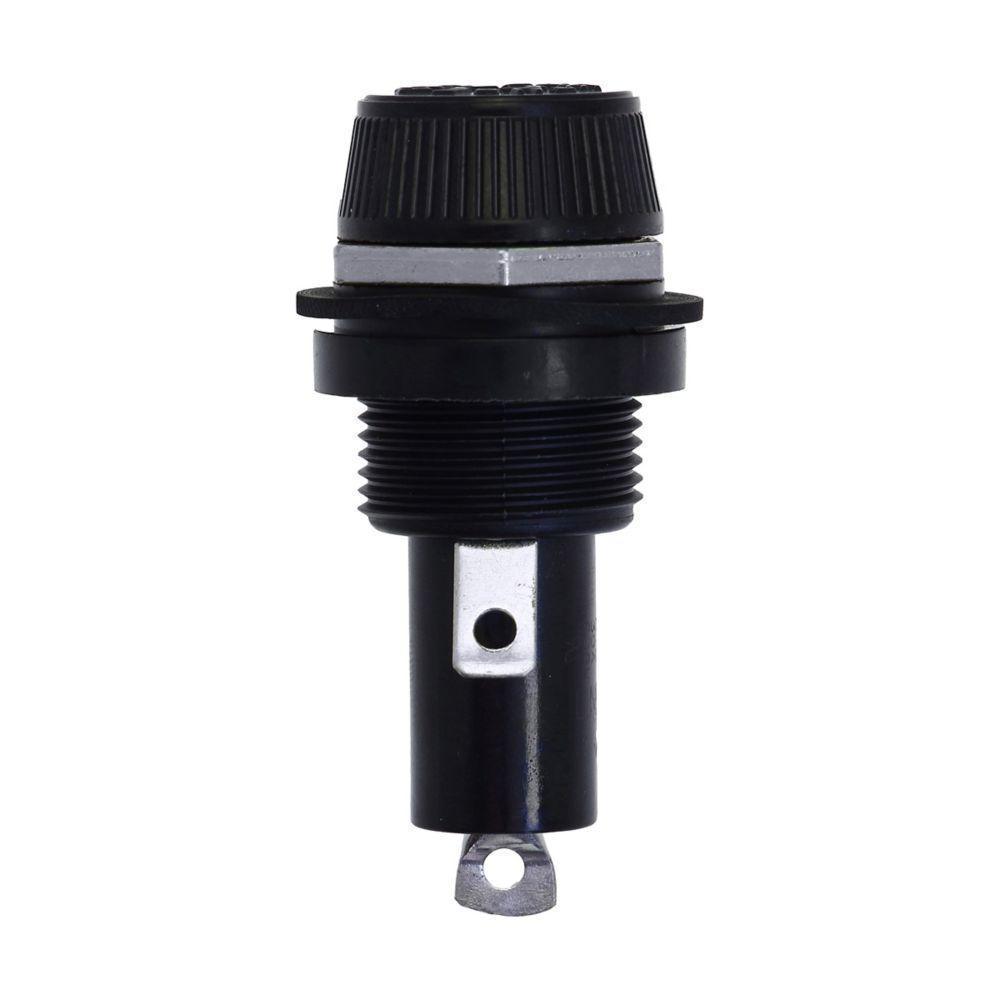

Bussmann Fuse Holder, Standard, 600 V, 30 A, 1/2 in Quick Connect Terminal, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, For Use With: 13/32 x 1-1/2 in Fuse, Black, 1.78 in Dia x 2.69 in L
| Color | : | Black |
| Connection Type | : | 1/2 in Quick Connect Terminal |
| Dimensions | : | 1.78 in Dia x 2.69 in L |
| Fuse Diameter | : | 13/32 in |
| Fuse Length | : | 1-1/2 in |
| Mounting Type | : | Panel |
| Suitable For Use With | : | 13/32 x 1-1/2 in Fuse |
| Type | : | Standard |
| Voltage Rating | : | 600 V |
| Amperage Rating | : | 30 A |
- 1-piece side terminal and threaded insert eliminates 2-piece solder fabrication
- Combination 1/2 in quick connect/solder terminals for versatility
- The HPF series functionally replaces the Bussman HPC series
- Do not put tension on line (rear) terminal of fuse holder
- Screw type knob
