Arlington 857A

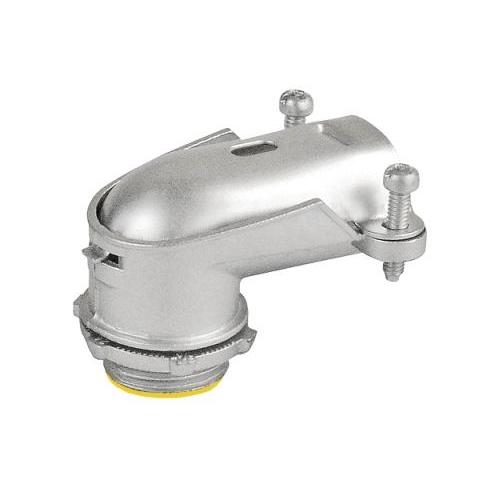

Arlington 857A 2-Screw Cable Connector, 2-1/2 in Trade, 2-1/2 in Knockout, 2.6 to 3.1 in Cable Openings, Die-Cast Zinc

  • Manufacturer Name: Arlington
  • MPN: 857A
  • Brand Name: Arlington
  • UPC: 018997085719
  • FEPN: 857A AR
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Arlington Cable Connector, 2-Screw, 2-1/2 in Trade, 2-1/2 in Knockout, Cable Openings: 2.6 to 3.1 in, Aluminum/Steel Cable, Screw Terminal Connection, 90 deg Angle, Die-Cast Zinc, Silver, 7.187 in L x 6.218 in W x 2.975 in H Dimensions

Angle       :      90 deg
Cable Type       :      Aluminum/Steel
Color       :      Silver
Connection Type       :      Screw Terminal
Dimensions       :      7.187 in L x 6.218 in W x 2.975 in H
Type       :      2-Screw
Trade Size       :      2-1/2 in
Knockout Size       :      2-1/2 in
Cable Openings       :      2.6 to 3.1 in
Material       :      Die-Cast Zinc
  • Concrete tight when taped
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_857A_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_857A_Specification_Sheet.pdf
