Arlington FB415
Send Print
  1. pin-int

Arlington FB415

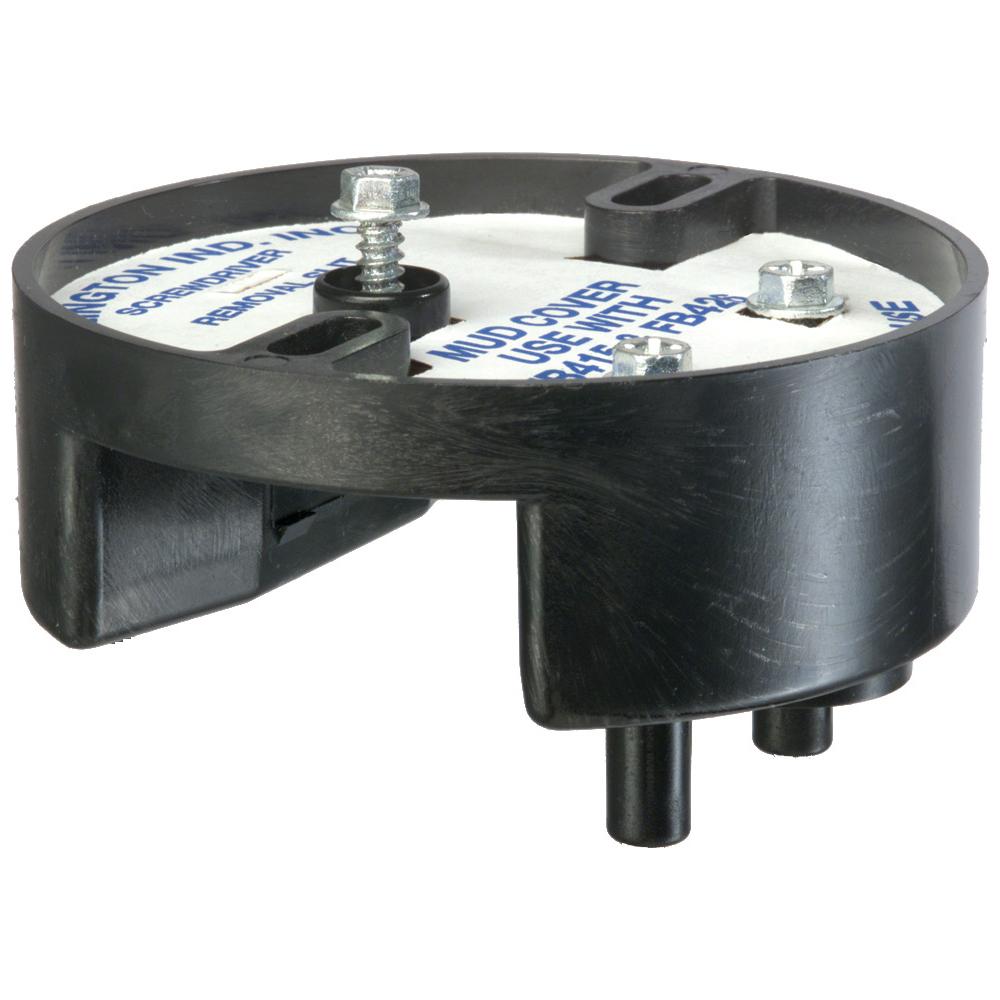

Arlington FB415 Fan/Fixture Mounting Box With Knockout, Plastic, 10.3 cu-in Capacity, 4-1/4 in L x 4-1/4 in W x 2-1/4 in H

  • Manufacturer Name: Arlington
  • MPN: FB415
  • Brand Name: Arlington
  • UPC: 018997721679
  • FEPN: FB415 AR
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Arlington FB415 fan fixture box saves time and money. And, it the fastest way to a super secure installation. The box presses onto the joist where gripping tangs hold it firmly in-place while you reach for your screwdriver. Tightening the shipped in place center screw (photo at left) attaches the box securely to the joist.

Arlington Fan/Fixture Mounting Box, Knockout Cable Entry, 4-1/4 in Diameter, Round Shape, Joist/Press-On Mounting, 10.3 cu-in Capacity, Plastic, Black, 4-1/4 in L x 4-1/4 in W x 2-1/4 in H Dimensions

Cable Entry Size       :      Knockout
Color       :      Black
Diameter       :      4-1/4 in
Mounting Type       :      Joist/Press-On
Shape       :      Round
Material       :      Plastic
Capacity       :      10.3 cu-in
Dimensions       :      4-1/4 in L x 4-1/4 in W x 2-1/4 in H
  • No loose parts to misplace totally self-contained
  • UL rated for 70 lb fan or 200 lb fixture and is CSA rated for 50 lb fan fixture
  • 2 hr fire rating
  • Fast and easy installation
  • Secure attachment to joist or rafter
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_FB415_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_FB415_Specification_Sheet.pdf
