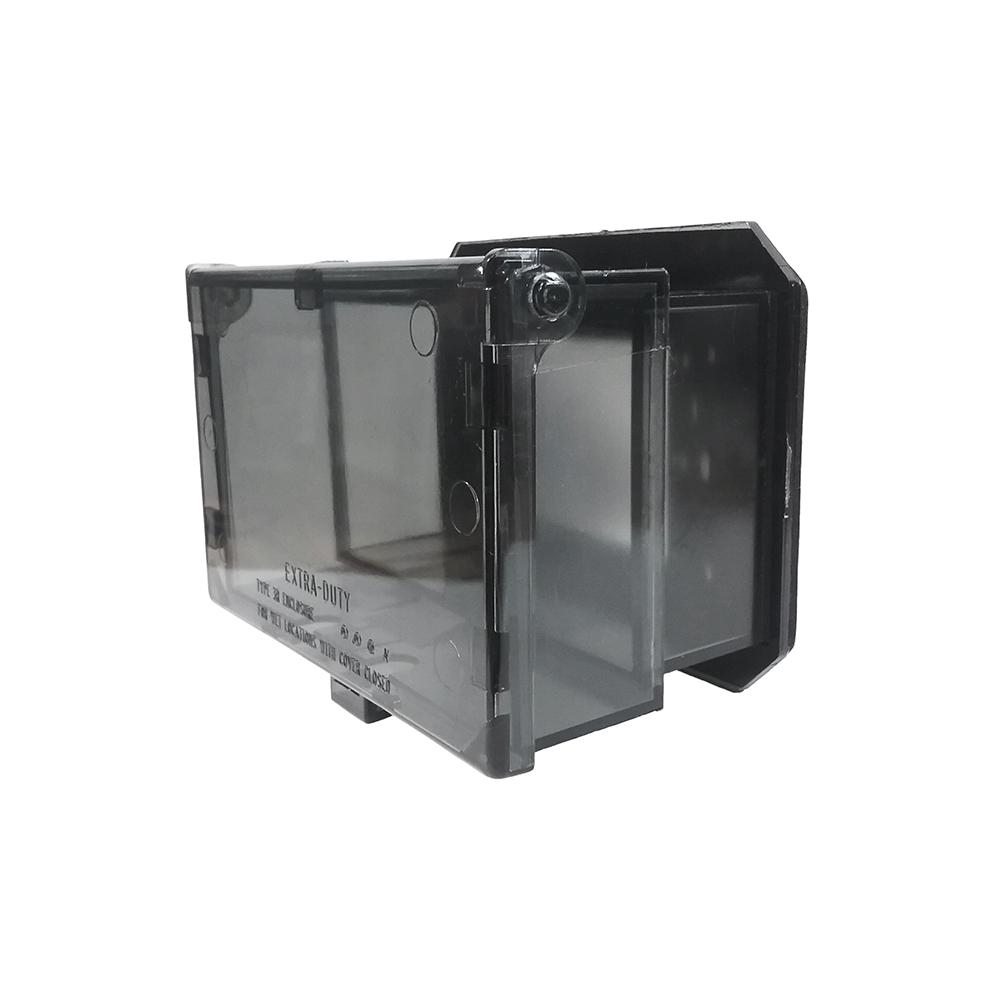

Arlington 61VC

Arlington IN-AND-OUT™ 61VC Collapsible Extra Duty Low Profile Weatherproof While-In-Use Cover, 4-1/4 in L x 5.56 in W x 1.67 in D, Receptacle Cover, Plastic

  • Manufacturer Name: Arlington
  • MPN: 61VC
  • Brand Name: Arlington
  • UPC: 018997006837
  • FEPN: 61VC AR
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Arlington IN-AND-OUT™ While-In-Use Cover, Collapsible Extra Duty Low Profile Weatherproof, 1 Gang, 4-1/4 in Length, 5.56 in Width, 1.67 in Depth, Rectangle Shape, Receptacle Cover, Vertical Mounting, Surface Mounting, Plastic, Painted/Textured, Clear

Color       :      Clear
Finish       :      Painted/Textured
Mounting Orientation       :      Vertical
Mounting Type       :      Surface
Number of Gangs       :      1
Shape       :      Rectangle
Type       :      Collapsible Extra Duty Low Profile Weatherproof
Length       :      4-1/4 in
Width       :      5.56 in
Depth       :      1.67 in
Cover Type       :      Receptacle
Material       :      Plastic
  • In position provides a sealed box to keep bugs out
  • Extends quickly and easily into the out position to accommodate a plug
  • Fits over all boxes or openings in new or existing projects
  • Cover is removable for easier device installation
  • Has UV rated plastic construction for durability
  • Has an installed oversized base for large openings or a 3-1/2 in round outlet box
  • Meets extra duty code requirements when cord is plugged in
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_60VC_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_60VC_Specification_Sheet.pdf
  • videoVIDEO LINK http://www.youtube.com/v/xHSqb3KWgH0
