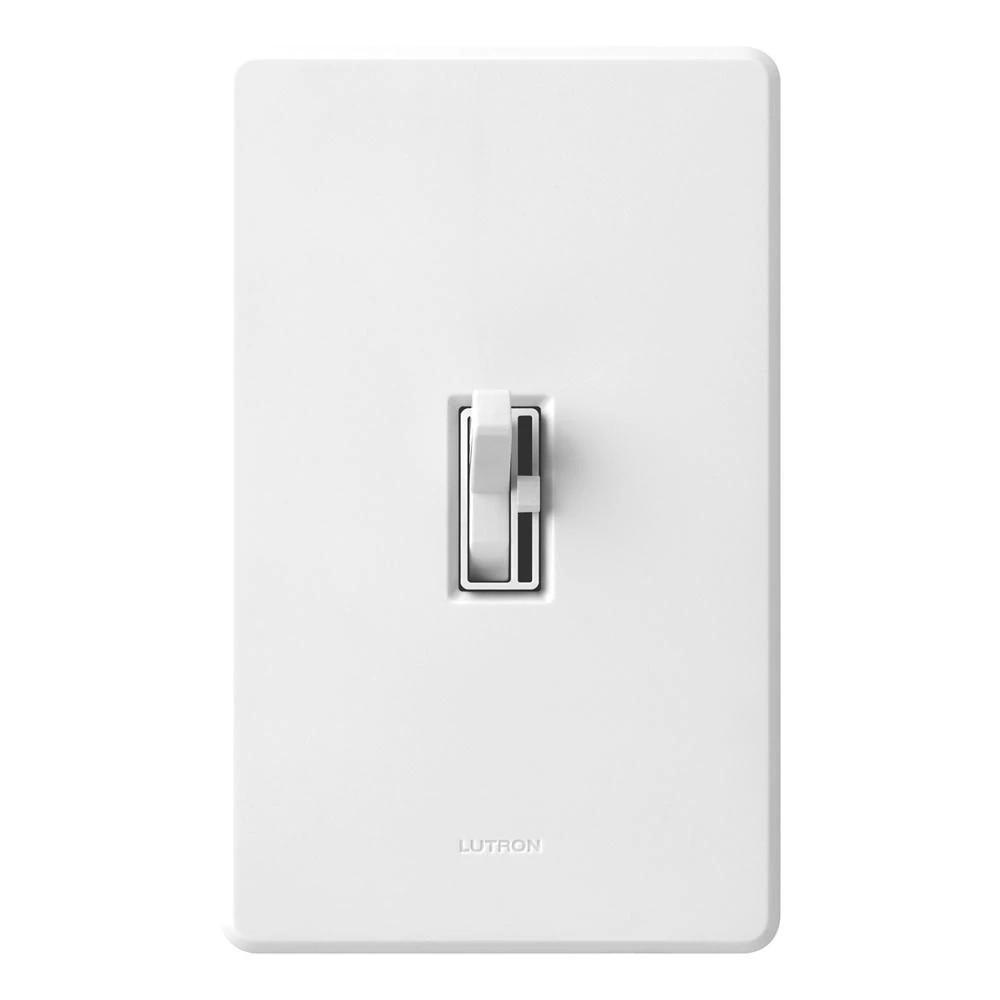

Ariadni® AYCL-153P-WH
Ariadni® AYCL-153P-WH Traditional 3-Way Circuit Dimmer Switch, 120 VAC, 1 Poles, Slide-to-Bright/Dim Operation, White
- Manufacturer Name: Lutron Electronics
- MPN: AYCL-153P-WH
- Brand Name: Ariadni®
- UPC: 027557825948
- FEPN: AYCL-153P-WH LU
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
These Lutron dimmers are designed to replace or match your traditional style switches. Save energy and extend bulb life with the Ariadnis easy-to-use toggle switch and small slide dimmer. Designed with a shallow 1-inch deep back cover for easy installation, Ariadni works with your existing traditional multi-gang wallplates.
Ariadni®, AYCL-153P-WH, Dimmer Switch, 3-Way Circuit, Series: Traditional, 120 VAC, 150/600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Toggle Control, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.6 in H x 2.86 in W x 0.23 in D Dimensions
| Control | : | Toggle |
| Dimensions | : | 4.6 in H x 2.86 in W x 0.23 in D |
| Frequency Rating | : | 60 Hz |
| Lamp Type | : | CFL/Halogen/Incandescent/LED |
| Material | : | Plastic |
| Mounting Type | : | Wall |
| Power Rating | : | 150/600 W |
| Series | : | Traditional |
| Start Type | : | Preset |
| Temperature Rating | : | 0 to 40 deg C |
| Terminal Type | : | Push-In/Screw |
| Type | : | 3-Way Circuit |
| Voltage Rating | : | 120 VAC |
| Number of Poles | : | 1 |
| Operation Mode | : | Slide-to-Bright/Dim |
| Color | : | White |
- Shallow 1 in deep back cover for easy installation
- Matching Fassada gloss wallplates available for 1-gang to 3-gang sizes
- Power failure memory
- Superior RFI suppression
- Lutron controls are rated at 120 VAC, 60 Hz unless otherwise noted
- The toggle style switch automatically returns to your favorite pre-selected light level and the C-L models with HED technology improve dimming performance of dimmable CFLs and LEDs compared to standard dimmers
- Wallplates not included, order separately
- HED technology advanced Lutron dimming circuitry designed for compatibility with most high efficacy light bulbs
- To control dimmable compact fluorescent load (CFL) with integrated ballast, dimmable LED with integrated driver, halogen, incandescent
- Low end adjustment to accommodate a wide range of bulbs
- 100 Percent factory tested
- Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming
- Provides over 250 lighting levels so you can create the perfect light for any activity
- Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
- Can be used in single-pole or 3-Way applications, where lights are controlled from one or two locations

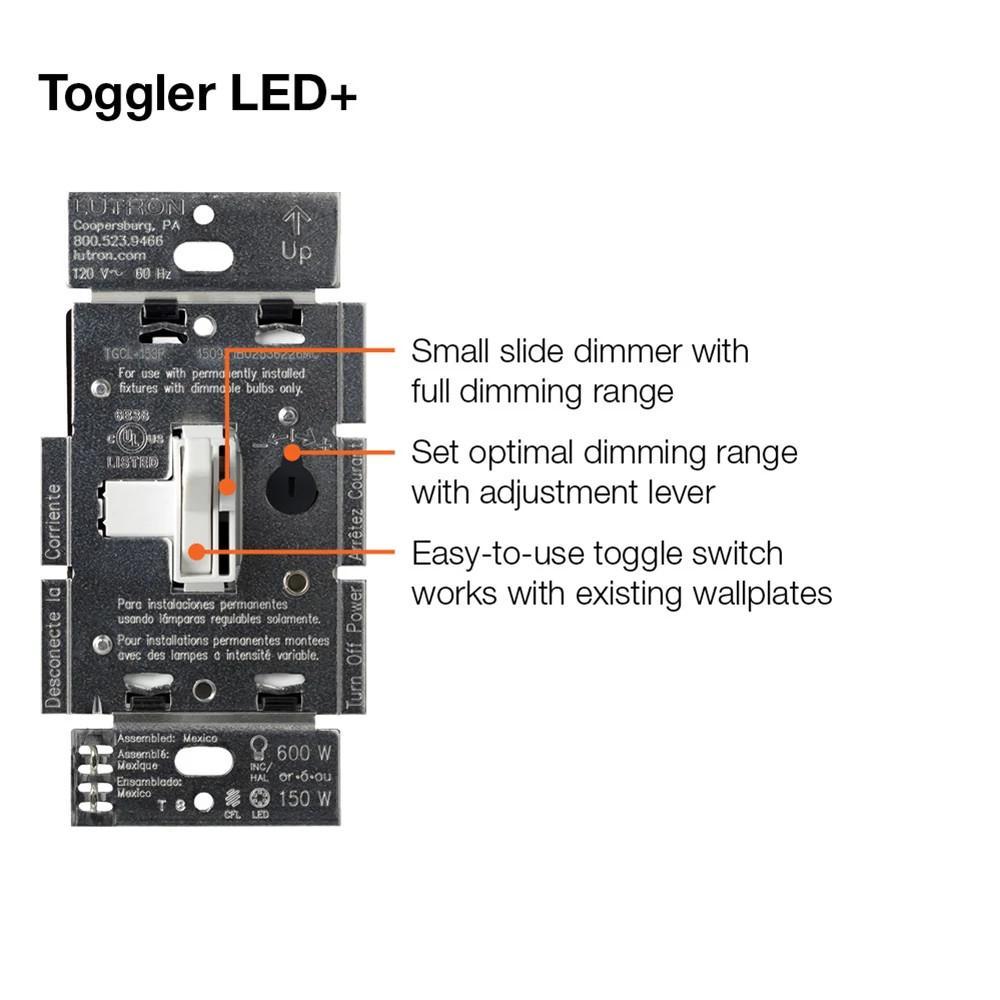

- Small slider dims and brightens the lights
Full Engineering Drawing
