Arlington 853A
Send Print
  1. pin-int

Arlington 853A

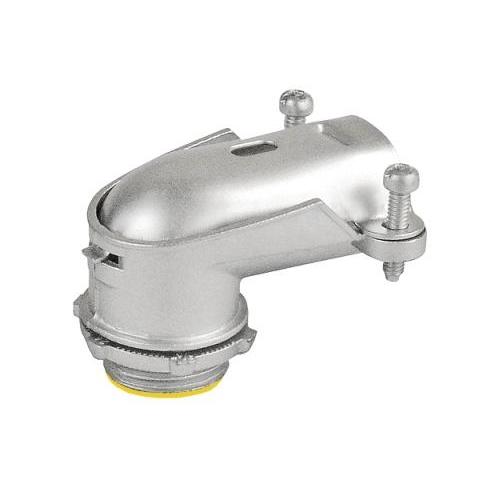

Arlington 853A 2-Screw Cable Connector With Insulated Throat, 1 in Trade, 1 in Knockout, 1.33 to 1.57 in Cable Openings, Die Cast Zinc

  • Manufacturer Name: Arlington
  • MPN: 853A
  • Brand Name: Arlington
  • UPC: 018997853103
  • FEPN: 853A AR
  • Min Order Qty: 1
  • Quantity Interval: 10
  • Inventory Availability loading loading

Arlington Cable Connector, 2-Screw, 1 in Trade, 1 in Knockout, Cable Openings: 1.33 to 1.57 in, Aluminum/Steel/Flex/AC/AC90/MC/MCI-A Cable, Threaded x Screw Connection, 90 deg Angle, Die Cast Zinc, Silver, 2.51 in L x 2.622 in W x 1.57 in H Dimensions

Angle       :      90 deg
Cable Type       :      Aluminum/Steel/Flex/AC/AC90/MC/MCI-A
Color       :      Silver
Connection Type       :      Threaded x Screw
Dimensions       :      2.51 in L x 2.622 in W x 1.57 in H
Type       :      2-Screw
Trade Size       :      1 in
Knockout Size       :      1 in
Cable Openings       :      1.33 to 1.57 in
Material       :      Die Cast Zinc
  • Concretetight when taped
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_314S_Warranty.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_850A_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Arlington_853A_Specification_Sheet.pdf
